LEFT pEDAL BELT rEmovAL
Tools Required: * Phillips screwdriver * 3/16” Allen Hex *1/2” Wrench
SPECIFICATIONS
rIghT ASSEmBLy LInk rEpLAcEmEnT
Follow the steps in the “Left Assembly link Replacement” section, but for the right assembly link
#A5352.
SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
Remove the console and lower/upper covers according to the “Lower/Upper Cover Removal” process.

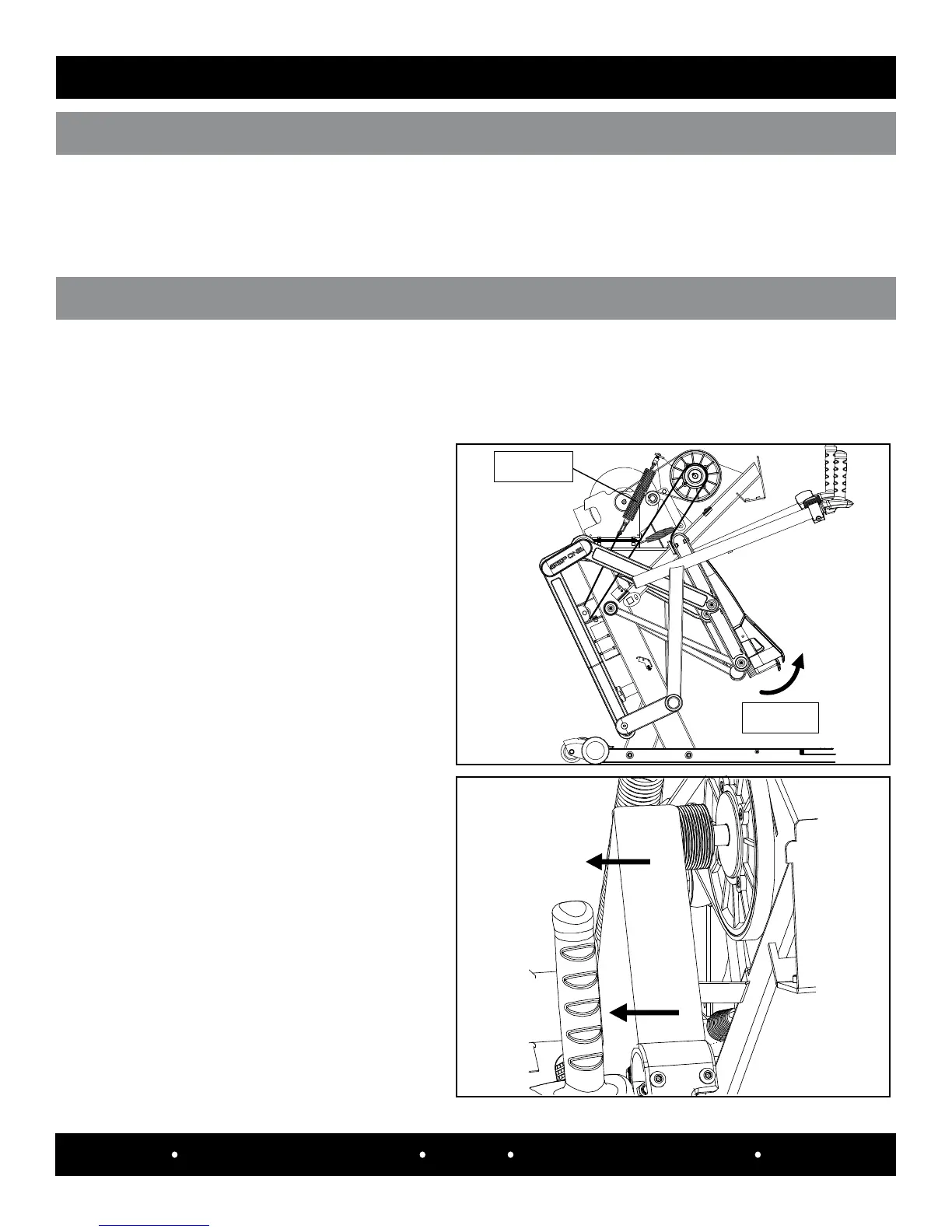

Step 1:
While holding the pedal up remove the
pedal belt (#A5164) from the clutch pulley,
then gently let the pedal down to a resting
position.
Belt
Step 2:
Lift the left pedal to relieve the tension on
the return spring.
Step 3:
Spring tension
will be less
Lift left
pedal upward
