SCIFIT STEP ONE - Pivot Blade

SPECIFICATIONS
MECHANICAL PARTS REMOVAL/REPLACEMENT
22
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT
3/8” Allen Hex
5/8” Wrench

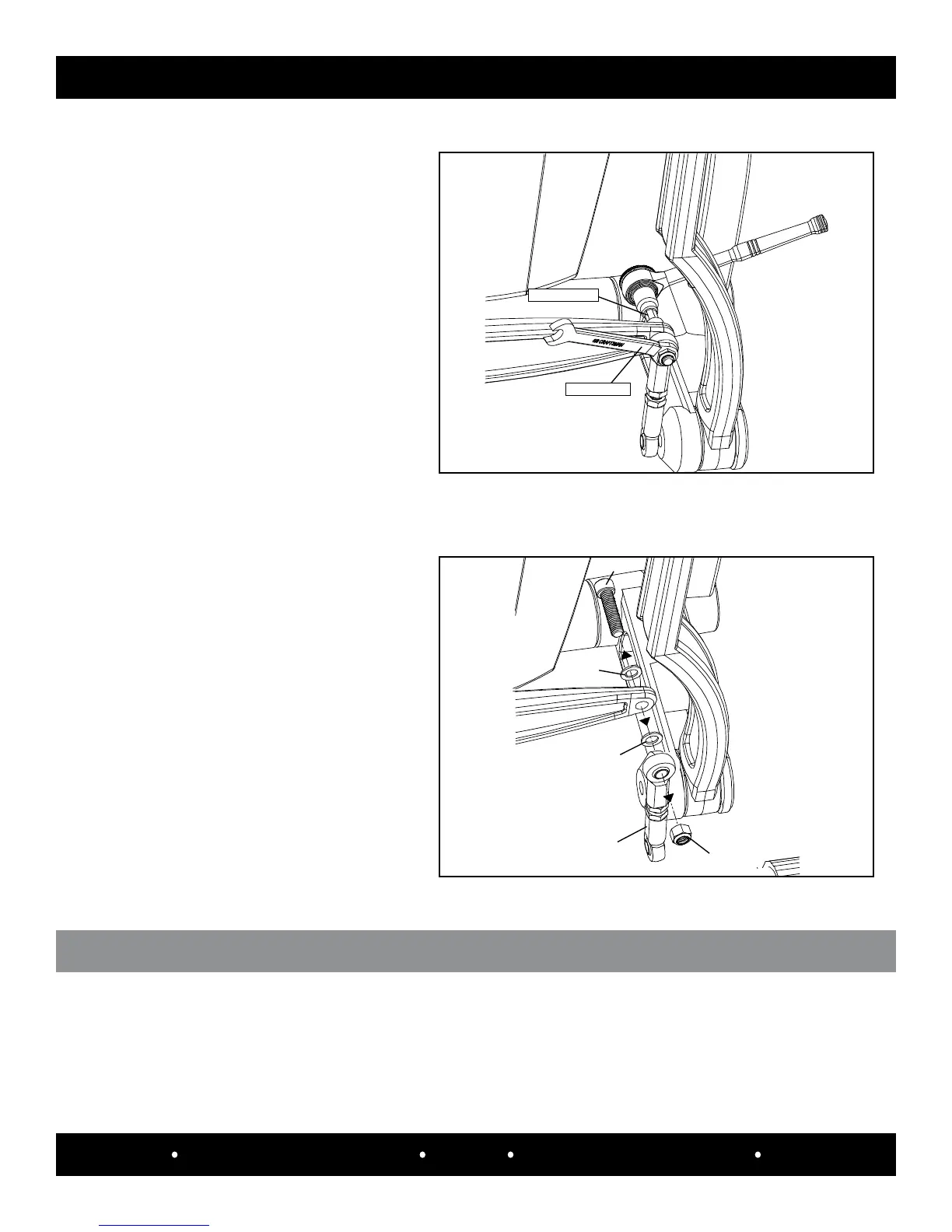

Step 3:
Use a 3/8” allen hex bit and 5/8” wrench
to remove the nut from the top end of the
pivot blade.
Step 4:
Remove the securing hardware
(A) 7/16-17 x 1 3/4” black socket head
screw (#10537-08100), (B) two washers
(#10537-03641), (C) pivot link (#A5474)
and (D) nylock nut (#1137027).
(A)
(B)
(B)
(C)
(D)
Follow the steps in the “Left Pivot Link Removal” section for the right pivot link #A5474.
SPECIFICATIONS
rIghT pIvoT LInk rEmovAL
