LEFT pIvoT LInk rEpLAcEmEnT
Tools Required: * 1/4” Allen Hex * Ratchet * 3/8” Allen Hex * 5/8” Wrench
* Torque wrench with range above 720 in/lbs * 5/8” Socket
Washer between
the pivot blade
and the Pivot link
Washer between
the pivot blade
and the screw

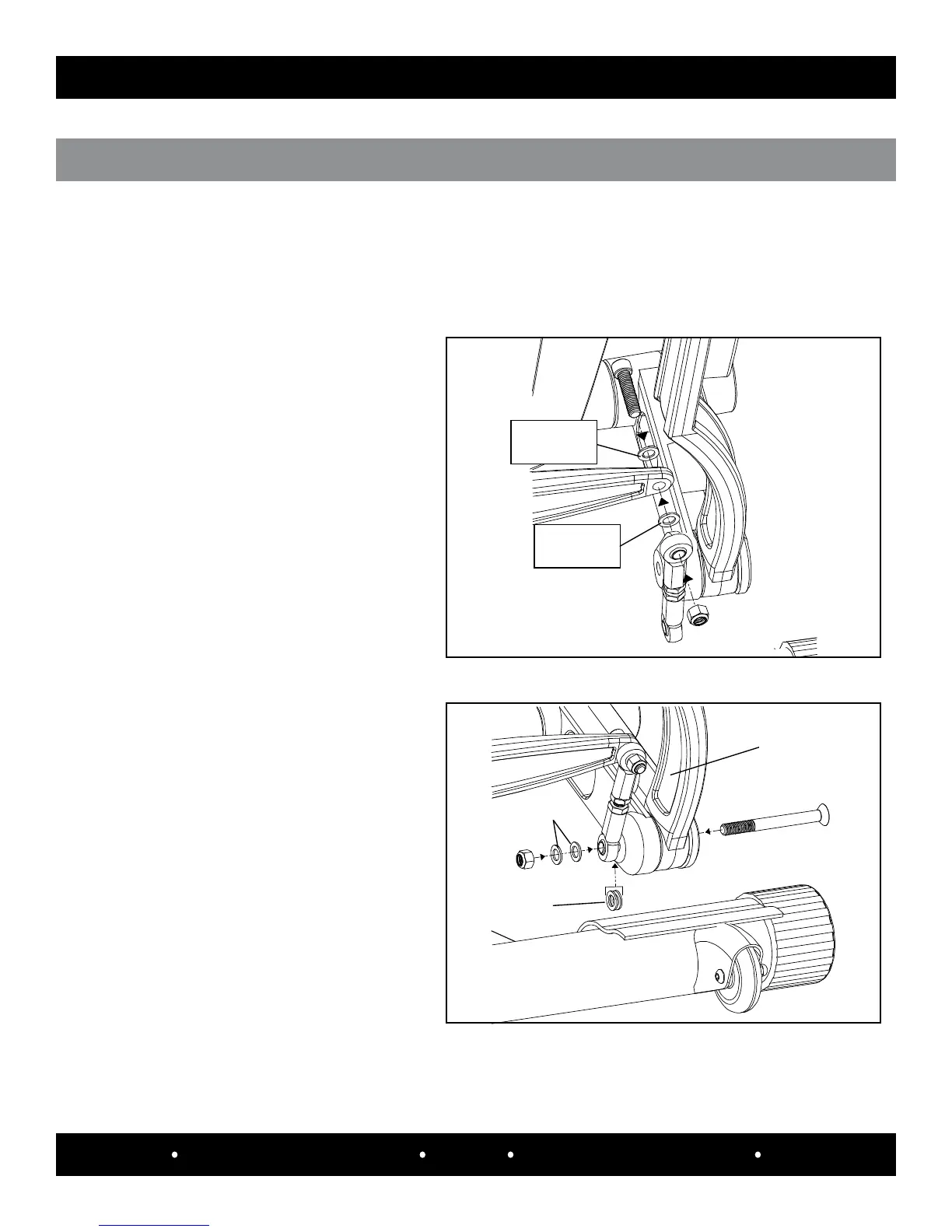

Step 1:
Loosely attach the new pivot link to the
pivot blade with the hardware previously
removed as shown in the diagram.
Note: Verify the washers are placed in
the correct location.
Step 2:
Between the
pivot link and
lower outer
handle assembly
Outside the
pivot link
Assembly
link
Align the assembly link and the pivot
link with the bottom holes of the outer
handle and loosely secure them with
the h ardware previously removed.
Note: Verify the washers are placed in
the correct location.
