MECHANICAL PARTS REMOVAL/REPLACEMENT
52
SCIFIT Scientic Solutions For Fitness SCIFIT Scientic Solutions For Fitness SCIFIT

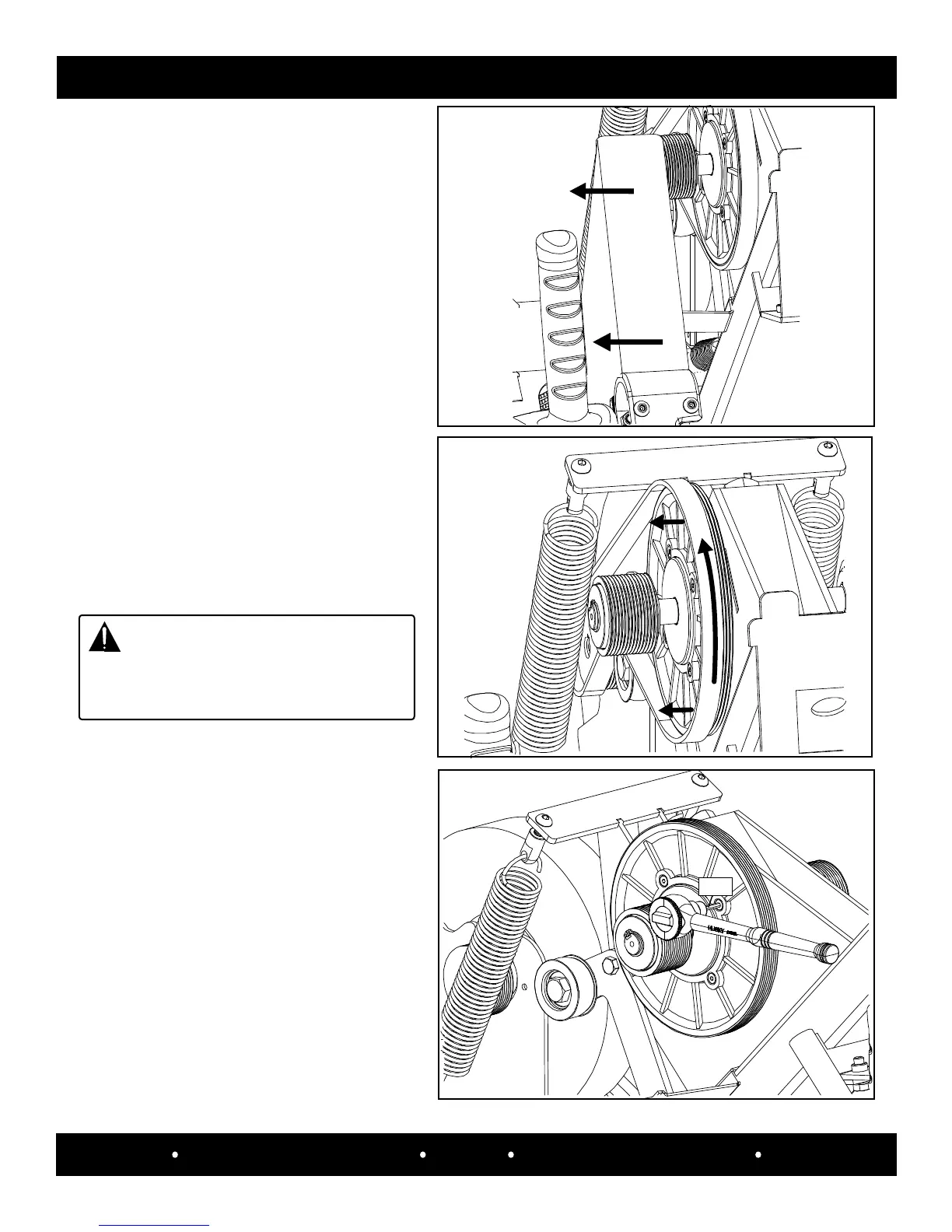

While holding the pedal up remove the
pedal belt (#A5164) from the clutch pulley,
then gently let the pedal down to a resting
position.
Belt
Step 3:
Step 4:
Carefully walk the drive belt (#P5166)
off the large pulley turning in a
counterclockwise direction.
ATTENTION
Pinching points may occur when removing
the belt, please use caution.
Step 5:
Use a 3mm Allen hex to remove the
four M5 x 18mm at head socket screws
(#0141378) .
3mm Allen
hex
To Next Page
