6.1B STRIPPER ADJUSTMENT
⌦
CAUTION: TO PREVENT PUNCH BREAKAGE ON THE RETURN STROKE, THE
STRIPPER MUST BE ADJUSTED SO THAT THE BOTTOM OF THE STRIPPER IS
PARALLEL WITH THE MATERIAL BEING PUNCHED.
REFER TO FIGURE 10 BELOW.
TO ADJUST THE STRIPPER:
1. The height of the stripper is adjusted using the adjustment bolts (A & B).
2. The stripper is opened by pushing up on item (C) and swinging it out toward the front of the
machine.
3. If you are punching light material or pieces too small to contact both sides of the stripper, install
the plate (D) on the bottom of the stripper.
4. For maximum visibility and safety, always adjust the stripper down as close to the material as
possible.

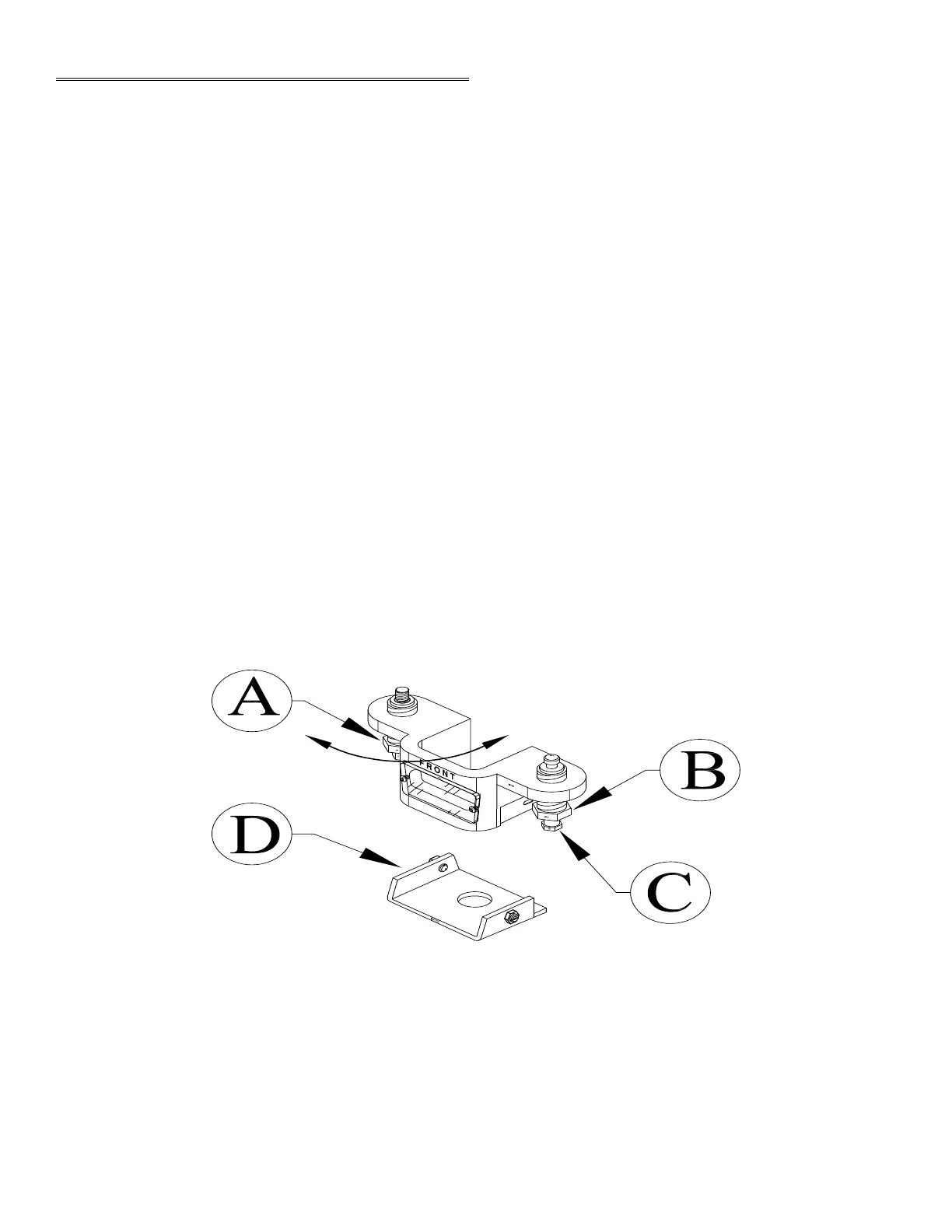

FIGURE 10
