Page 82

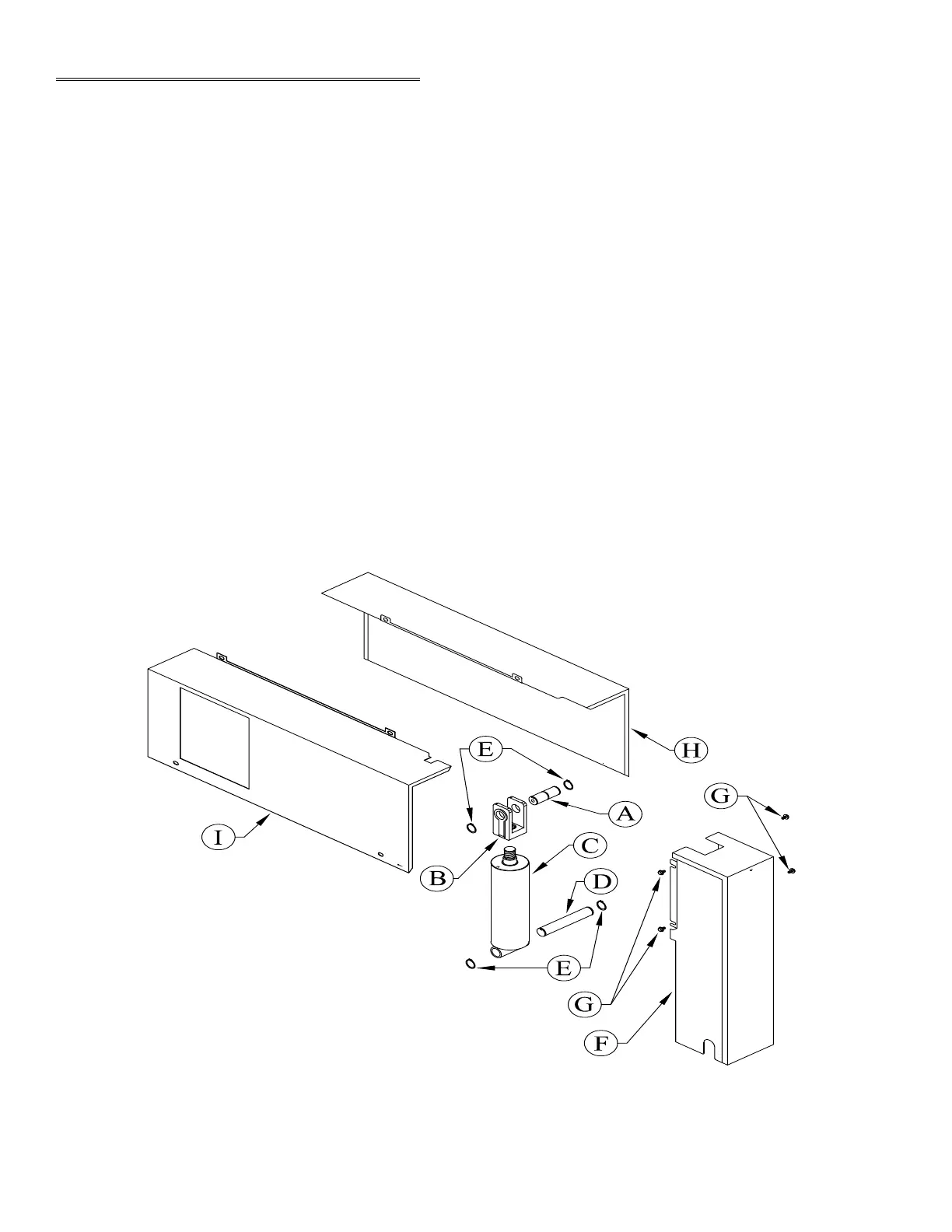

9.7 CYLINDER ASSEMBLY
ITEM PART # DESCRIPTION
A 006230 Clevis Pin
B 007403 Cylinder Clevis
C 007404 Cylinder
D 007426 Cylinder Anchor Pin
E 016063 1-1/2" Snap Ring
F 006241 Cylinder Shroud
G 224205 M-10 WLCS
H 007162 Rear Shroud - Ser. # 7604 & Prior
H1 006290 Rear Shroud - Ser. # 7605 & Up
I 007152 Front Shroud - Ser. # 7604 & Prior
I1 006285 Front Shroud - Ser. # 7605 & Up
J 007401 Cylinder Seal Kit (Not Pictured)
FIGURE 36
