Scotchman 6509-24FF - Machine Operation; Punch Operation

Page 24
6.0 MACHINE OPERATION
6.1 PUNCH OPERATION

ALWAYS WEAR SAFETY GLASSES.

THE FIRST AND MOST IMPORTANT PROCEDURE IS THE PROPER METHOD OF
CHANGING AND ALIGNING PUNCHES AND DIES.

NOTE: If you are using the optional urethane stripper, please refer to Section 7.13 for additional
instructions.

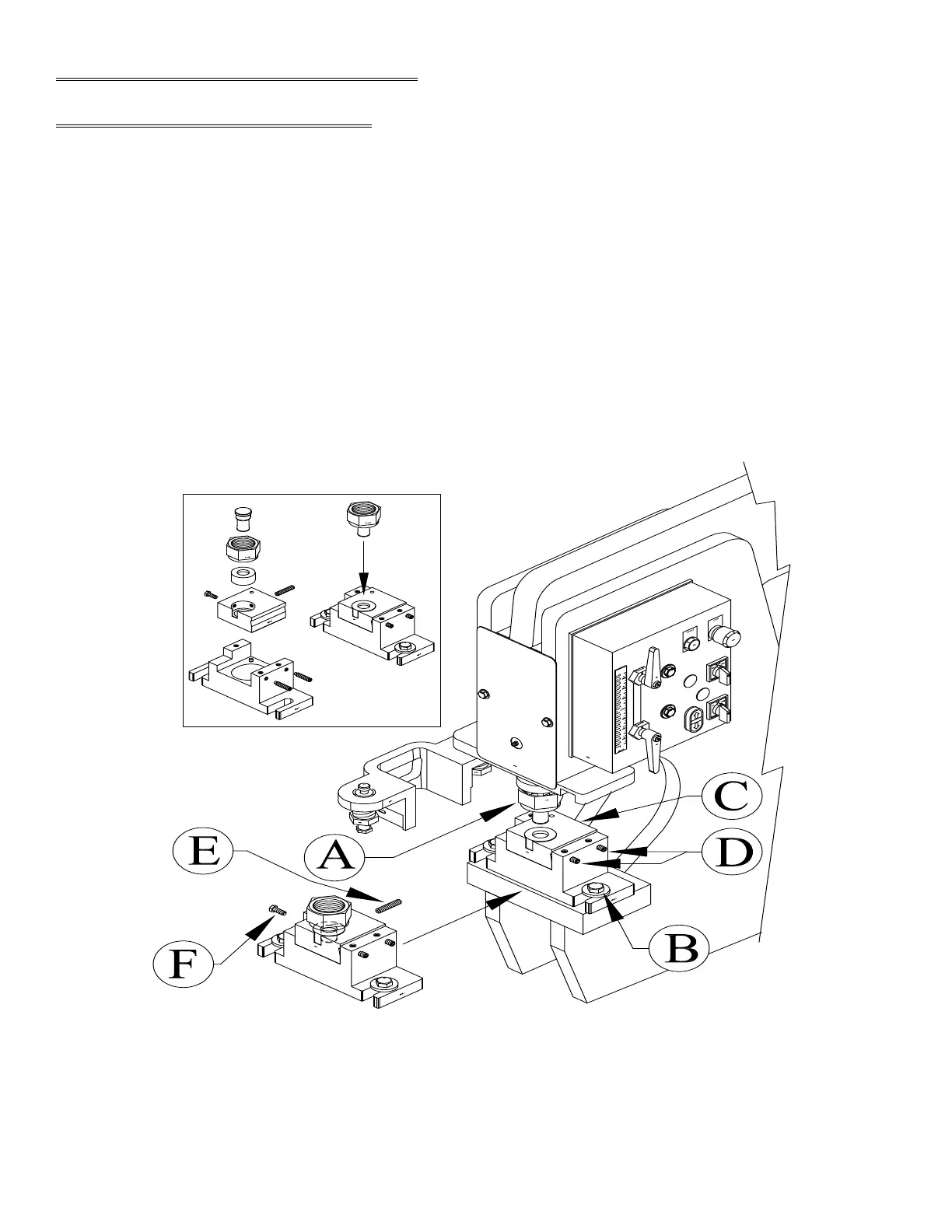

FIGURE 8
