Page 45
7.4B RECTANGLE NOTCHER OPERATION
⌦
CAUTION: BEFORE OPERATING THIS TOOL, THE DOWNSTROKE OF THE MACHINE
MUST BE SET SO THAT THE FRONT OF THE TOP BLADE JUST PASSES THE LOWER
BLADES, APPROXIMATELY 1/8 OF AN INCH (1.5MM). FAILURE TO SET THE STROKE
WILL RESULT IN DAMAGE TO THE TOOL AND POSSIBLE INJURY TO THE
OPERATOR. LUBRICATE THE BLADES BEFORE THE FIRST CUT AND EVERY 10-15
CUTS, THEREAFTER. THE MAXIMUM MATERIAL THICKNESS THAT CAN BE
SHEARED IS 3/8 OF AN INCH (9.5MM).
ALWAYS REMOVE THIS TOOL WHEN IT IS NOT IN USE.

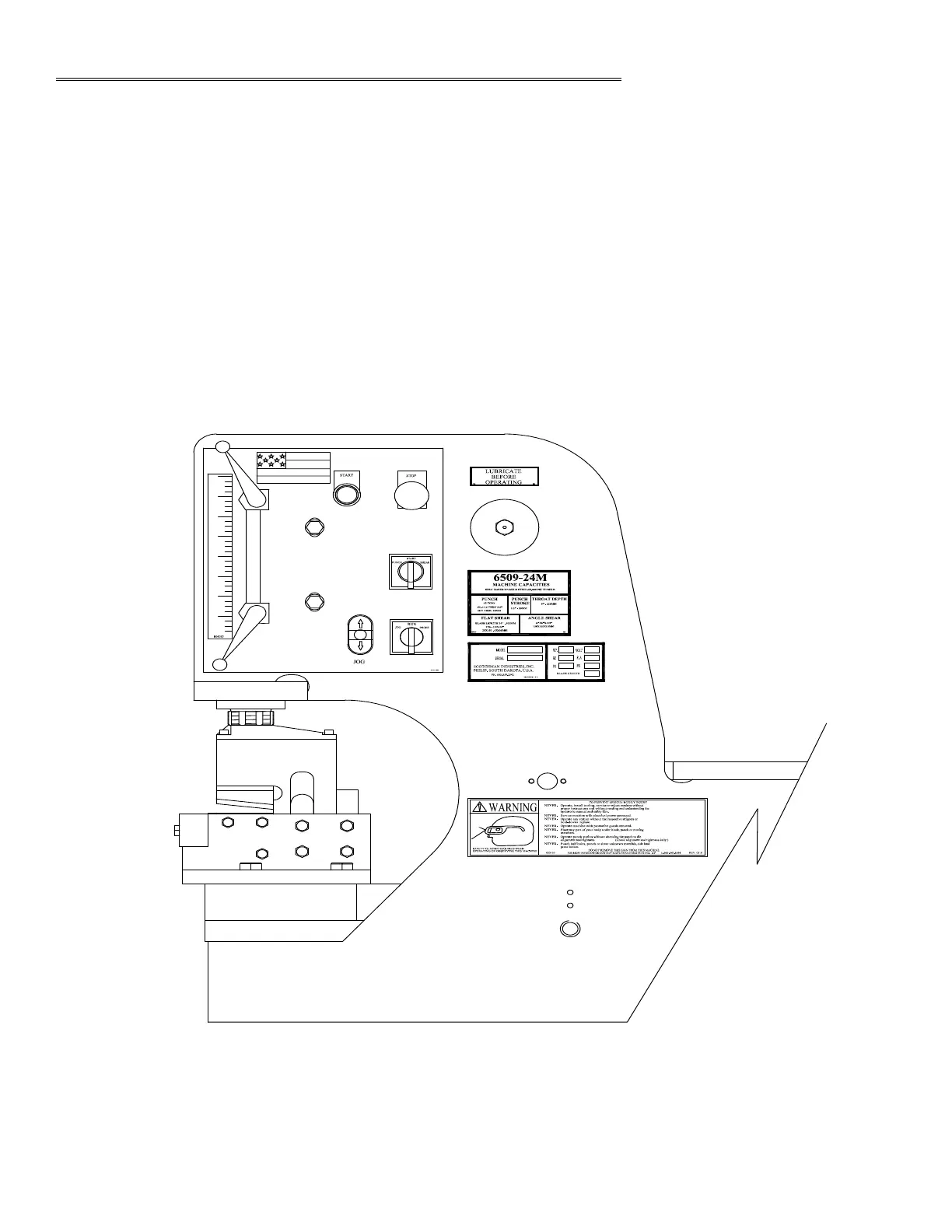

FIGURE 17
