Repair Section
Harvest Assist Solenoid / Mechanism
1 Remove front panel.
2 Push and release Manual Harvest button
3 Disconnect electrical supply
4 Remove sound shield (when used).
5 Unplug wires from solenoid or mechanism.
6 Remove screws and solenoid or mechanism from
cabinet
7 Reverse to reassemble.
Note: Solenoid replaced by mechanism beginning in
2013. Solenoid prior to 2010 may be eligible for recall.
See www.scotsman-ice.com for details
Electrical Shock Hazard
Disconnect electrical
power before beginning

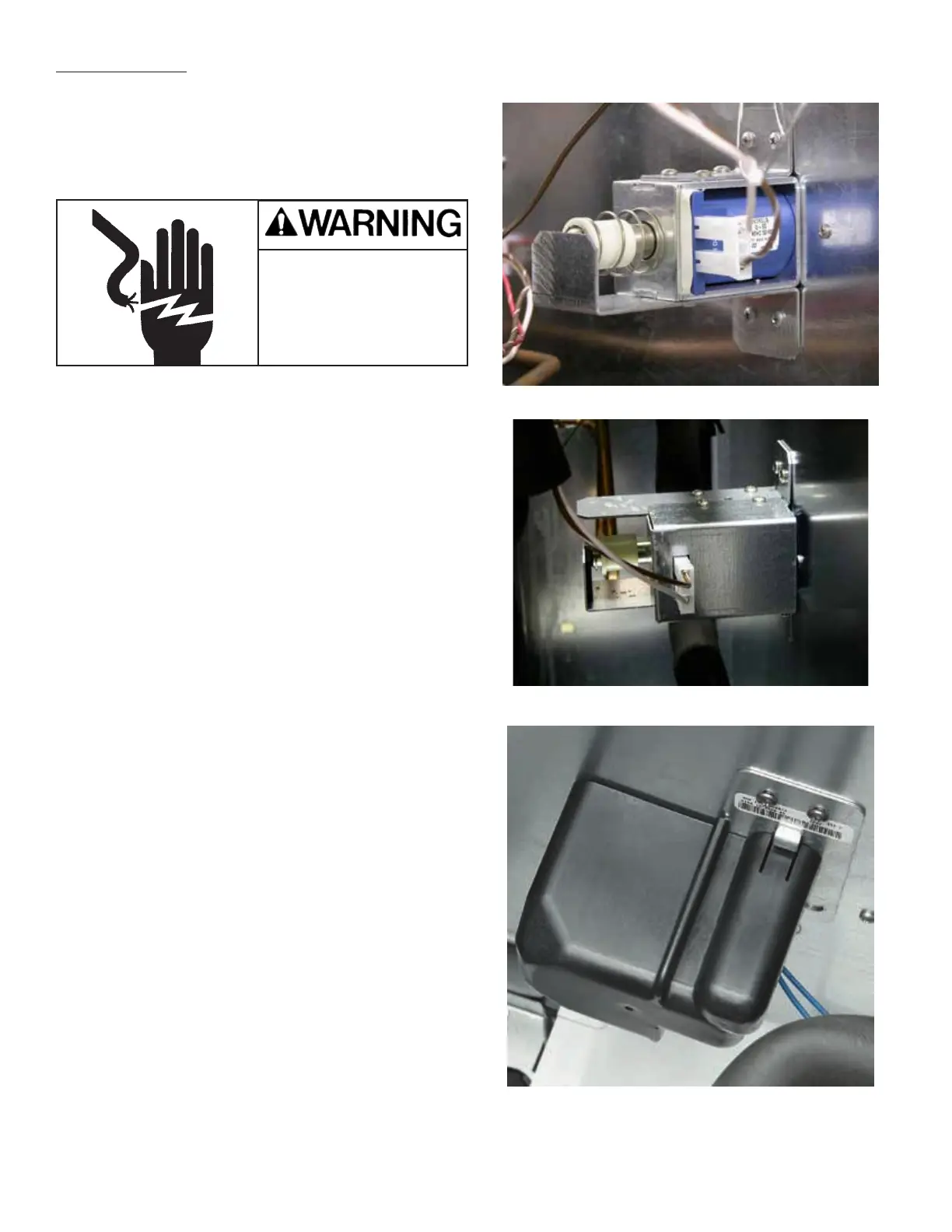

Original Harvest Assist Solenoid
2010 and later Harvest Assist Solenoid
Harvest Assist Mechanism, use began 2013
