January 2015 Page 95
Repair Section
Capacitor (run)
1. Disconnect electrical power.
2. Remove front panel.

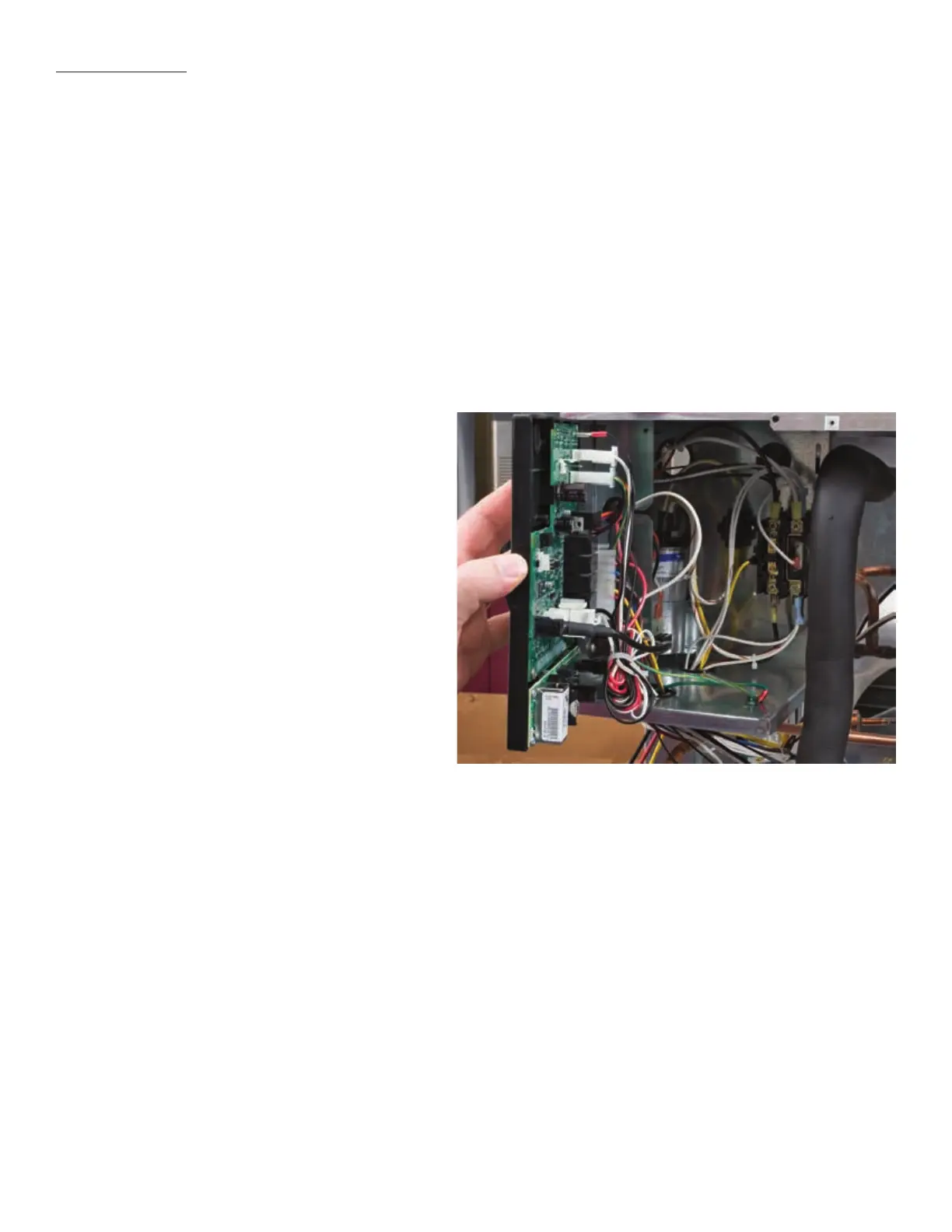

3. Open control box cover.
4. Remove right side of control box.
5. Remove metal barrier from control box
6. Remove screw holding strap to back of the control box.
7. Remove wires from capacitor
8. Connect wires to new capacitor, refer to wiring diagram as needed.
9. Reverse to reassemble.
Contactor
1. Disconnect electrical power.
2. Remove front panel.
3. Open control box cover.
4. Remove right side of control box.
5. Remove metal barrier from control box
6. Remove mounting screws holding contactor to
control box.
7. Exchange wires from old controller to new. Refer
to wiring diagram as needed.
8. Reverse to reassemble.
