January 2015 Page 99
Repair Section

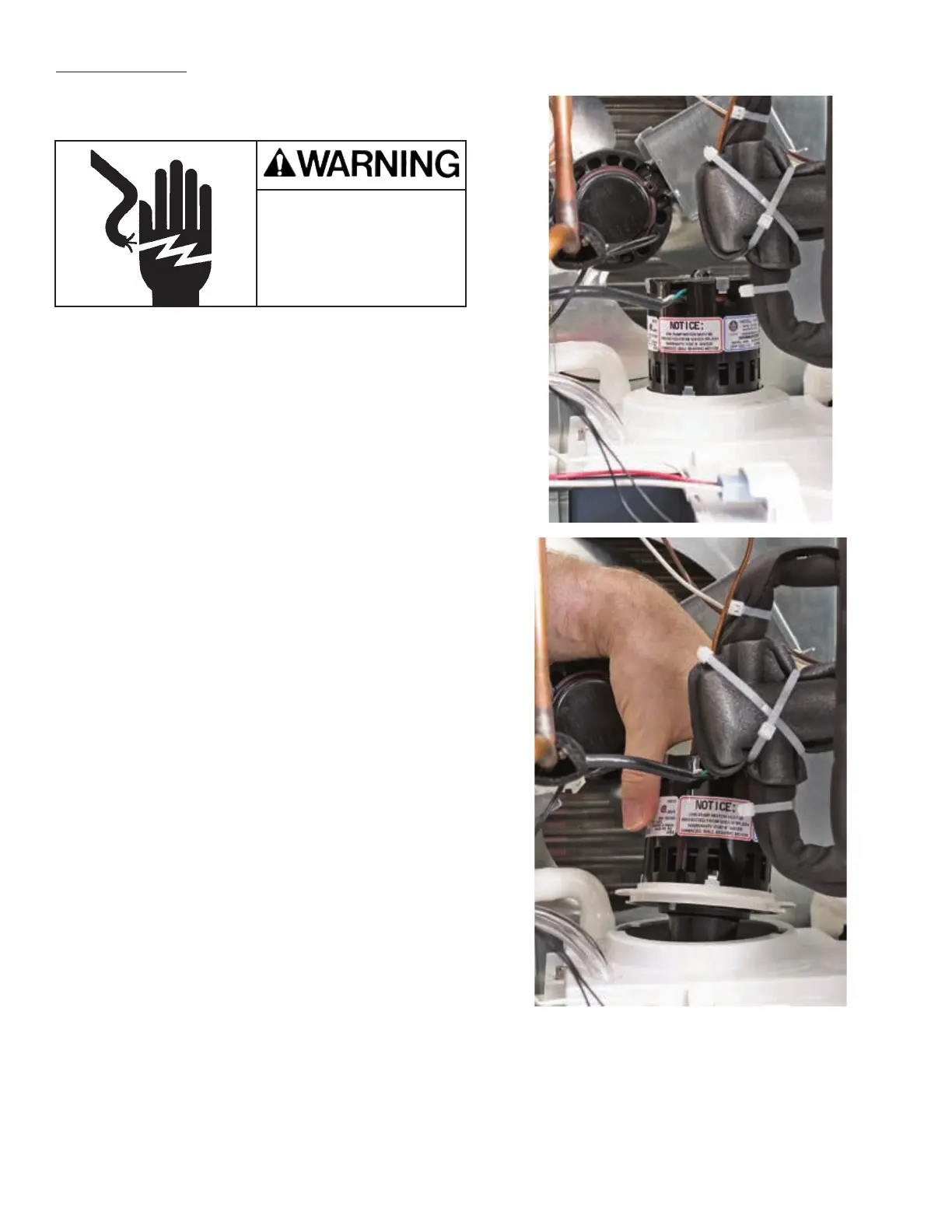

Water pump
1 Push and hold the Off button until the machine shuts off.
2 Remove the front panel.
3 Remove the sound shield.
4 Unplug the water pump
5 Rotate the pump CCW about 1/8 turn to release it.
6 Lift pump up and remove hose
7 Attach hose to new pump
8 Install in pump bracket.
9 Rotate CW about 1/8 turn to lock it in place.
10 Plug pump into harness
11 Return panels to their original positions and secure
with the original screws.
12 Push and release the ON button to restart the
machine.
Electrical Shock Hazard
Disconnect electrical
power before beginning
