Minimum clearance
The protection degree of the modules is IP20, and they need to be installed inside boxes or cabinets.

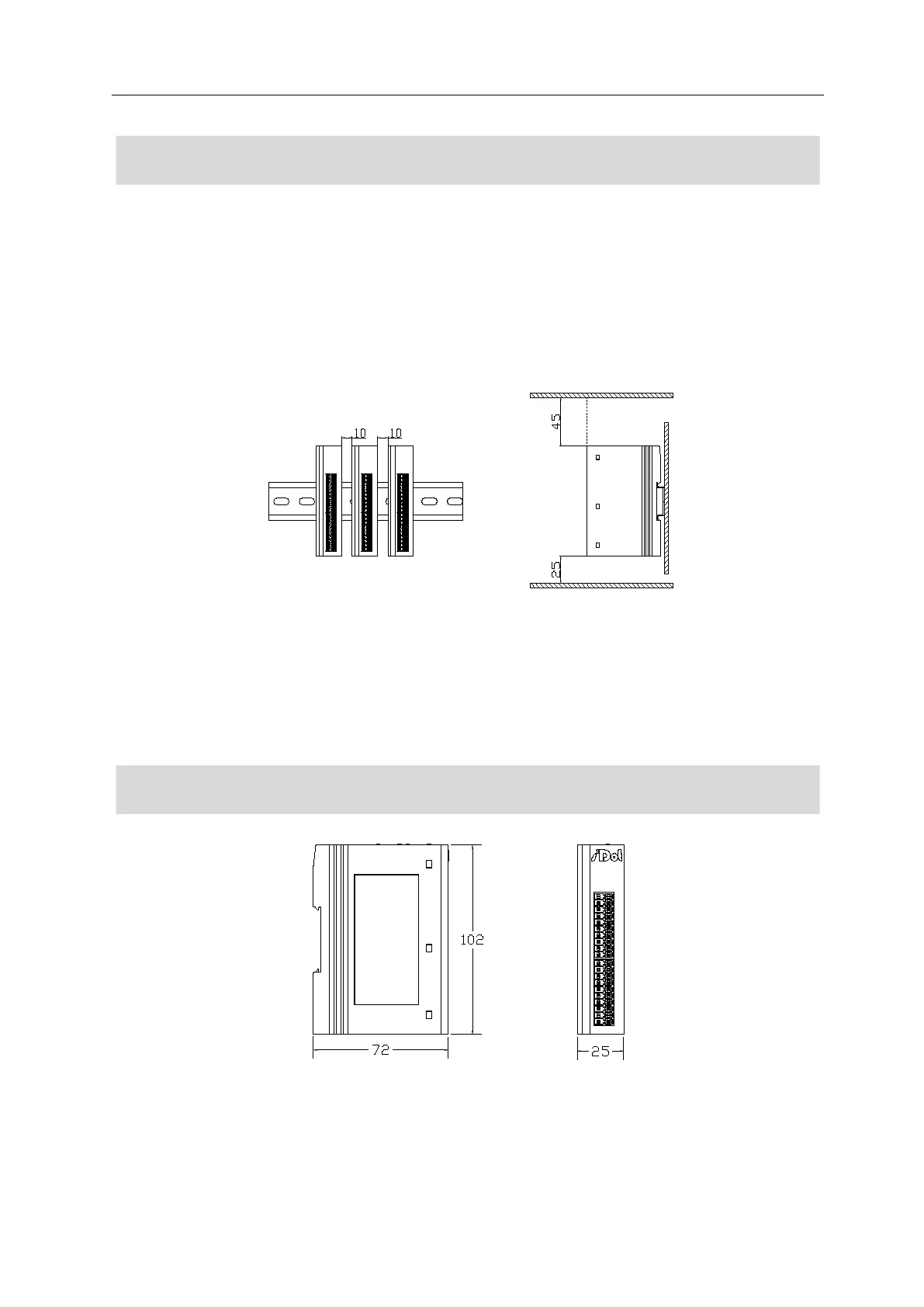

During installation, please follow the minimum distances (unit: mm) shown in the following figures
between modules and those between modules and heating devices, other devices, or wiring slots.
5.1Dimensions
Dimension specification (in mm)
Install:
1. Up and down alignment;
2. DIN 35 mm Guide rail, buckle type installation.
