7.2.2 Application in CODESYS V3.5 software environment
1、 dead work

hardware environment

Module model E C4-A 80V

One computer, pre-installed with CODESYS V3.5 software

Ether CAT Special shielding cable

Switch power supply

Module installation of guide rail and guide rail fixings

Device configuration file
Profile acquisition address:https://www.solidotech.com/documents/configfile

Hardware configuration and wiring
Please follow the"5 Installation and wiring"And"6 The wiring"Requires the operation
2、 Install the profile
a. Log in to the CODESYS.
b. Select the Tools-> Device Repository item.
c. Click Install to select the E th erCAT XML device description file (Solidot EC4_V1.1.7.xml).

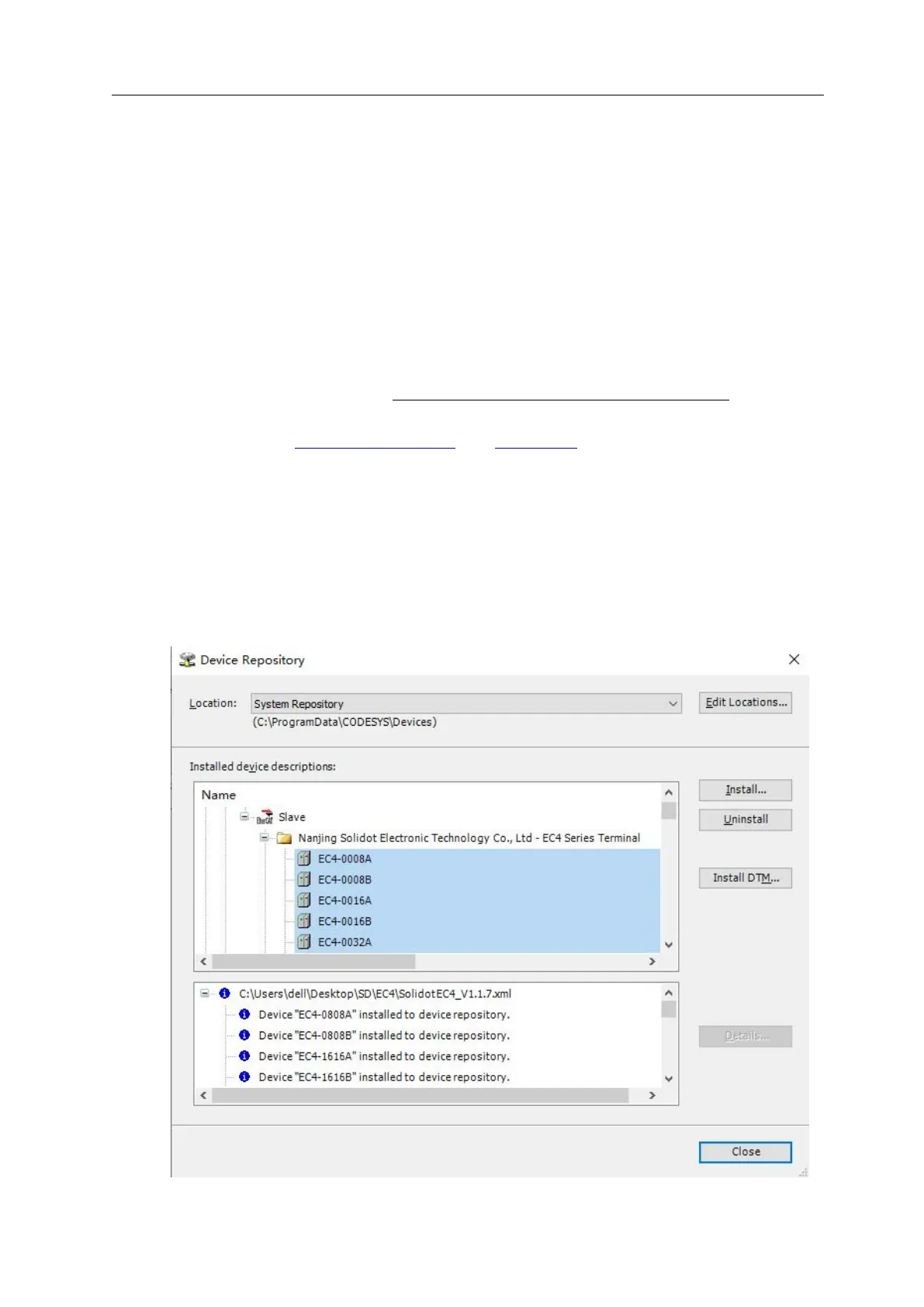

Successfully installation with "Device xxxx installed to device repository" as shown in the following
figure.
