5.2Installation and disassembly

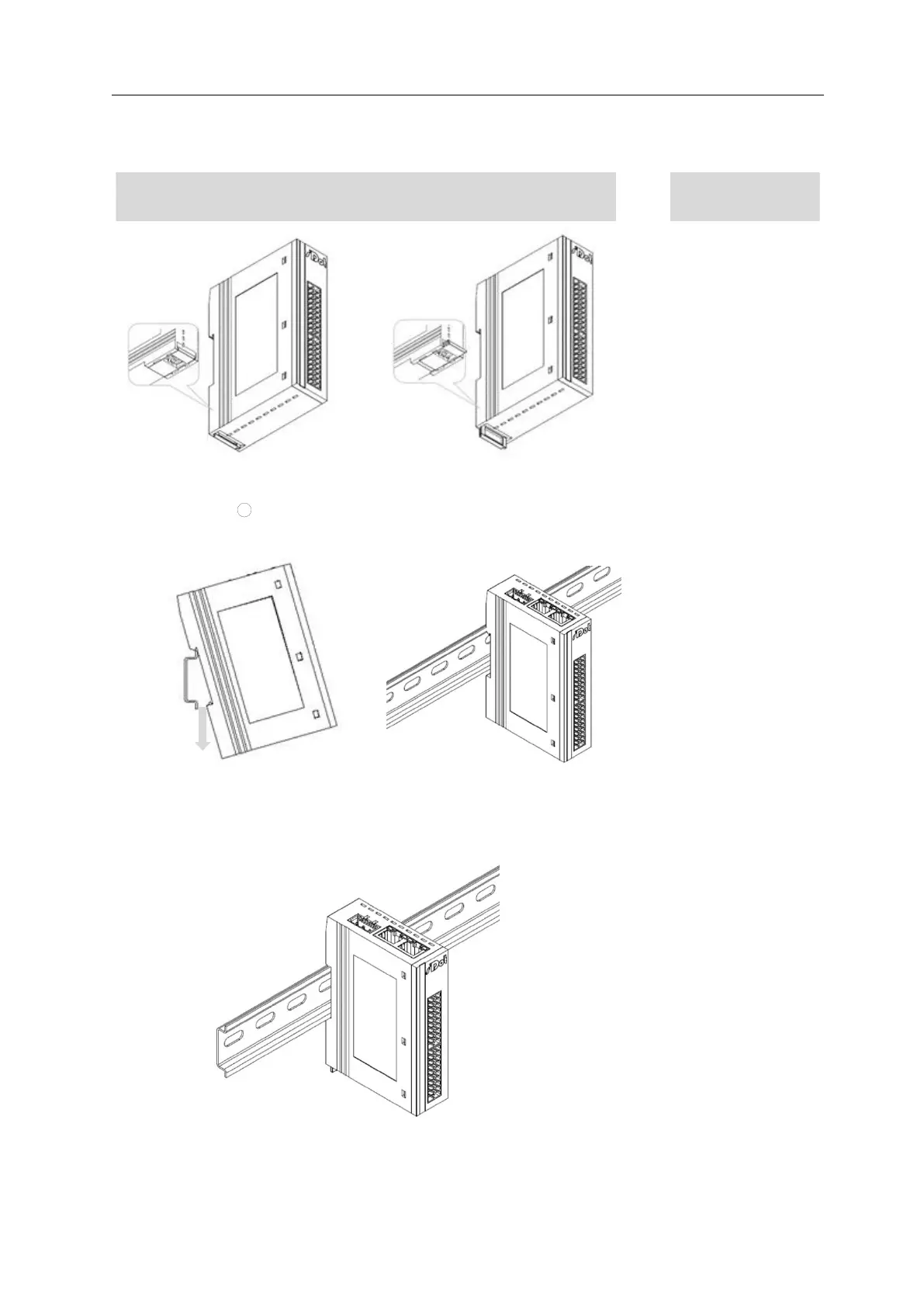

Push the buckle at the bottom
of the module outward, push
the buckle to Figure ① ②, and
hear the "click" sound.
1
②
The upper edge of the
module buckle is aligned
with the upper edge of the
guide rail and put the
module into the guide rail
as shown in Figure ③ and
④.
③ ④
The module placement is shown in Figure ⑤.
⑤
