7.1.4 Analog filtering parameter configuration function
●
Analog quantity input filter function
Analog input filtering function, the A / D transformed data can be averaged internally, used to
reduce the fluctuation of the input pointsignal due to noise.
The analog quantity input is processed on a moving average with the specified A / D
conversion times.
●
Filter function configuration
Each channel can be configured separately, configuration range: 1~1024; default 10;
The sampling rate of 8-channel module is: 1.25 KHZ / 8 channel (800us / 8 channel);
The sampling rate of 4-channel module is: 2.5 KHZ / 4 channel (400us / 4 channel).
●
collocation

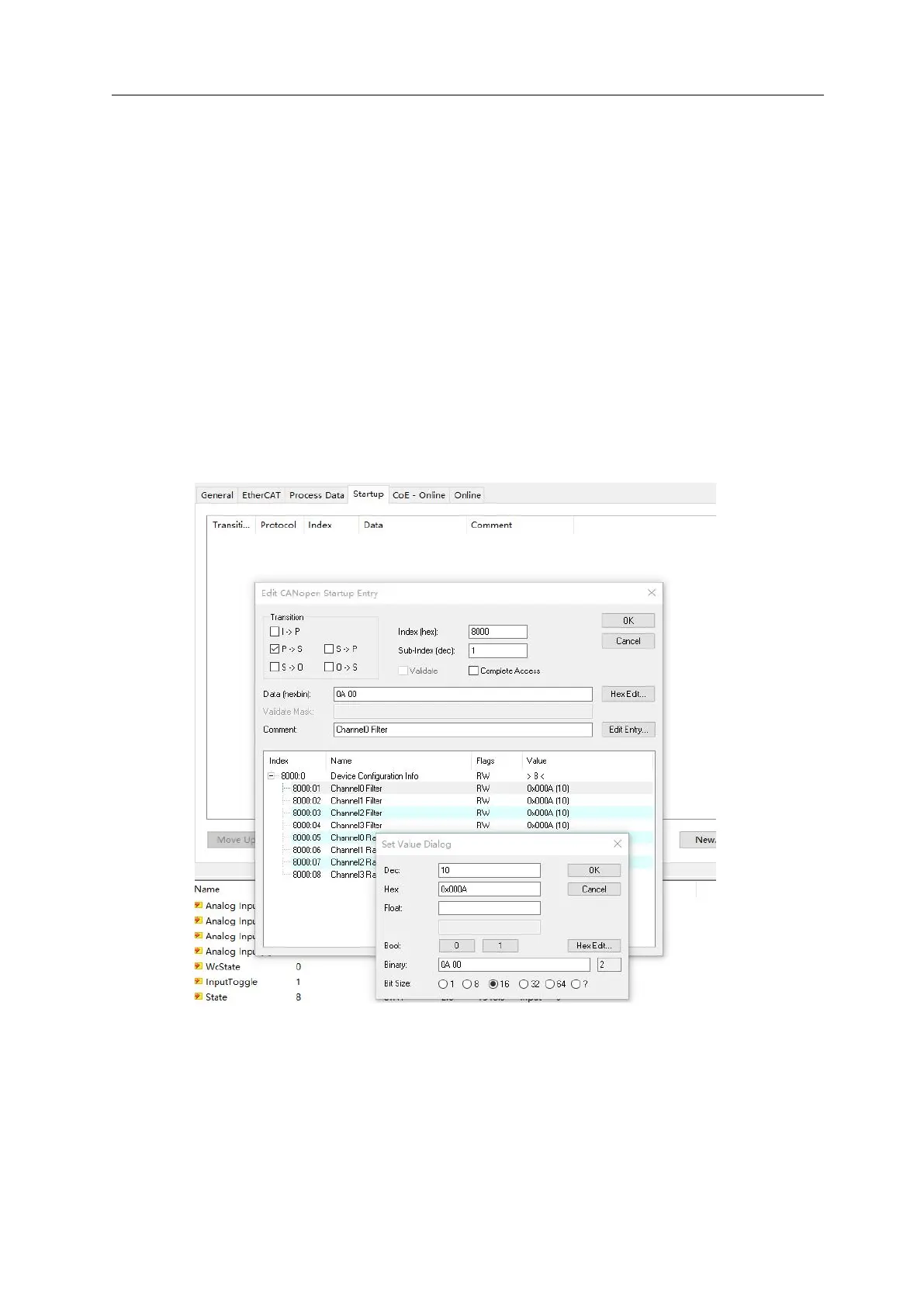

A、 In the configuration interface, click "New" in the "Startup" to enter the "E dit CAN open
Startup E ntry" interface.
B、 Double-click 8000:05 C hannel 0 F ilter to select range range settings.
Note: After the configuration is complete, download the configuration and the
program again.
