EC4 series integrated I/O user manual Use
Copyright © Nanjing Solidot Electronic Technology Co., LTD. 2023
22
Signal and load power supply wiring
The load power supply uses DC 24V power supply. For the load power supply and signal line, refer to
the wiring diagram of the corresponding I / O module and the wiring method to press the cable into the
terminal (refer to6.3 I / O module wiring diagram).
6.3Wiring diagrams

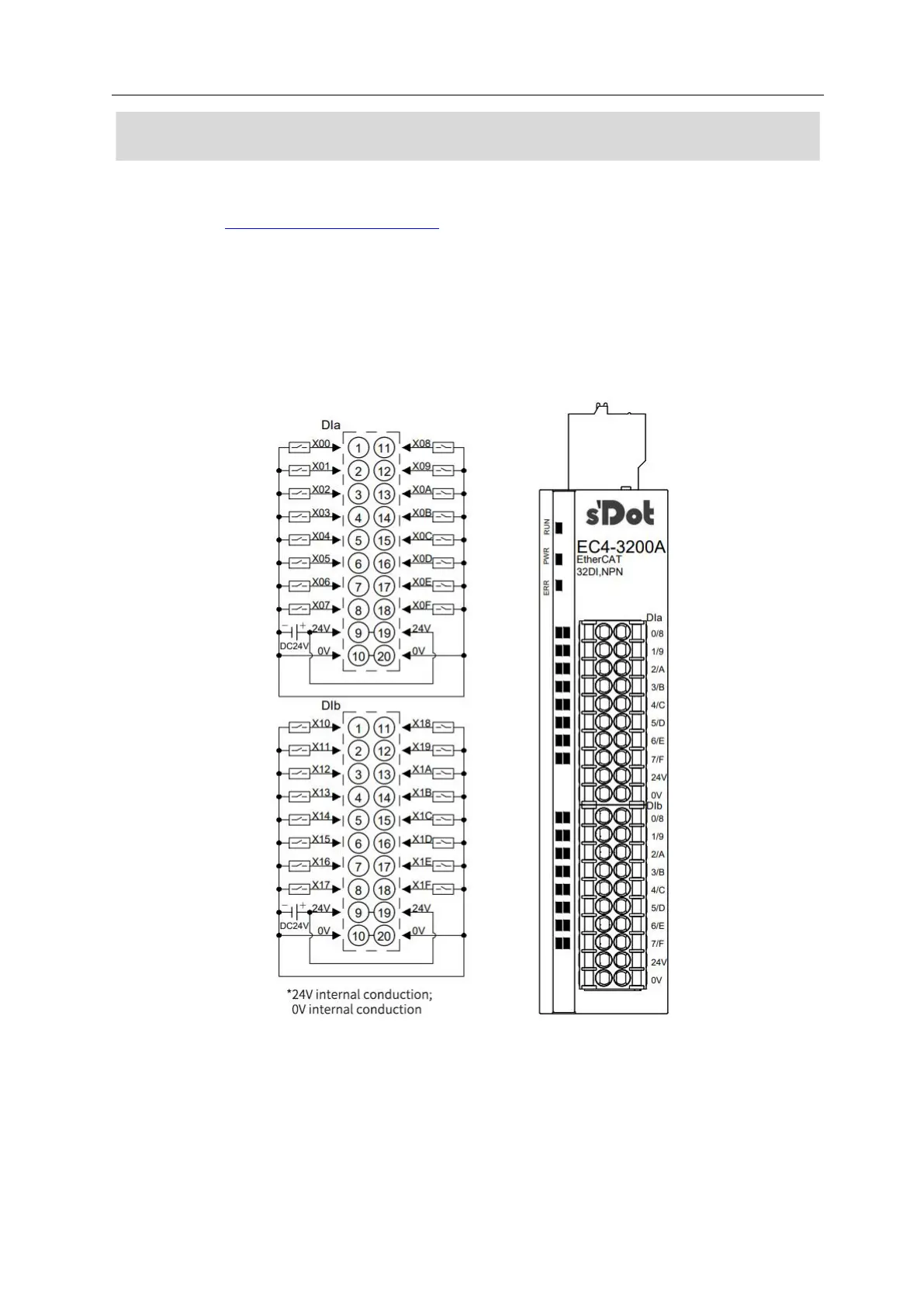

6.3.1EC4-3200A
