sDot EC4 Series - Designation Rules

EC4 Series Integrated I / O User Manual
2 Designation Rules
Copyright © Nanjing Solidot Electronic Technology Co., LTD. 2023
5

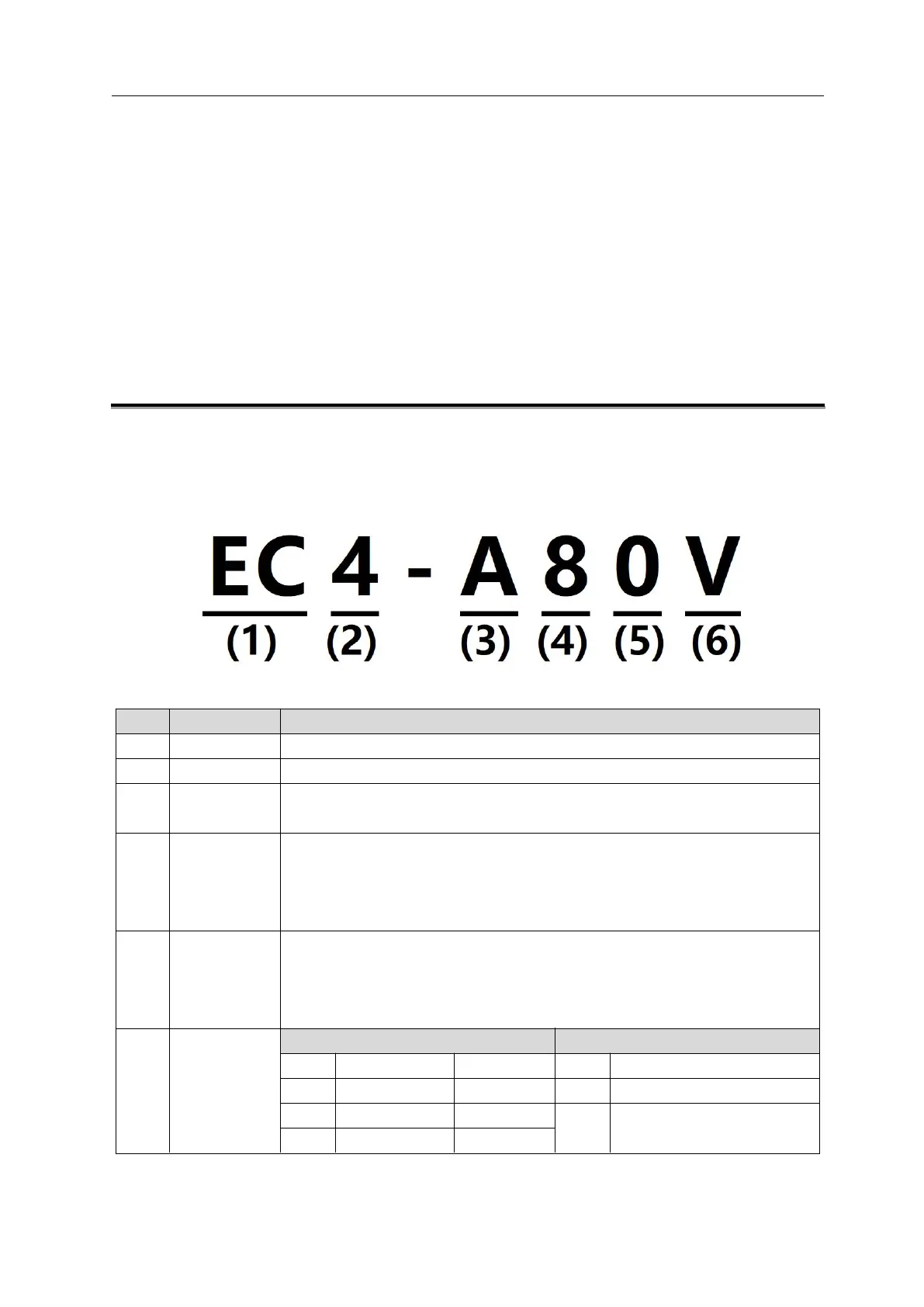

2 Designation Rules
2.1Designation rules
No. Type Description
（1） Bus protocol EC: EtherCAT protocol abbreviation
（2） Product line 4: Integrated I / O
（3） I/O kind D: Digital
A: Analog
（4） Number of
input
pointsignal
points
Analog quantity: 0,4, and 8
digital : 0,8,16,24,32
（5） Number of
output
pointsignal
points
Analog quantity: 0,4, and 8
digital : 0,8,16,24,32
（6） Input output
features
Digital Analog
Code import output Code
A NPN, 3ms NPN, 0.5A I 4~20 mA, 0~20 mA
B PNP, 3ms PNP, 0.5A V -10~+10 V, 0~+10 V
J - relay
