EC4 series integrated I/O user manual Use
Copyright © Nanjing Solidot Electronic Technology Co., LTD. 2023
62
6、 Test the IO module

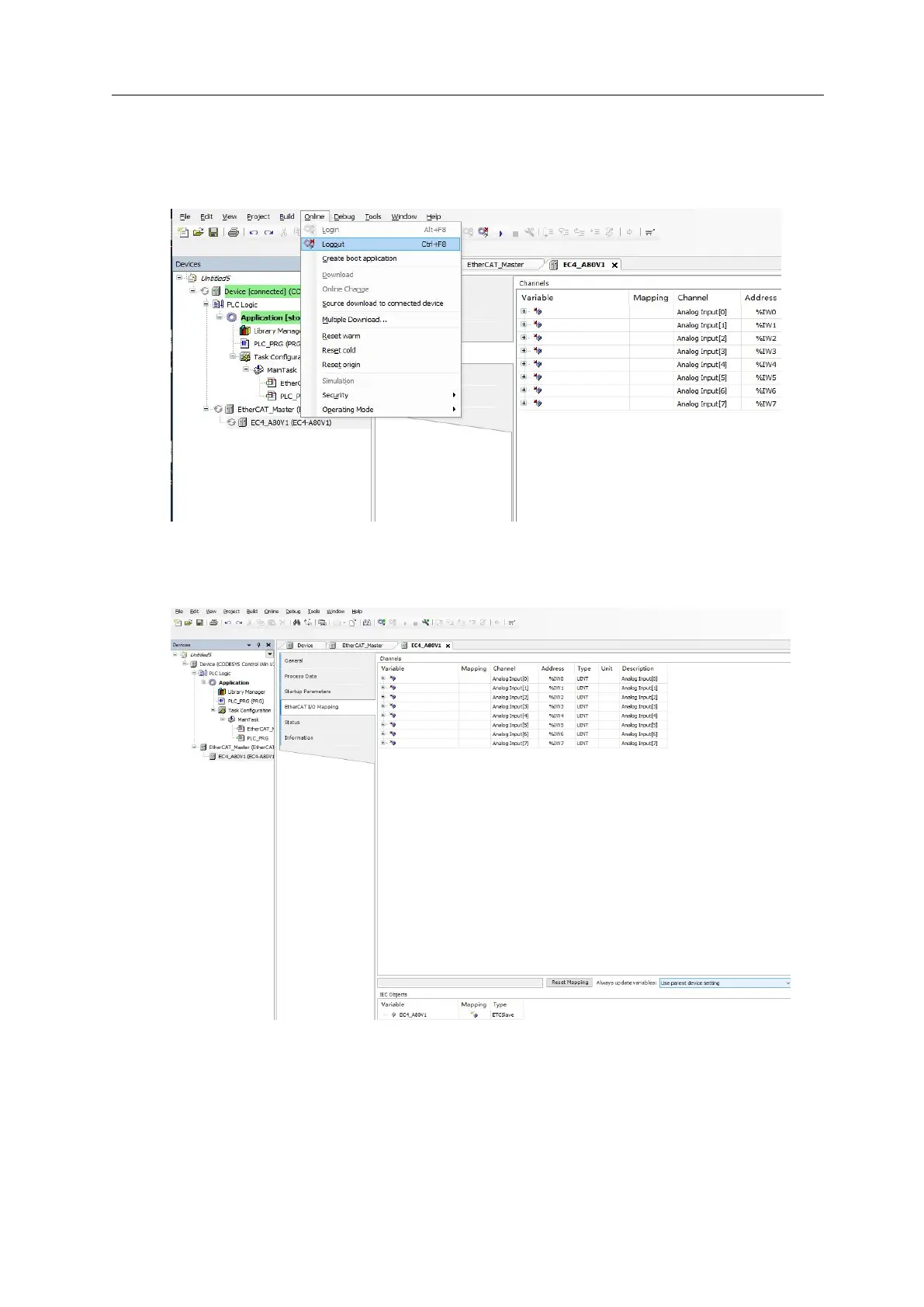

a. Exit the PLC and login to the "L ogout", as shown in the figure
below.
b. Select "E t herCAT I / O Mapping" in the module E C4-A80V1 menu folder, as shown in the figure
below.
