❶ Place the position of the sensors in the
tank
Tightening must be done MANUALLY at the
cable glands located on the Camlock.
❷ Return to the previous step with F2
❸ Go to the next step with F3

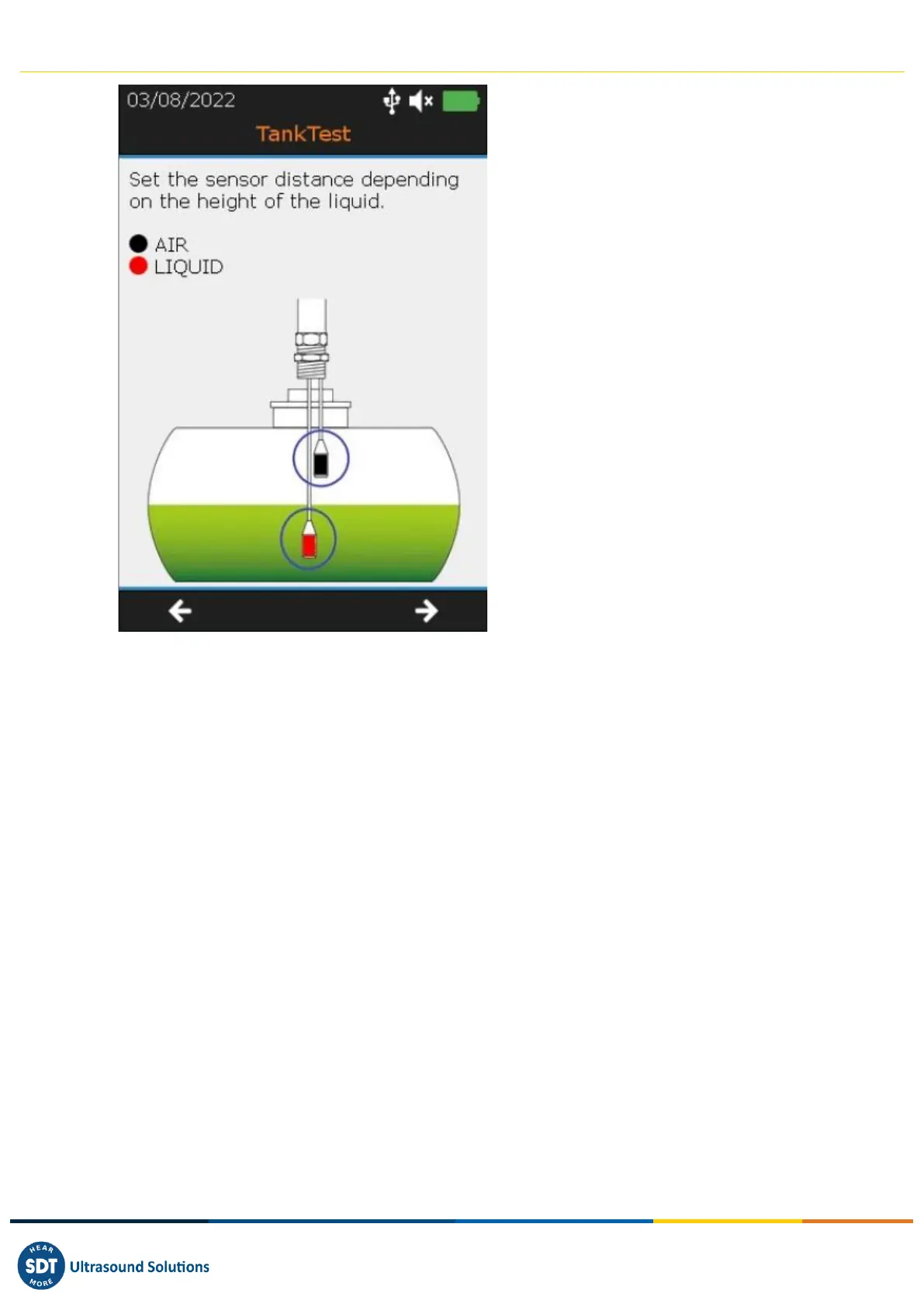

The adjustment of the sensor position is explained below:
- Adjust the height of the BLACK sensor (TTB2) so that its sensitive side is located at the level of
the connection of the bottom of the flange to the tank shell.
- Adjust the height of the RED sensor (TTR2) so that its sensitive side is immersed in the liquid,
without touching the bottom of the tank. The amount of liquid must be sufficient to allow the
sensor to be fully immersed.
