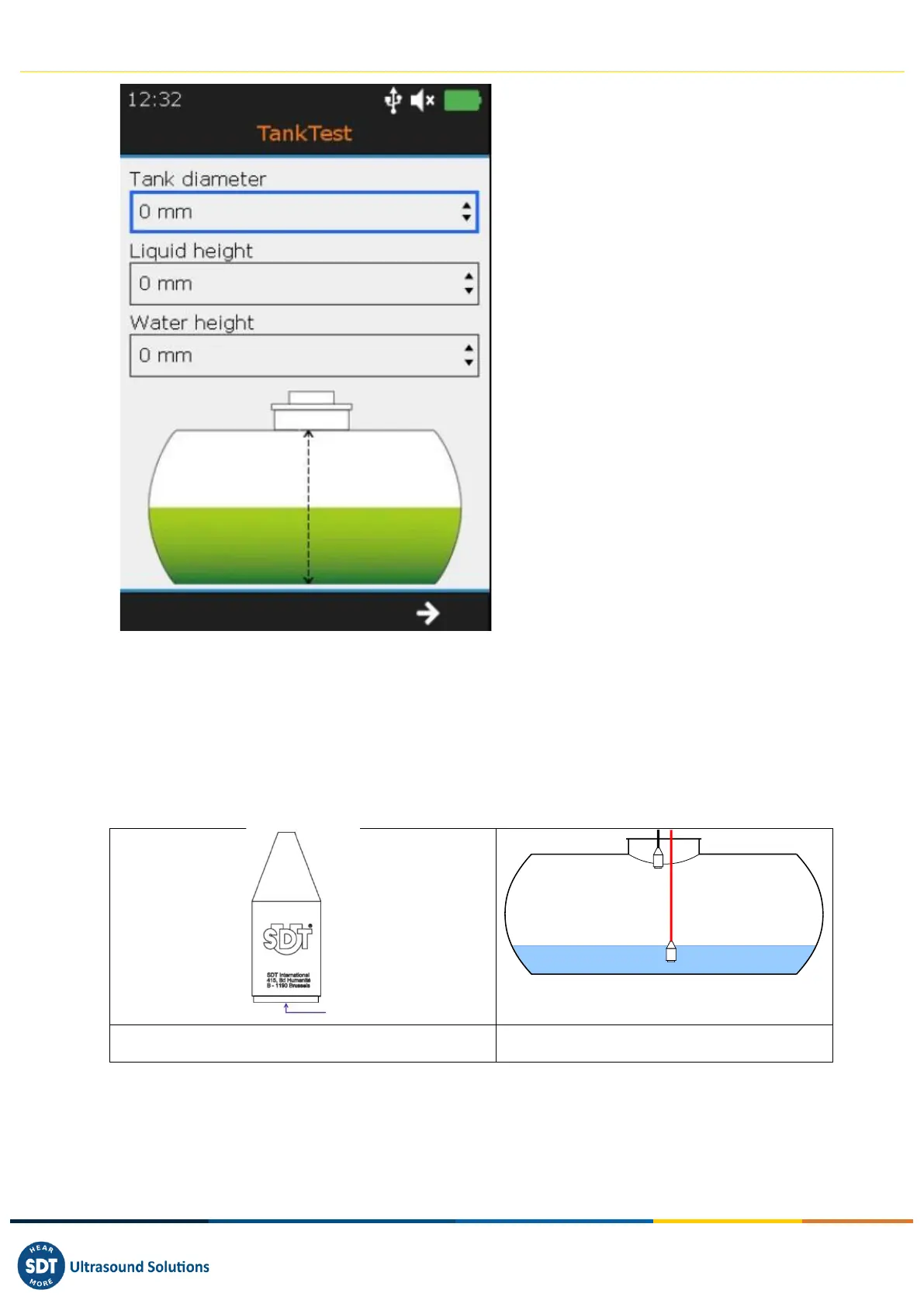

❶ Diameter of the tank, in mm
❷ Height of the liquid, before the test
❸ Height of water, before the test
❹ Go to the next screen with F3
Before proceeding with the installation of the sensors, the following points should be noted:
- The sensors should be handled with care, especially on their sensitive side.
- The sensors are supplied pre-wired on the Camlock. The adjustment of the lengths described
in the next step implies manual tightening, using the cable glands located on the Camlock, in
order not to damage the seals of the device.
Sensitive side of the TankTest sensors
Detail of the position of the sensors
