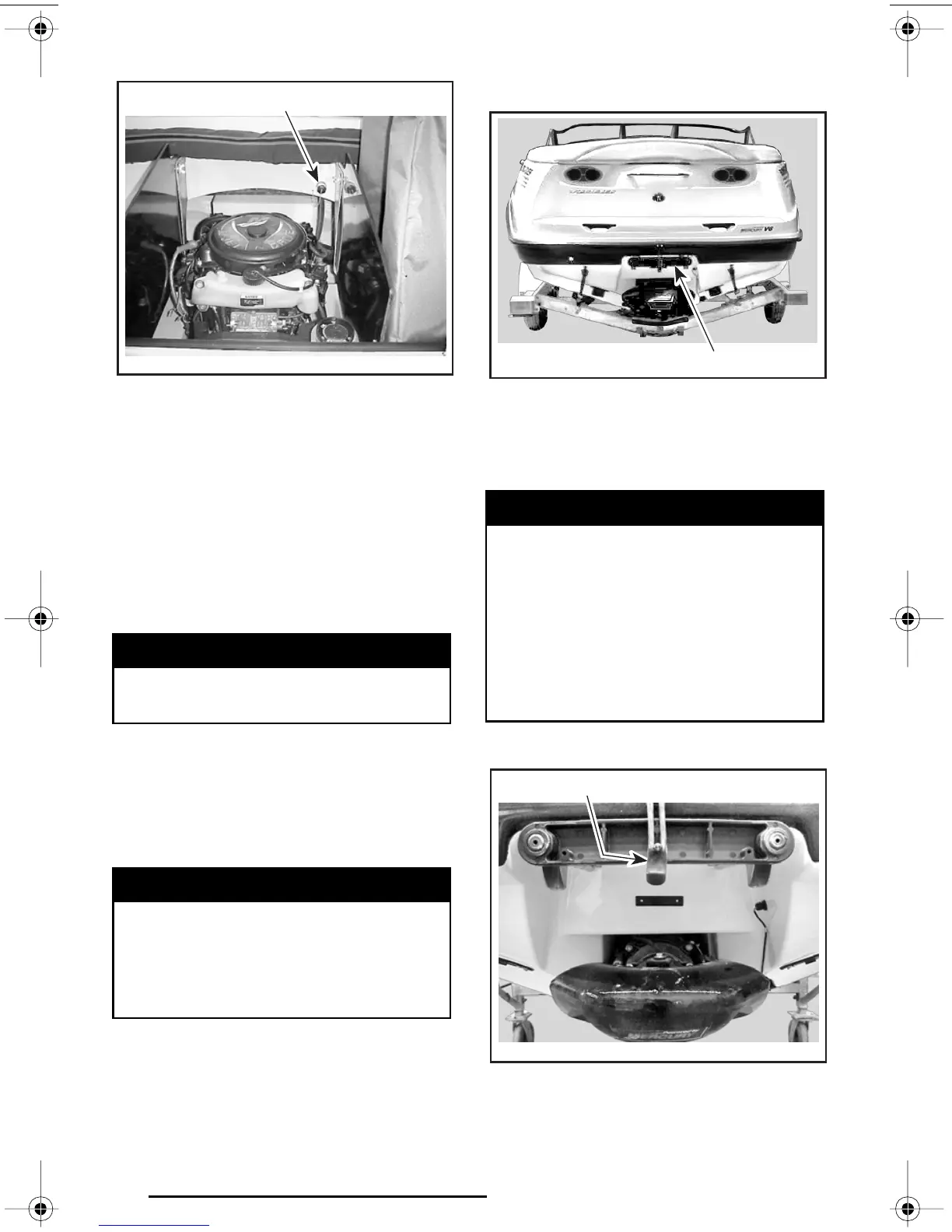

1. Flushing connector
35) Ventilation Ducts
This is where air flows to supply engine
and ventilate engine compartment.
They should never be obstructed.
36) Jet Pump Nozzle
Turns side to side via input from the
steering wheel. This provides direc-
tional control when engine is running.
37) Reverse Gate
When selecting the neutral or reverse
position with the throttle/shift lever,
the reverse gate moves up or down to
obtain the desired position.
38) Retractable Ladder
1. Retractable ladder
Located under swim platform. A con-
venient ladder to help reboarding the
craft.
Pull latch to unlock the ladder.
TYPICAL
1. Latch
WARNING
Never use nozzle as a supporting
point to board the craft or to lift it.
WARNING
Never use gate as a supporting
point to board the craft. Throttle/
shift lever should only be used
when the engine is idling and craft
is completely stopped.
1
F10D0EY
WARNING
Engine should be OFF when using
ladder. Keep limbs away from jet
or intake grate. Stay on center of
the ladder. Only one person at the
time on the ladder. Never use the
ladder for pulling, towing, diving
or jumping, boarding a craft that is
out of water or any other purpose
other than a ladder.
F10L2NZ
1
F10L2KZ
1
