28 Bat charger
V
tery
P si i a teo t ve b t ry
Nega ive battery charger t

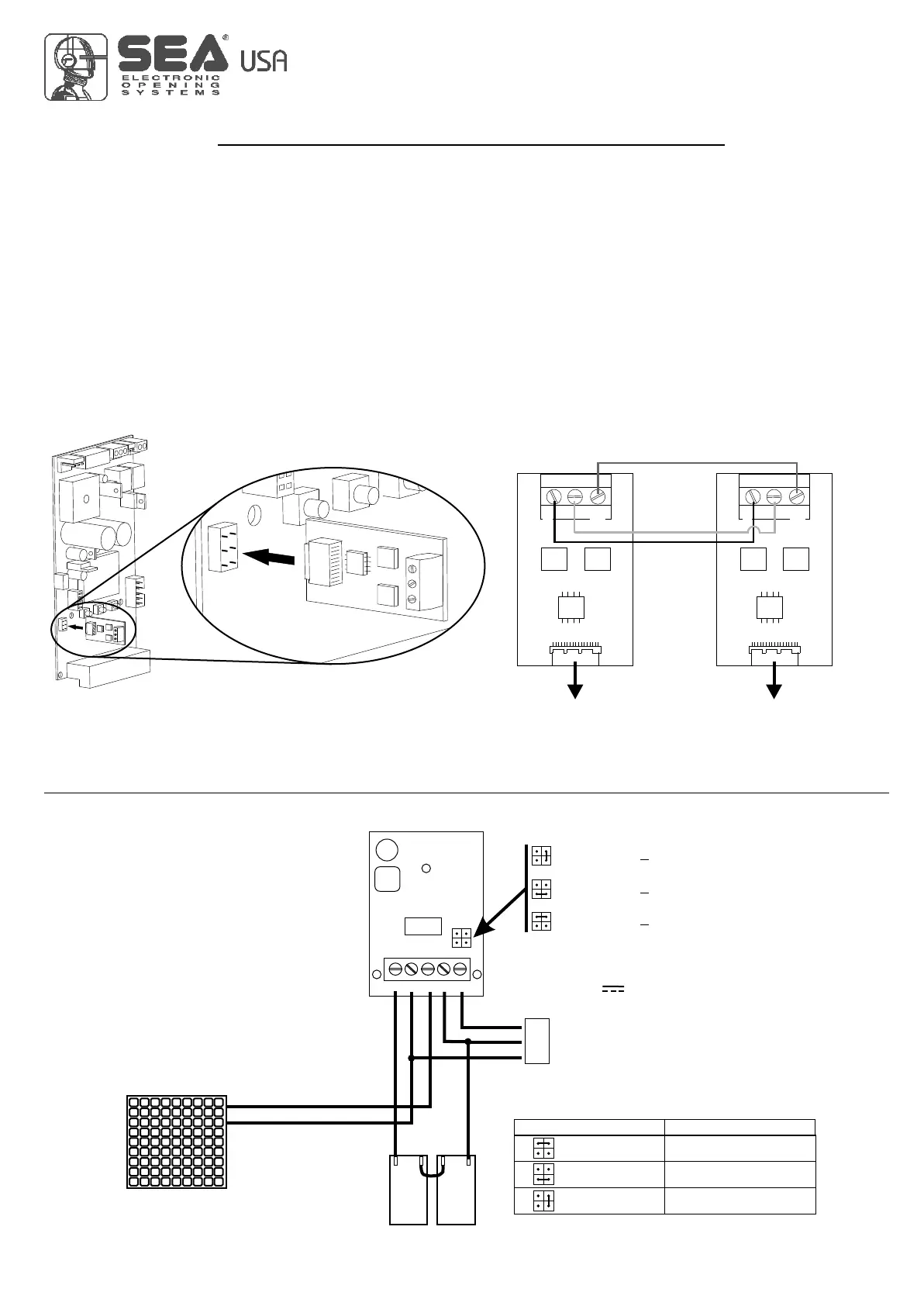

CONNECTION OF BATTERIES TO BATTERY CHARGER CARD
Battery current (mA) Battery (Ah)
Insert two 12V batteries connected in series.
USER 1 - 24V DG
MASTER-SLAVE FUNCTION
CN4
SIGB
COM
SIGA
SIGB
COM
SIGA
M1 M1
= charge 200mA
~
~
(BAT)
+
-
GND
PSOL
BAT 28V
+
-
GND
+
CN1
+
-
S
GNDGND
Solar Panel
Batteries
12V 12V
= charge 360mA
= charge 800mA
~
Cod.23101105
800
360
200
12 or 16
7
2
To set an installation with two motors in MASTER-SLAVE function it is recommended to do as follows:
1) Set the two motors as if they were two independent installations, make sure that the individual motor works properly and that
the limit switches (when present) are read properly.
2) Once sure of the correct functioning connect the control unit MASTER to the control unit SLAVE through the special clamp
(Code SEA 23001220).
3) Now set the control unit, which has to manage the commands and motor 1 (photocell, keyswitch, STOP, safety edge etc.) as
MASTER and the other one which will move motor 2 as SLAVE.
4) Follow up the selflearning of the times of the MASTER control unit.
Note 1: The master and slave settings on the control unit are present in the special menu selecting ASL
Note 2: All these operations can also be managed through the JOLLY programmer).
Note 3: On the SLAVE it is possible to set the following functions only: torque, speed, motor type, slowdown speed, acceleration,
deceleration, position recovery, 24V aux and motor inversion. All other parameters will be set only by the MASTER control unit.
U
Insert on CN4
of the Master control unit
Insert on CN4
of the Slave control unit
Note: respect the polarity of the cables.
It is recommended to use a two twisted pairs shielded cable
2
with less than 0.5 mm section.
22
International registered trademark n. 2.777.971
67411535 REV 03 - 05/2013
