Fig.1
F
F
O
The control unit is pre-set with the default settings, to start the control unit with the
DEFAULT settings just keep pressed the UP and DOWN buttons at the same time
power supplying the control unit the display shows the message init.
The DEFAULT settings are shown in the Menues table.
WORKING TIMES SELF LEARNING
USER 1 - 24V DG
Fig.6
O
N
A
Fig. 2
Fig. 5
Fig. 7
Fig. 3 Fig. 8
Fig.4
U
iN. T
NOTE: When using a B200 motor or magnetic limit switches in general; make sure that the
control unit is set on magnetic limit switch before learning;
MENU SA G
Note1: Put a jumper on SAFETY EDGE contact if not used.
Note2: It is not necessary to put a jumper on the limit switches, photocells and Stop if they are
not used.

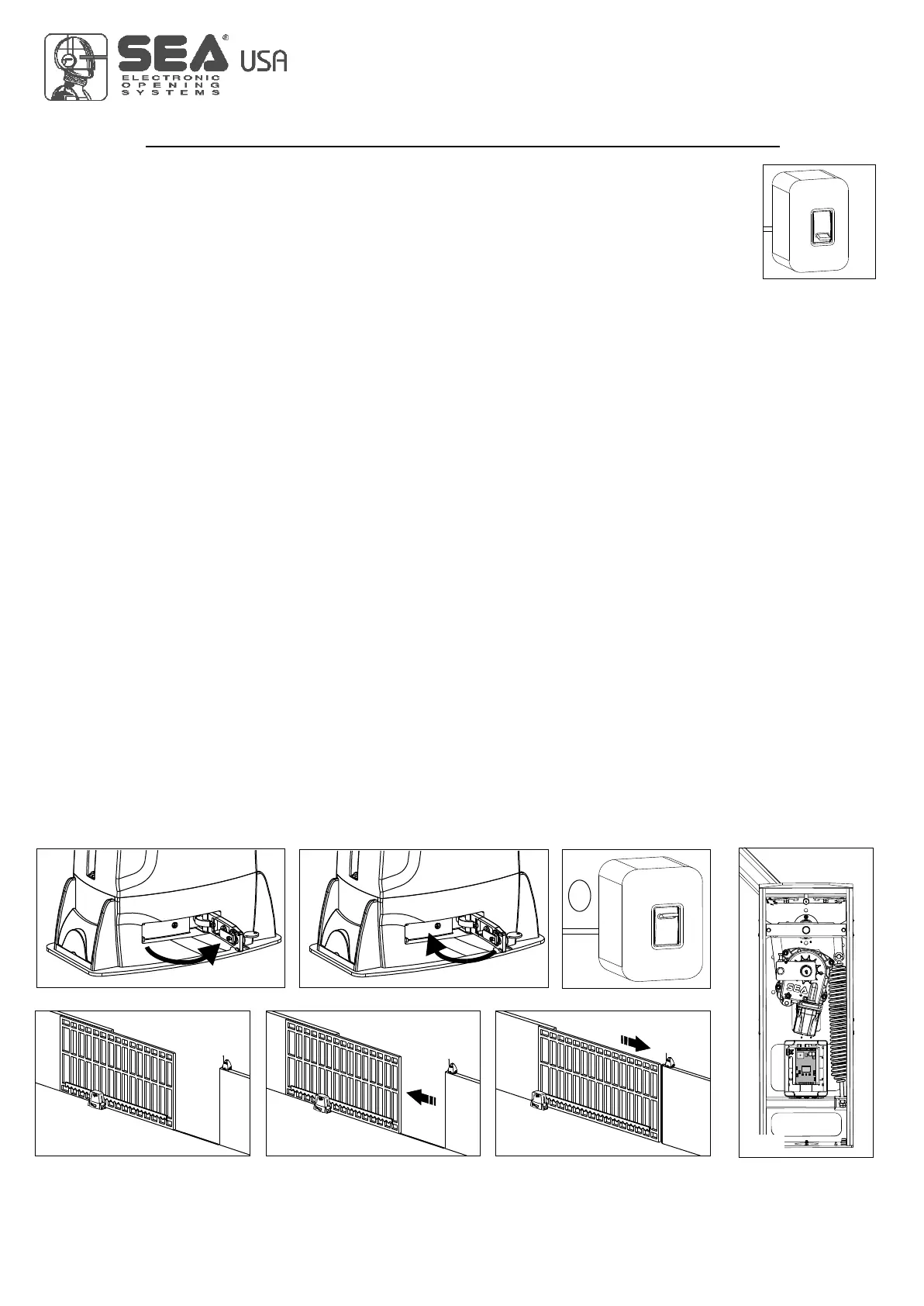

1) Disconnect the power supply (Fig. 1), release the motor (Fig. 2) and put the leaves manually
next to the stop in closing (Fig. 3-4).
Reset the mechanical lock (Fig. 5)
2) Connect the control board to the power supply (Fig.6).
3) Select on the on-board display or JOLLY programmer, the type of motor that you are using as
indicated in the dispaly administration.
4) Set the motor torque, the working speed, the deceleration and acceleration space and the
slowdown speed. If necessary also set the working logic and the other parameters.
5) Select PROG on the display, press OK and than one of the UP or DOWN buttons. Now the gate
will automatically execute a closing, opening and reclosing cylce.
Note: If the motor starts in opening, remove and re-put power supply, select on the display .
And through the UP and DOWN button put it on ON, or if you have the Jolly programmer, activate
the motor and limit switch exchange function. If the motor starts in closing and stops, remove
the power supply and reverse the motor cables, then repeat starting from point 5.
6)The self-learning is done.
ATTENTION: This procedure is potentially dangerous and should only be performed by
qualified personnel in safety conditions.
U
9
International registered trademark n. 2.777.971
67411535 REV 03 - 05/2013
