SeaDoo GTX+ - Storage Cover Shock Installation

SET-UP
F19L0M6
2
1
4
3

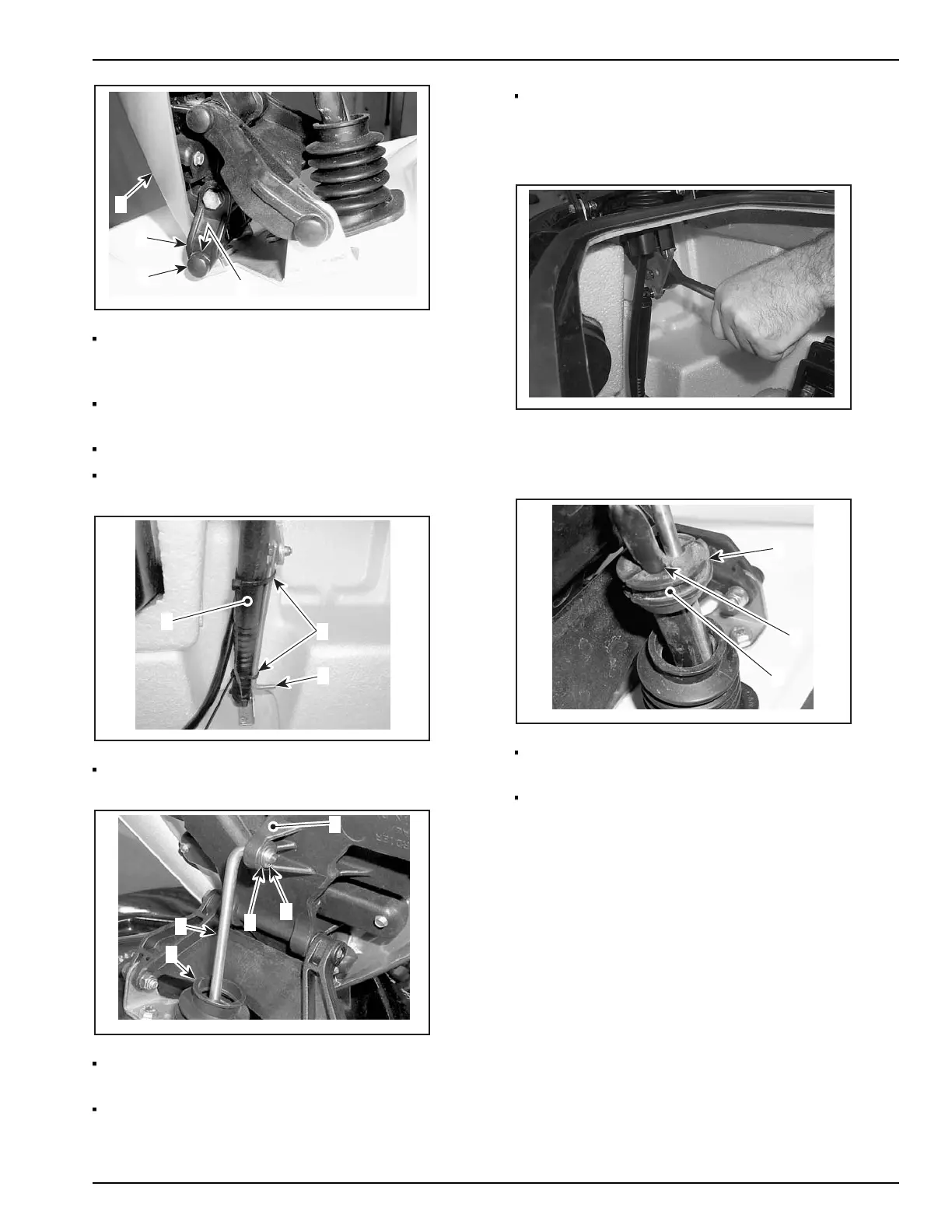

Secure fron
t arm of deck pivot support [1] to
storage cover assembly [2] with the M6 x 60
hexagonal bolt [3] from predelivery kit .
Apply Loctite 243 (blue – threadlocker)
on bolt thr
eads.
Torqueto4N•m(35lbf•in).
Cover bolt
head with a pressure cap [4]
from predelivery kit .
F19L0N6
3
1
2
Cut locking ties [1] holding storage cover
rod [2] to shock assembly [3].
F19L0O6
1
3
2
5
4
Insert storage cover rod [1] through deck
rubber grommet [2].
Cl
ip shock female receptacle onto bracket ball.
Secure storage cover rod to storage
cover [3] using:
– an M6 flat washer [4] and
–acirclip[5] from predelivery kit .
F19L216
NOTE: It may be necessary to compress shock
to insert storage cover rod into storage cover,
using a 1
/2 inch drive ratchet.
F19L0P6
2
1
3
Inse
rt storage cover harness [1] in oval hole of
rubber grommet [2], from predelivery kit .
Secure rubber grommet on left side of
storage cover rod using locking tie [3],
fro
m predelivery kit .
Predelivery 2007-2 13 / 22
