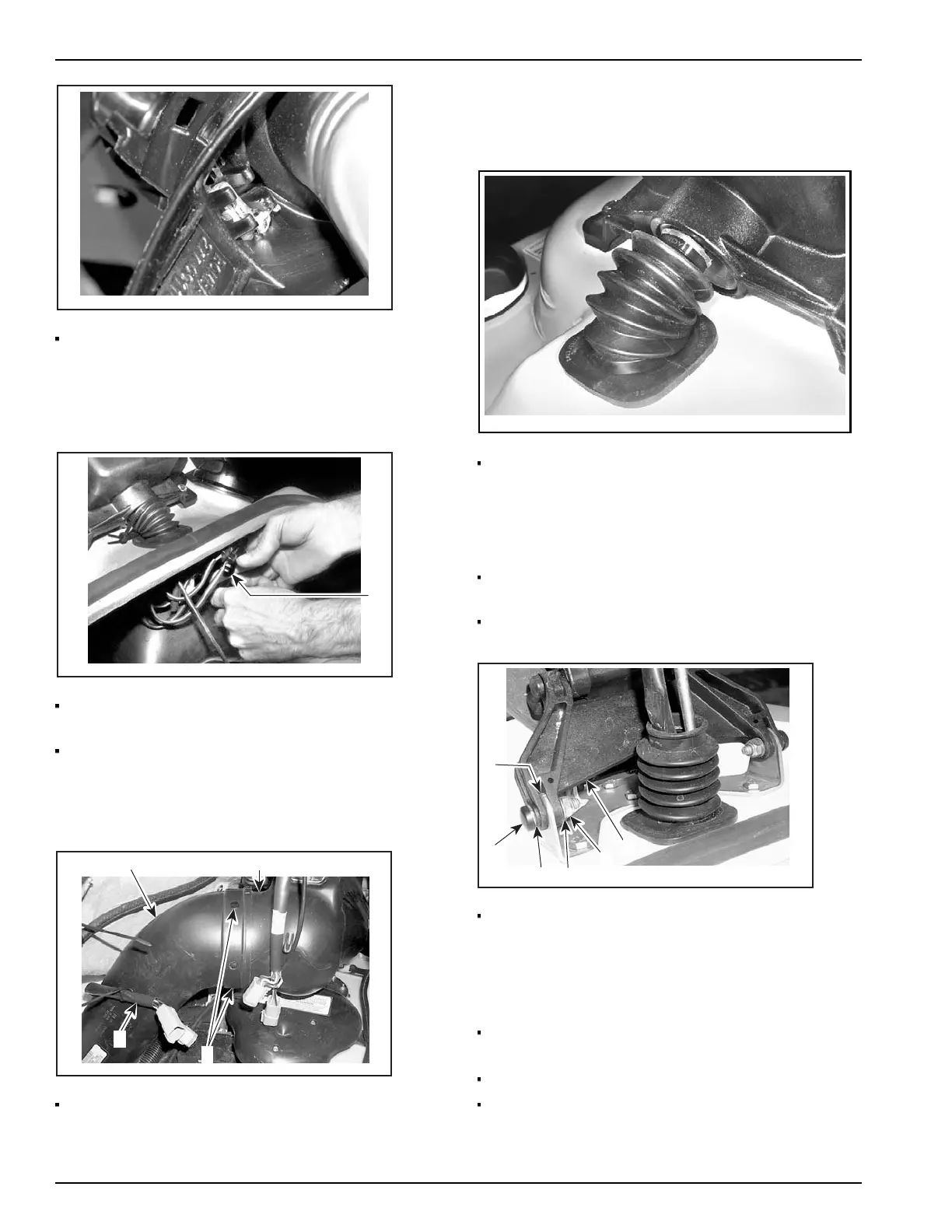

SET-UP
F18F056
Install thr
ottle cable into throttle lever.
Steering Harness
Model(s): International
1
F16F026
Connect [1] steering harness connectors
to main harness connectors.
Secure with locking tie from predelivery kit
or, in some cases, use existing locking tie
attached to vent tube bracket.
Model(s): RXP International
4
F19L0K6
3
2
5
Se
cure vent tube [3] to front collector [4] using
2 plastic darts [5 ] from predelivery kit .
Steering Rubber Boot
Model(s): International
sbl2006-002-107
Position rubber boot.
Storage Cover Installation
Model(s): RXP International
Remove plastic wrapping over storage
cover assembly.
Remove access cover and storage basket
from storage cover assembly.
F19L0J6
43
6
1
5
2
Secure rear arm of storage cover assembly
[1] to deck pivot support [2] using:
– 2 M6 x 25 hexagonal bolts [3],
–2M6f
lat washers [4] and
– 2 M6 elastic nuts [5], all from predelivery kit .
Apply Loctite 243 (blue – threadlocker)
on bolt threads.
Tor
que nuts to 4 N•m (35 lbf•in).
Cover bolt heads with pressure caps [6]
from predelivery kit .
12 / 22 2007-2 Predelivery
