SET-UP
Now that all rivets are in position, pop them
from left to right and front to rear.
Reverse Handle
Model(s): GTI std, GTI std R, GTI SE
International Only
sbl2006-
002-105_a

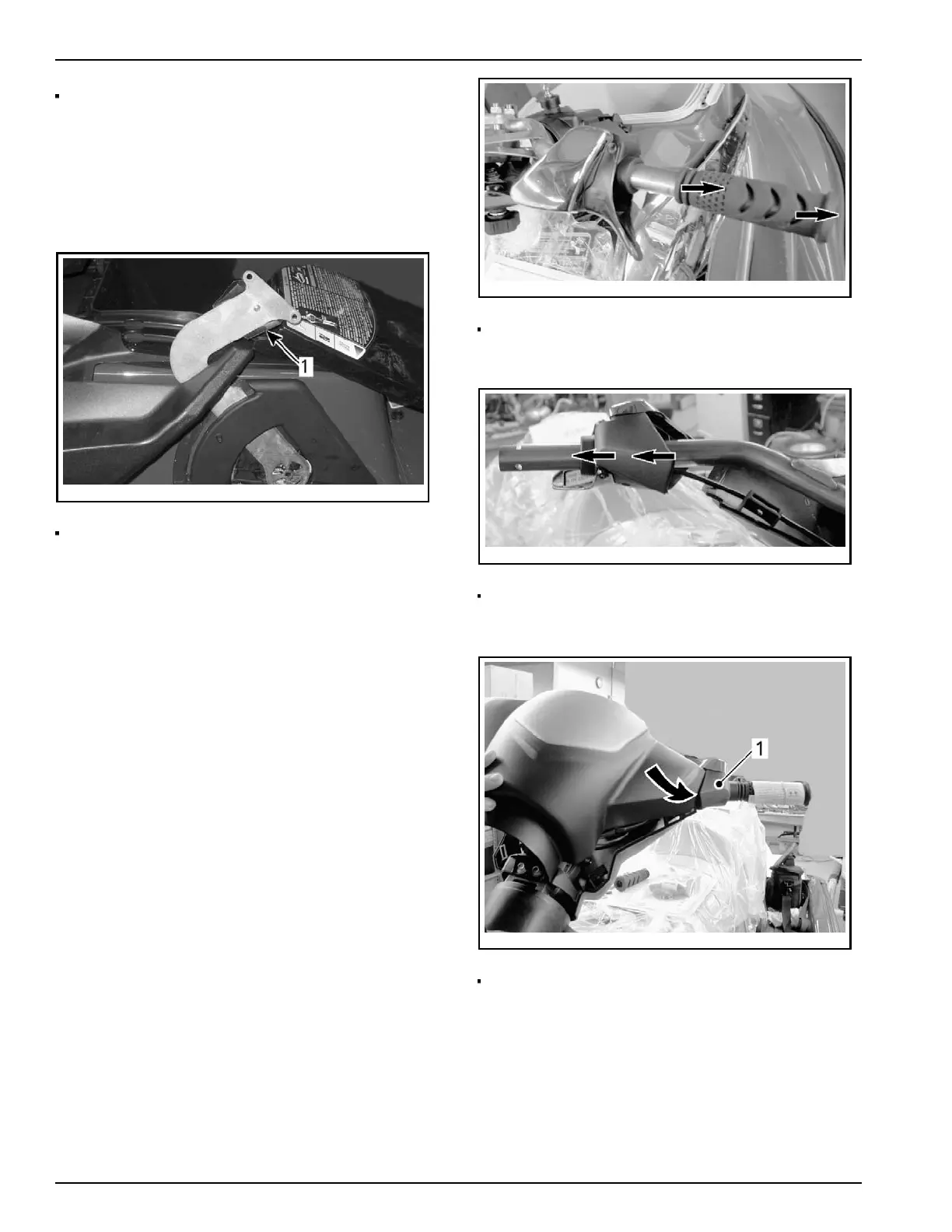

Install reverse handle (from glove box)
using gui
de [1], pop rivet, and 2 Phillips
†
screws from predelivery kit .
Handlebar Assembly /
Handlebar Cover
Model(
s): International models
– Handlebar assembly is located on the deck at
the rear of vehicle or in the footrest for the RXP.
To install it, refer to HANDLEBAR ASSEMBLY
furth
er in this bulletin.
Model(s): North American models
– Uppe
r handlebar cover with padding is located
inside front luggage compartment, underneath
storage box. To install it, follow this procedure:
sbl2007-001-001_a
Pull out righ
t side handle grip and unscrew M6 x 16
throttle lever housing socket set screw.Discard
screw as there are new ones in the PDI kit.
sbl2007-0
01-002_a
Push out throttle lever housing just enough to
gain a lit
tle room on the inside approximately
12.7 m m (1/2 in).
sbl2007-001-003_a
Align and slide upper handlebar cover under left
side engine stop switch housing [1] and then,
close it down slowly toward right side making sure
to al
ign all 5 male/female tabs along the way.
† Phillips is a registered trademark of Phillips Screw Co.
8 / 22 2007-2 Predelivery
