SeaDoo GTX+ - Rear View Mirrors Installation

SET-UP
Rear View Mirrors Installation
Model(s): RXT and all GTX
(International)

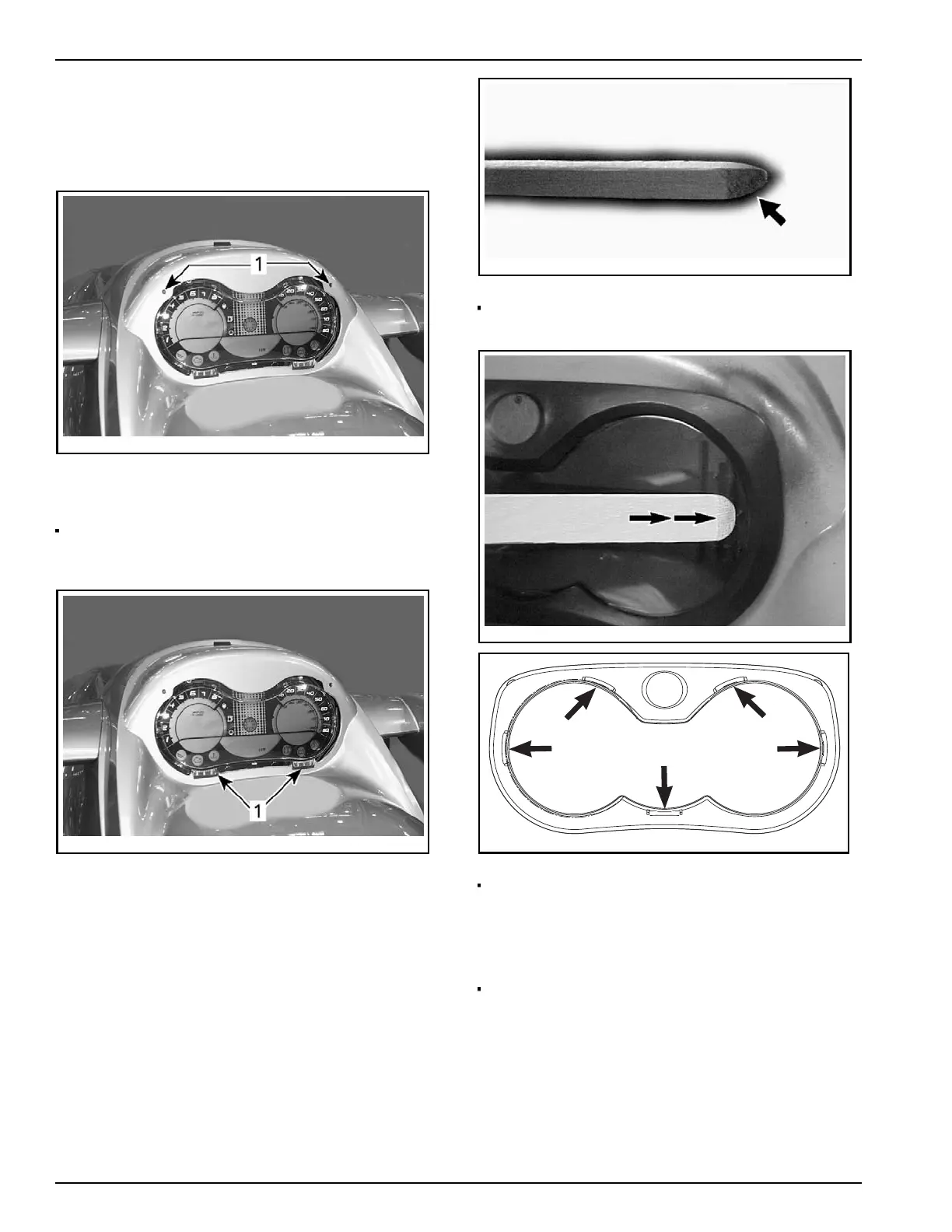

sbl2006-002-101_a
— Models WI
THOUT the cluster bezel
already installed —
Remove and keep both screws [1]
retaining instrument cluster. Unplug and
set clust
er aside for now.
sbl2006-002-101_b
NOTE: At 2 places at bottom of cluster, rubber
shims [1] are folded on body for a tight fit; care
shoul
d be taken not to lose those shims so they
are reused when reinstalling cluster.
— Models WITH the cluster bezel
already installed —
CAUTION: Cluster's locking tabs may break
when removing cluster bezel; extreme
care must be taken while performing
bezel removing procedure.
sbl2006-002-103_a
Take a s mall wooden stick (coffee stirrer type)
and chamfer its end; refer to photo.
sbl2006-002-104_a
sbl2006-002-102_a
Slide chamfered end between bezel and cluster,
in line with each side locking tab, pushing out
smoothly while lifting out bezel; repeat procedure
with lower locking tab and then, gently lift bezel
upwa
rd, out of its upper locking tabs.
Remove and keep both screws retaining
instrument cluster. Unplug and set
cluster aside for now.
6 / 22 2007-2 Predelivery
