SET-UP
sbl2007-001-004_a

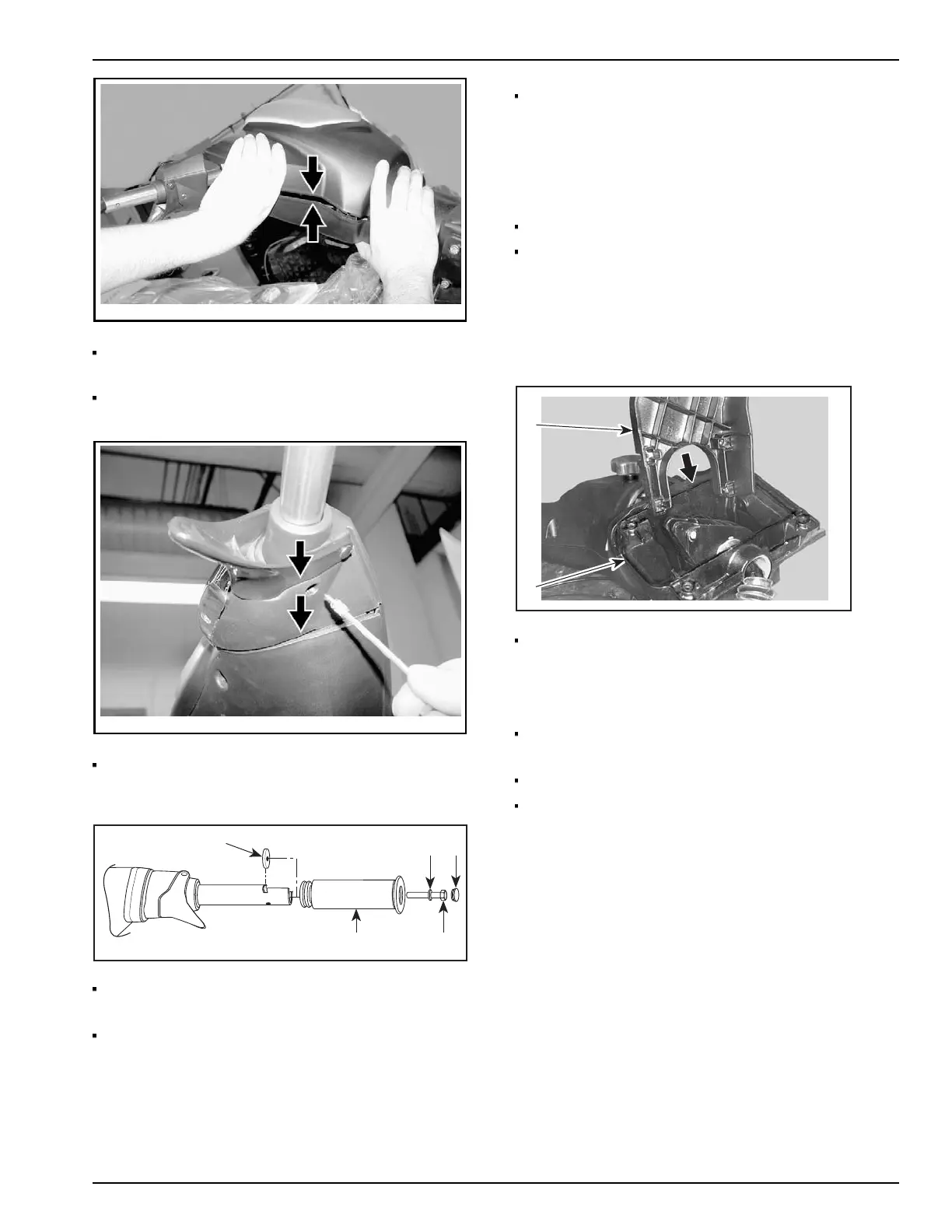

Press upper and lower handlebar covers
together so tabs clip in position.
Secure upper and lower covers using three K40
x16screwsi
ncluded in the predelivery kit.
sbl200
7-001-005_a
Push throttle lever housing back in position and
secure
in place using an M6 x 16 socket head
screw (with scotch grip — from predelivery kit).
F02K0KA
1
2
4
53
Placeaninsert[1 ] (from predelivery kit)
into notch in handlebar.
Slidehandlegrip[2] back in place making
sure it bottoms at proper place.
Secure with an M6 x 30 hexagonal bolt
[4] (with scotch grip — from predelivery
kit) and an M6 stainless steel flat washer
[3] (from predelivery kit).
CAUTION: Ensure to install flat washer
otherwise screw will damage grip end.
Torque bolt to 7 N•m (62 lbf•in).
Cover bolt by inserting rubber cap [5]
(from predelivery kit).
Handlebar Assembly
Model(s): International Only
1
2
Install cable support [1] on steering support
[2] and secure with:
– 3 M6 x 20 hexagonal bolts and
– 3 M6 flat washers from predelivery kit .
Apply Loctite
††
243 (blue – threadlocker)
on bolt threads.
Torqueto5N•m(44lbf•in).
Remove both wing nuts from threaded
stud
sonconsole.
†† Loctite is a registered trademark of Loctite Corp.
Predelivery 2007-2 9 / 22
