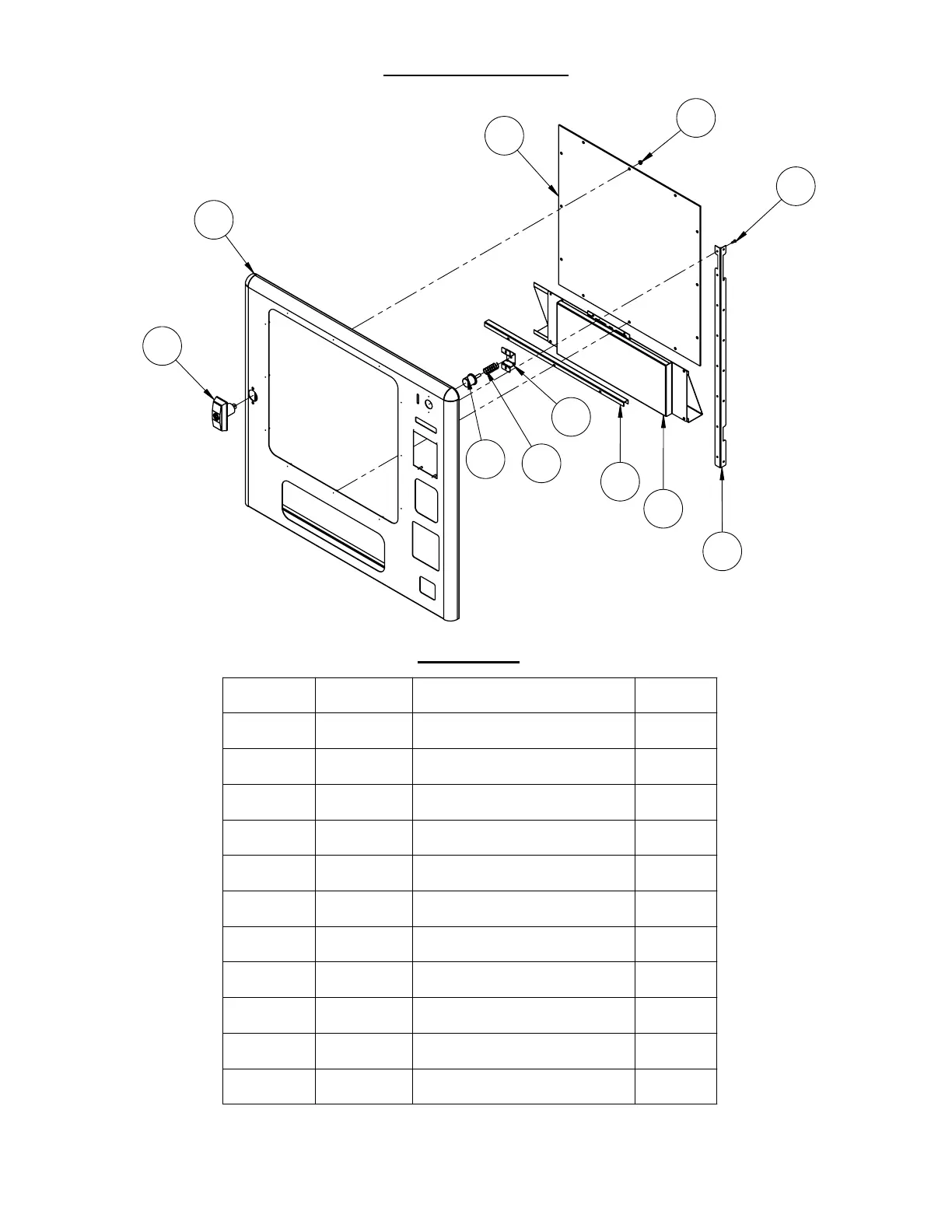

Seaga JDL-2 COMBO - Exploded View - Snack Unit Door

69JDL V1.0 8 2022
Snack Unit Door (JDLS)
1
2
11
10
9
8
7
6
3
4
5
Parts List
ITEM NO. PART NO. DESCRIPTION QTY.
1 HAC247/HAC246 T-HANDLE & LOCK 1
2
SAI92031 DOOR 1
3
PLI816A DOOR WINDOW 1
4 FAI856
HEX NUT 14
5 FAI884
SCREW 8
6 HAI351
HINGE 1
7
SAI92012G DELIVERY DOOR 1
8 STI92066
BRACKET, PUSH DOOR MOUNTING 1
9 STI70022
COIN RETURN BRACKET 1
10 HAI708
SPRING 1
11 HAI2096
COIN RETURN BUTTON 1
