Seaga JDL-2 COMBO - Exploded Views and Parts; Exploded View - Snack Unit

68JDL V1.0 8 2022

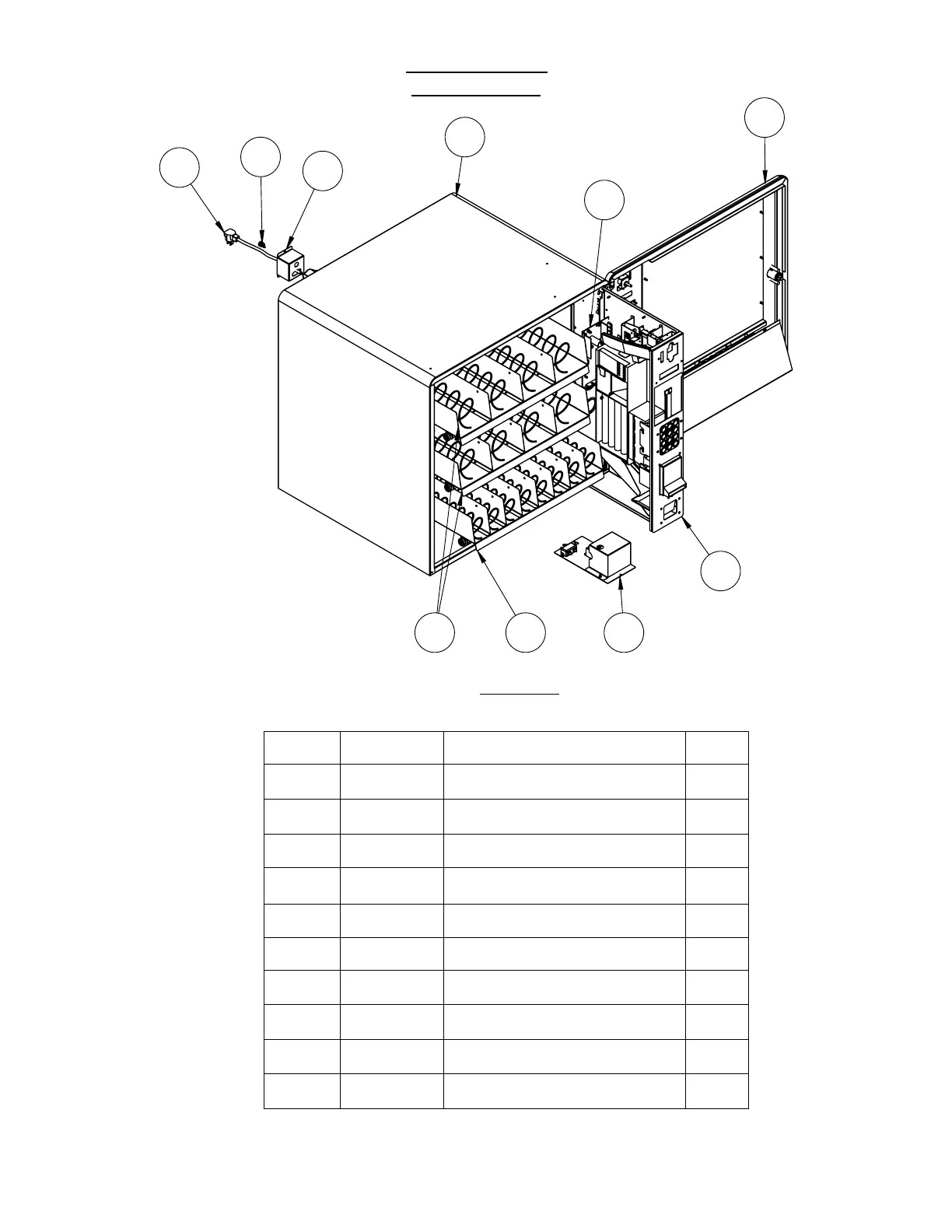

Snack Unit (JDLS)
3
56
7
1
10
4
8
9
2
Parts List
ITEM NO. PART NO. DESCRIPTION QTY.
1 SAI92030 CABINET 1
2
SAI92033 DOOR 1
3
WE9225G SLIDE-OUT VERTICAL SHELF 1
4
SAI92022 TRANSFORMER PLATE ASSEMBLY 1
5
SAI9221 8-SELECTION PRODUCT TRAY 1
6
SAI9222 4-SELECTION PRODUCT TRAY 2
7 STI94087G
BRACKET POWER CORD 1
8 HAI799
STRAIN RELIEF 1
9
ELC957 POWER CORD 1
10 EL980
VMC 1
