Seaga JDL-2 COMBO - Component Assemblies; Exploded View - Beverage Unit Door

71JDL V1.0 8 2022

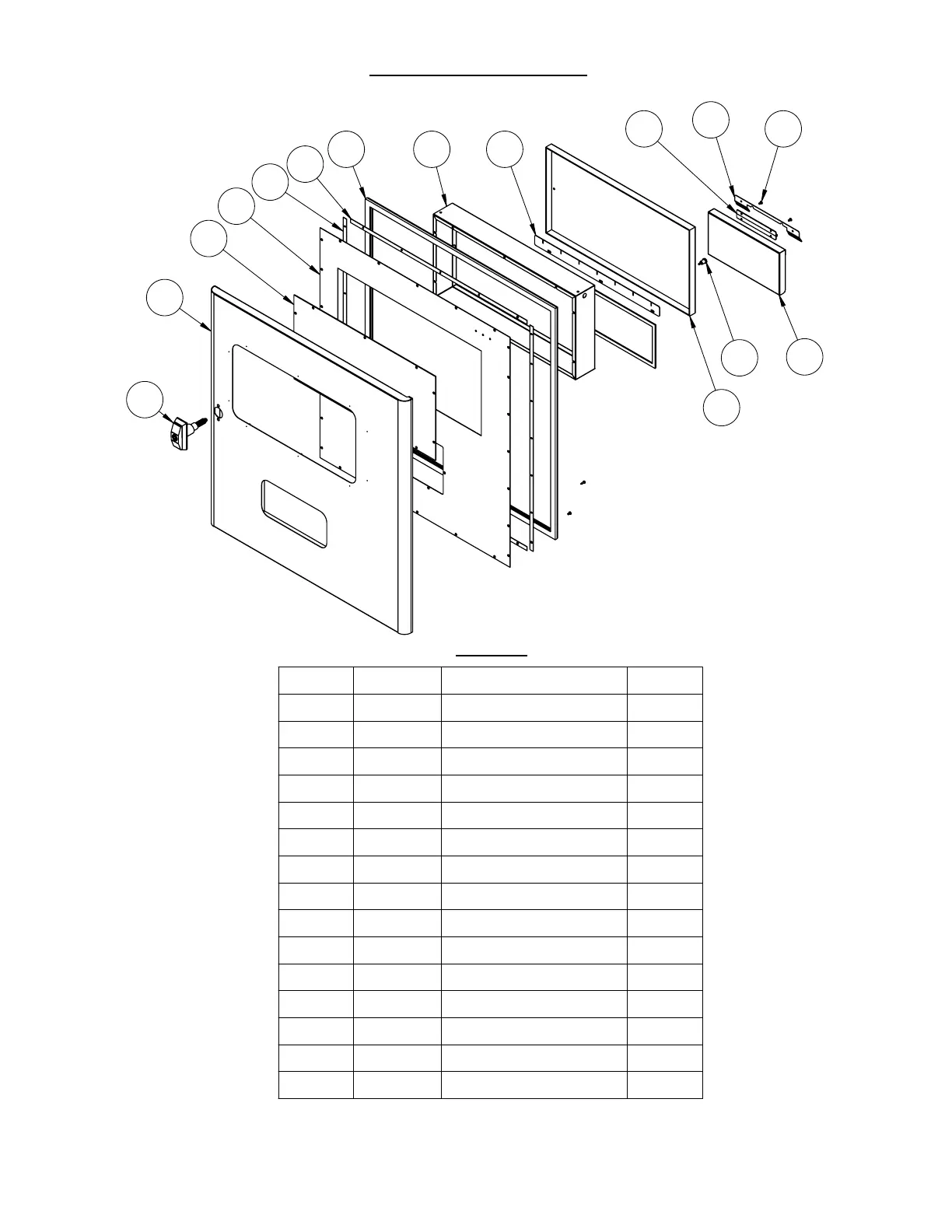

Beverage Unit Door (JDLD)
2
7
1
Parts List
6
3
4
8 9
13
14
15
11
1210
5
ITEM NO. PART NO. DESCRIPTION QTY.
1 HAI739A T-HANDLE 1
2
SAI94028 DOOR FOAMED 1
3
PLI808A DOOR WINDOW 1
4
PLI94005 INNER LINER 1
5 STI94086
GASKET RETAINER, VERTICAL 2
6 STI94086A
GASKET RETAINER, HORIZONTAL 2
7 PLI615 GASKET 1
8
SAI94027 CAN DISPLAY 1
9 STI94104
SELECTION LABEL HOLDER 1
10 HAI402
HINGE 1
11 STI94102 PUSH DOOR STOP 1
12 FAI884
SCREW 26
13
PLI2106 COVER CAN DISPLAY 1
14
PLI613 KNOB 2
15
SAI94010 DOOR DELIVERY 1
