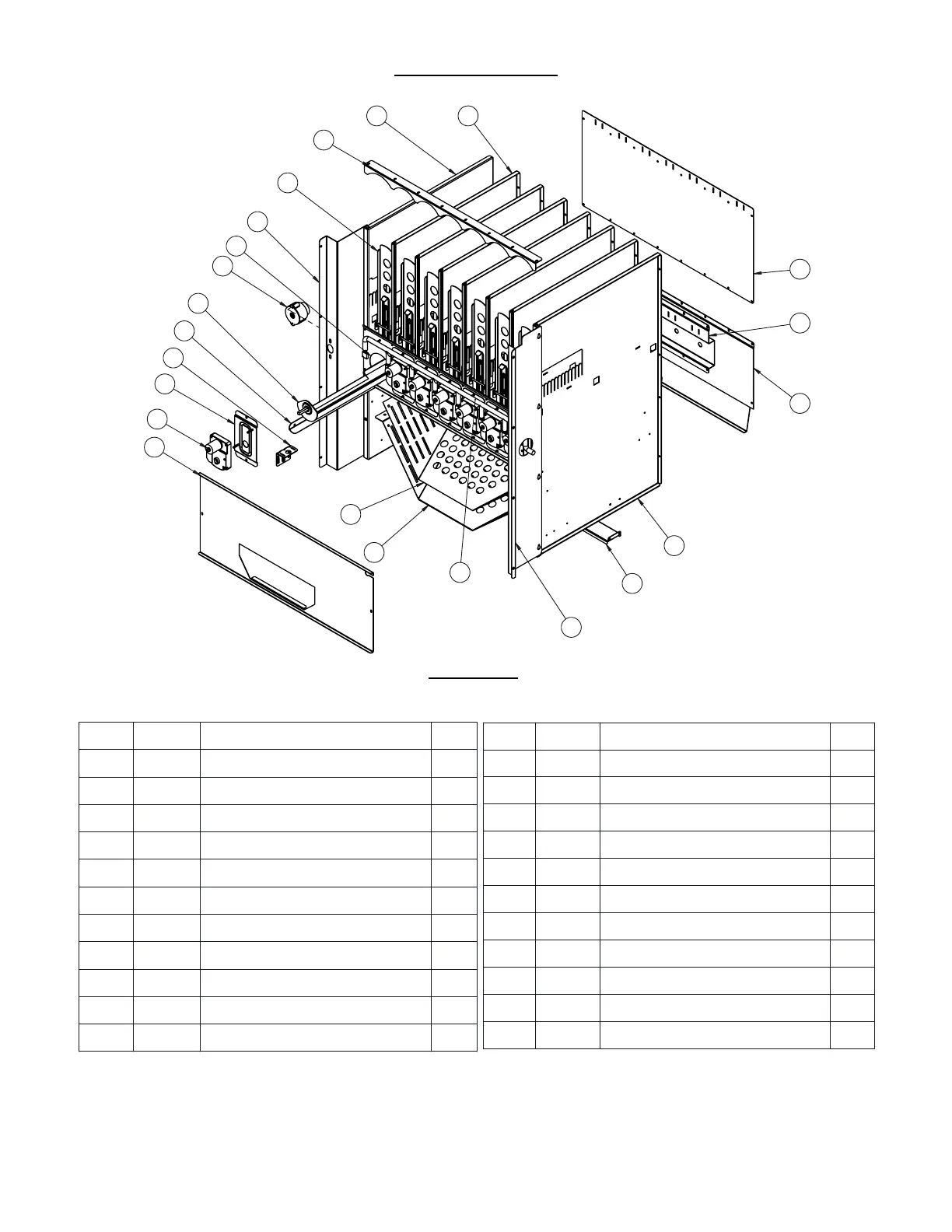

Seaga JDL-2 COMBO - Exploded View - Dispenser Assembly

72JDL V1.0 8 2022
Dispenser Assembly
3
8 7
5
19
11
9
10
1
4
16
20
2
18
17
6
14
12
21
15
Parts List
13
22
ITEM NO. PART NO. DESCRIPTION QTY.
1 STI54026 PANEL, EXTENSION, RH 1
2 STI54039
SUPPORT, MIDDLE, DISPENSER 1
3 STI54042
DELIVERY PANEL, OUTSIDE LH 1
4 STI54029
BACK, DELIVERY SYSTEM LOWER 1
5 STI54025
BACK, DELIVERY SYSTEM MIDDLE 1
6 STI54037
BACK DELIVERY, UPPER 1
7 STI97062
PARTITION, DELIVERY SYSTEM, INNER 6
8 STI54038
DELIVERY PANEL, OUTSIDE RH 1
9 STI54036
BRACKET, ARCH SUPPORT 1
10
SAI817 PRODUCT RETAINER, ASSEMBLY 7
11 STI55031
PANEL, LH, EXTENSION 1
ITEM NO. PART NO. DESCRIPTION QTY.
12 STI54020 BRACKET, AUGER, MOUNT, FRONT 1
13
HAC910 SPLIT NUT, T-HANDLE 1
14 HAI2045
AUGER 7
15 STI97090
DEFLECTOR, SIDE 2
16 STI689A
BRACKET, DELIVERY CHUTE MOUNTING 4
17 STI97042
BRACKET, MOTOR DELIVERY UNIT 7
18
ELC935 MOTOR 7
19 STI54034
COVER, PRODUCT DELIVERY 1
20
PLI54001 COVER, PLASTIC, DELIVERY CHUTE 1
21 STI54035
PRODUCT DELIVERY, CHUTE 1
22
ELI2293B HARNESS, DELIVERY SYSTEM 1
