Seaga JDL-2 COMBO - System Assemblies; Exploded View - Payment System Assembly

73JDL V1.0 8 2022

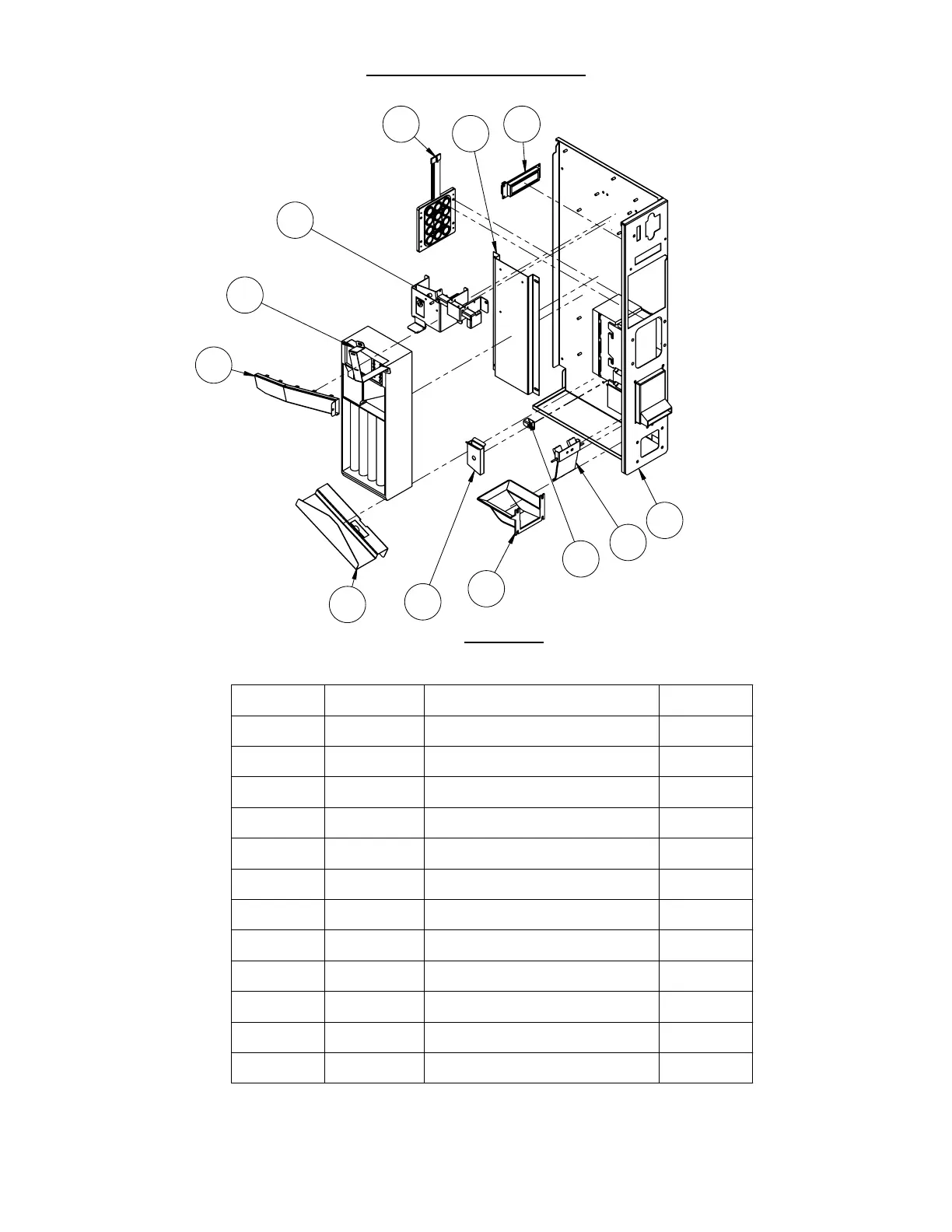

Payment System Assembly
10 12
7
9
4
5
3
2
1
11
8
6
Parts List
ITEM NO. PART NO. DESCRIPTION QTY.
1 SAI92008G SLIDE OUT VERTICAL SHELF 1
2
SAI920 RETURN COIN FLAP ASSEMBLY 1
3 STI92052G
COIN DROP MOUNT 1
4
PLI607 COIN RETURN TRAY 1
5
SAI92024G COIN DROP CHUTE 1
6 STI92029G
COIN RETURN CHUTE 1
7
SAI92023 COIN INSERT CHUTE 1
8 STI92049
SUPPORT COIN CHUTE 1
9
SAI92016 COIN RETURN ASSEMBLY 1
10
SAI820 KEYPAD 1
11 VS129G
COIN CHANGER BRACKET 1
12
ELC909 DISPLAY 1
