Seaga JDL-2 COMBO - Exploded View - 4-Selection Tray Assembly

74JDL V1.0 8 2022

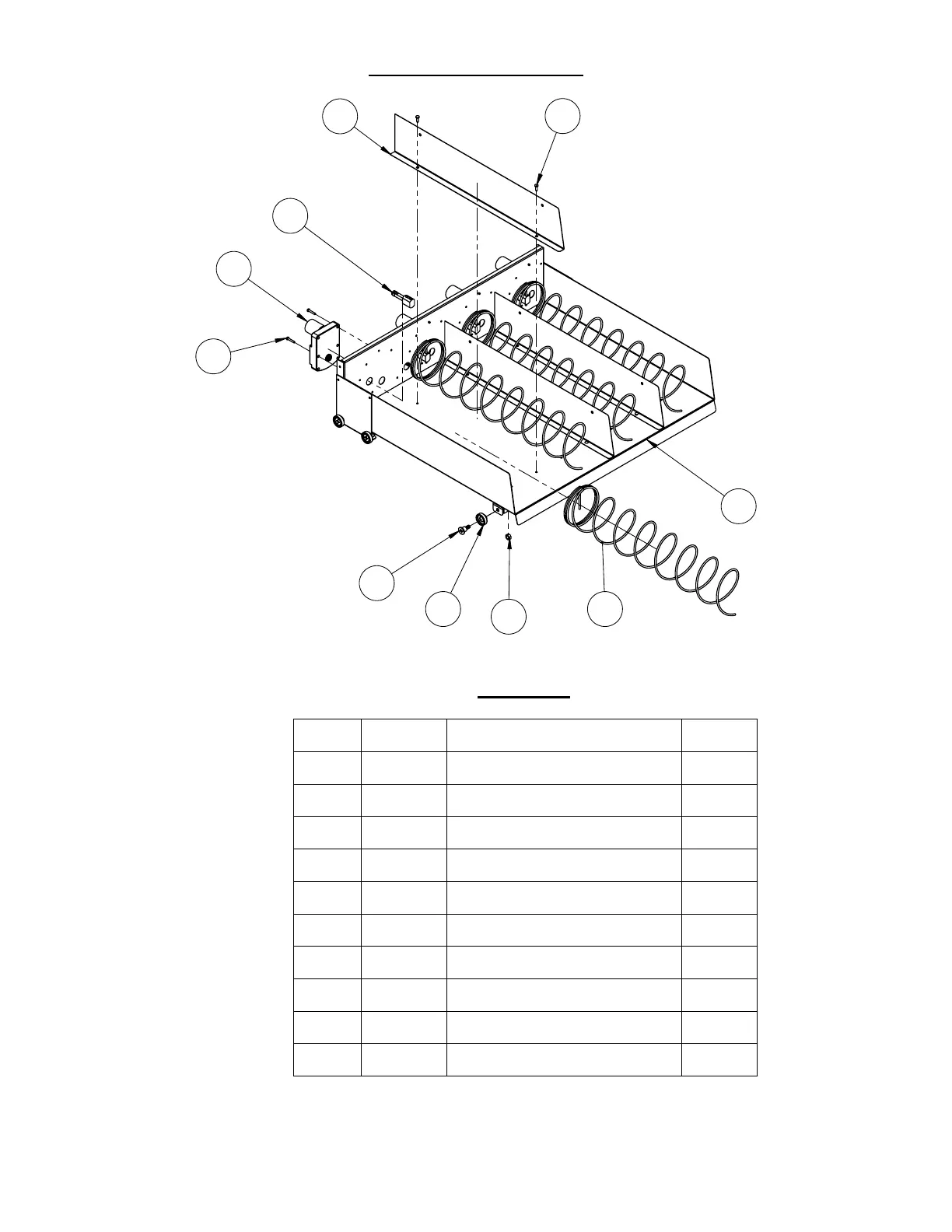

4-Selection Tray Assembly
1
9
10
7
6
8
5
3
4 2
Parts List
ITEM NO. PART NO. DESCRIPTION QTY.
1 SAI92006 TRAY WELDED 1
2
WFI887 COIL 4
3 FAI923
NYLOCK NUT 6
4
PLI802A WHEEL TRAY 6
5 HAI602
PIN WHEEL TRAY 6
6 FAI882
SCREW 8
7
ELC920 MOTOR 4
8
PLI920 COIL DRIVER 4
9 STI92007A
DIVIDER 3
10 FAI892
SCREW 6
