Seaga JDL-2 COMBO - Page 8

8JDL V1.0 8 2022

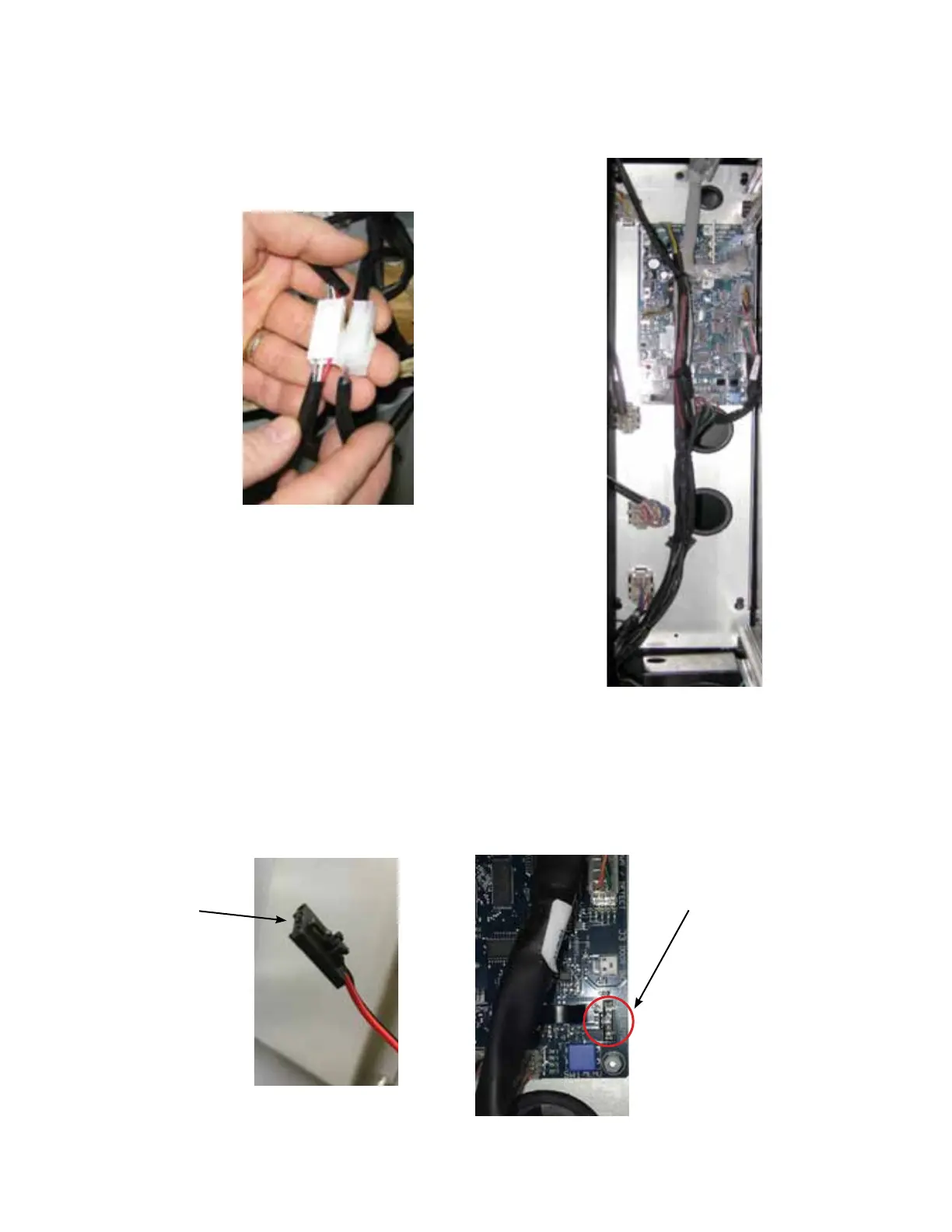

Connect the refrigeraon harnesses to the two connectors found in the snack unit that are ed together, see
Figure 2 below. (Note: the single harness located inside the snack unit is for the LED lighng which will be
covered in following steps).
Connect the Beverage Main harness to the boom port on the electrical panel as shown in Figure 3 below.
Figure 2-
Refrigeraon
Harnesses
Connected
Figure 3- Beverage
main harness
aaches to boom
connector port
MENUS Buon
The Beverage Unit ulizes a Drop Sensor that works on shock and vibraon. This system works to keep both
the customer and the operator happy by assuring that the vend that was requested has been completed
successfully.
The Drop Sensor harness must be passed up through the hole in the insulaon and aached to the VMC board
at the locaon shown in Figure 4.
Figure 4-
Drop Sensor (ELI2310)
Harness connecon
Drop Sensor
(ELI2310)
Harness that
connects to
VMC
