INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 3 90378 4 4 of 12
Section 2: ELECTRICAL INSTALLATION
vi. Connect minus conductor (B-, Black) directly to battery minus terminal.

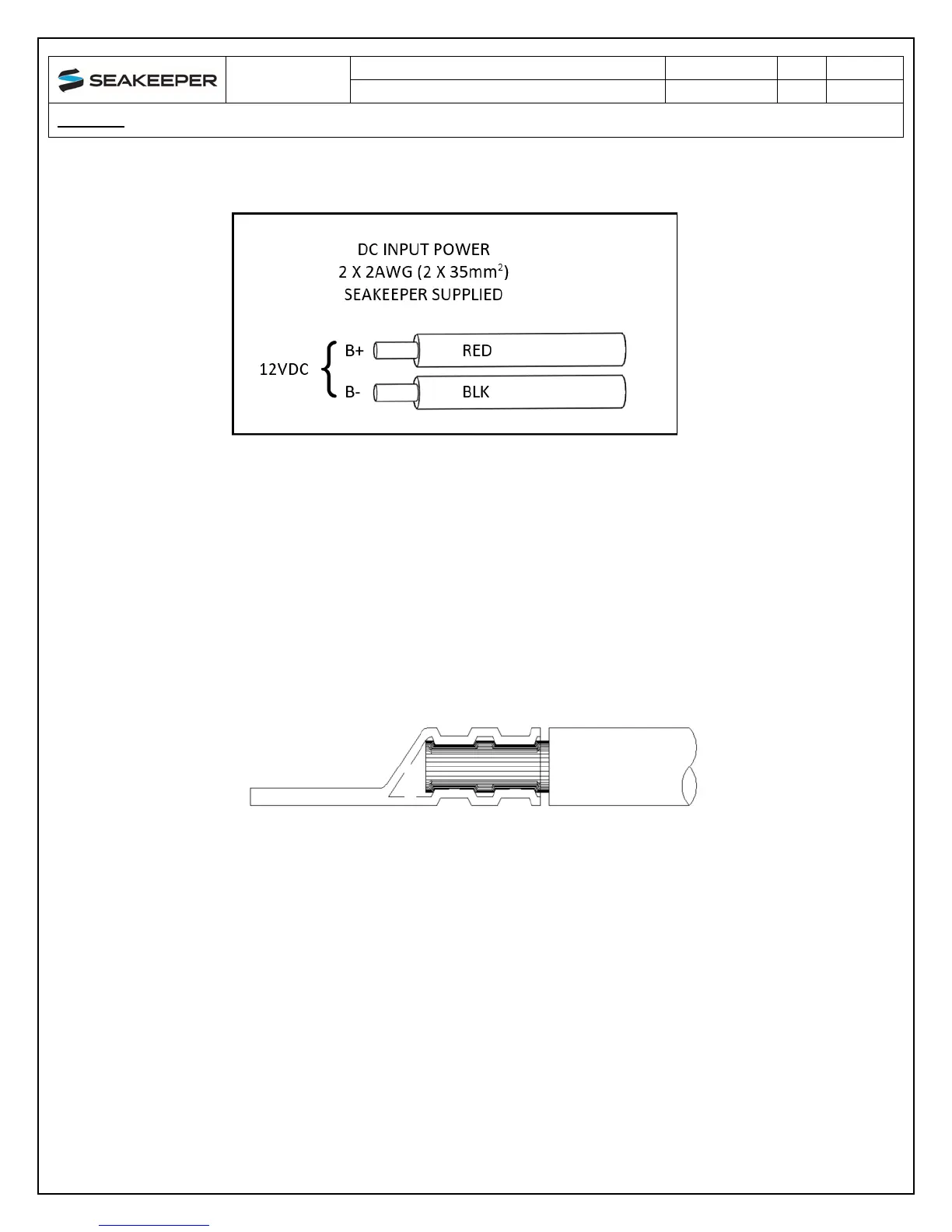

FIGURE 3 – 2 AWG CONDUCTOR CONNECTIONS AT CIRCUIT BREAKER AND BATTERY
vii. If the 2 AWG high current 12V power input conductors or shortened or
lengthened, use heavy-duty eyelet (closed end) terminal such as Molex
19221-0235 and follow instructions on Seakeeper drawing 90377, SK3 Cable
Block Diagram, sheet 2.
viii. The bare wire strands should extend fully into the barrel of the heavy-duty
eyelet and be crimped in two places if possible then sealed with double-wall
heat shrink tubing. Crimp heavy-duty terminals with Quick Cable 4245 Crimp
Tool, Molex 19284-0034 Crimp Tool, or equivalent using manufacturer's
instructions.
FIGURE 4 – 2 AWG CONDUCTOR HEAVY-DUTY EYELET TERMINAL CRIMPS
