Section 2: ELECTRICAL INSTALLATION

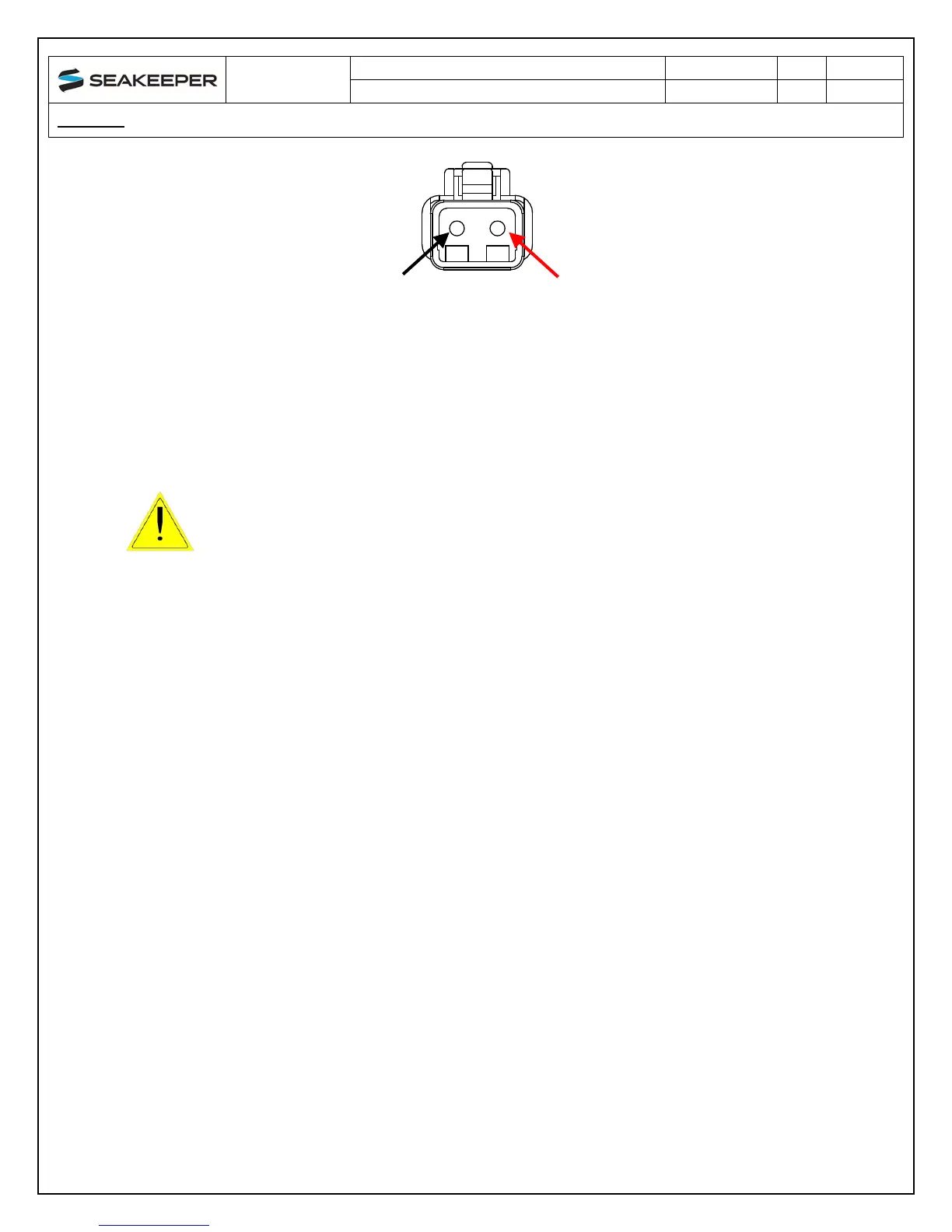

FIGURE 6 – LOW CURRENT 12 VDC POWER INPUT CONNECTOR CONTACT
ASSIGNMENTS (FRONT)
v. Connect CABLE 7 to Low Current 12 VDC power input connector on the
Seakeeper.
When energizing DC power the first time, if display does not power
up immediately then disconnect and inspect connector polarity.
3. DC SEAWATER PUMP 12V POWER OUTPUT
a. DC SEAWATER PUMP 12 VDC POWER SOURCE SPECIFICATIONS
i. Source: 12 VDC from the Seakeeper
ii. Alternate Source: None
iii. Voltage Range: 10 – 16 VDC
iv. Continuous Current: < 3 Amps
v. Overcurrent Protection: 3 Amp (on the Seakeeper)
1. EATON BUSSMANN ATC-3 or equivalent is contained in a
watertight fuse holder shown in Figure 10
b. DC SEAWATER PUMP 12 VDC POWER CONNECTION INSTRUCTIONS
i. Locate CABLE 5 for DC power output to the customer supplied Seawater
Pump, 2 x 16AWG (2 x 1.5 mm
2
CSA) cable, 16 ft (5m) length, Seakeeper
supplied
ii. Pumps rated at 12 VDC, 3 Amps max., Customer-supplied, must be configured
with a Deutsch DT series, 2-pin receptacle to mate with the connector shown in
Figure 7.
1. TE Connectivity (Deutsch) DT04-2P Receptacle, 2-Way, for Male
Pins (qty 1)
2. TE Connectivity (Deutsch) 0460-202-1631 Pin, Solid, Gold-plated,
Size 16, 16-20AWG (qty 2)
3. TE Connectivity (Deutsch) W2P Wedgelock for 2-Way DT
Receptacle (qty 1)
2
(B-, BLACK)
1
(B+, RED)
