INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 3 90378 4 7 of 12
Section 2: ELECTRICAL INSTALLATION
iii. CABLE 5 must be routed and installed in the vessel from the Seakeeper (male
end) to the DC Seawater Pump (female end). (See Figure 7.)

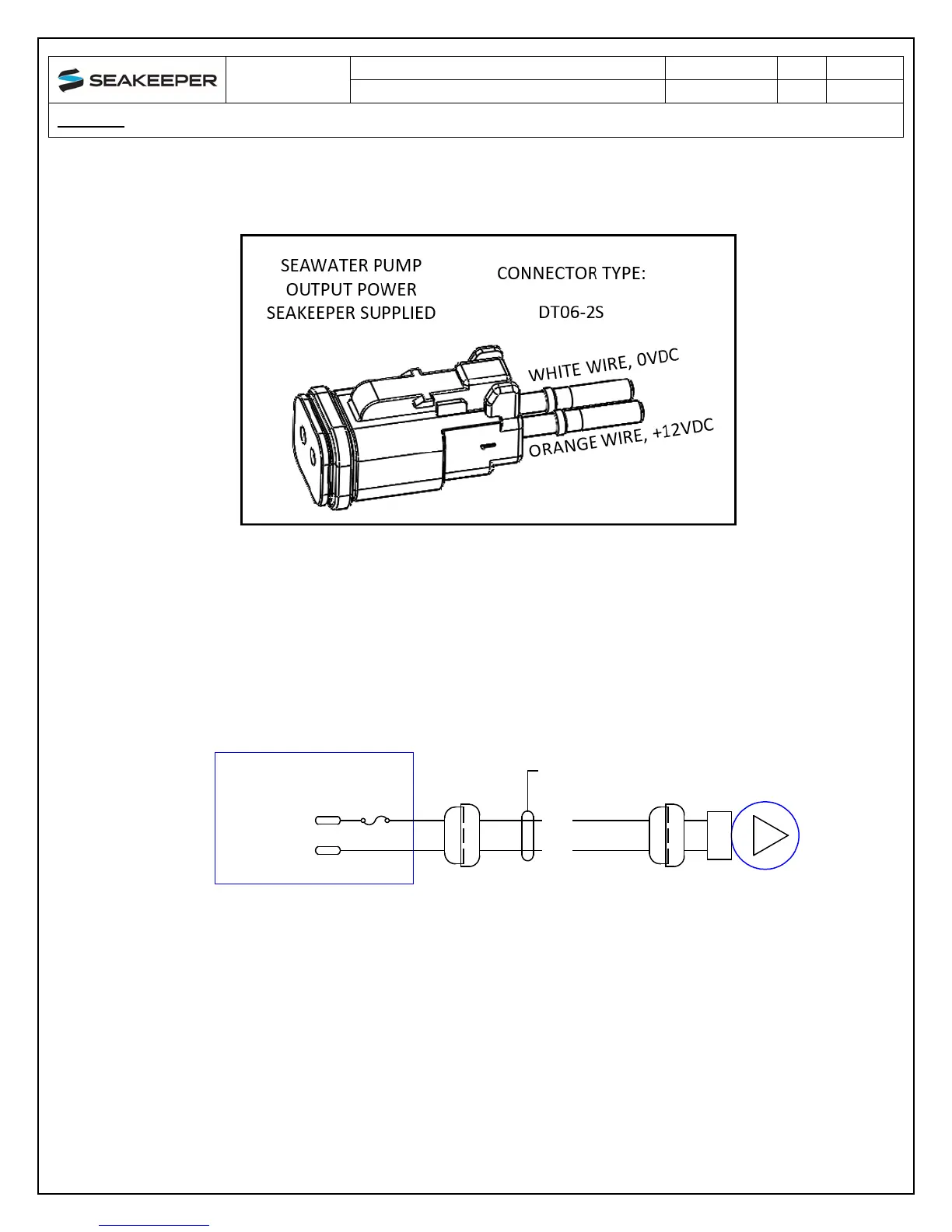

FIGURE 7 – CABLE 5, SEAWATER PUMP DC OUTPUT POWER CABLE
END
iv. Connect the 12VDC wires in CABLE 5 to a 3 Amp maximum, Seawater Pump
(approximately 36W) according to Figure 7.
v. The recommended wiring is shown in Figure 8. Refer to Figure 7 for CABLE 5
wire connections.
FIGURE 8 – RECOMMENDED WIRING FOR SEAWATER PUMPS
RED
BLACK
SEAKEEPER 3
ATC FUSE,
3A
+V
-V2
1
2
1
CABLE 5
2x16AWG or 2x1.5mm
2
SEAKEEPER SUPPLIED
5m LENGTH
SEAWATER PUMP
POWER OUTPUT
12 VDC, 3A MAX
B+
B-
DEUTSCH
DT06-2S
DEUTSCH
DT04-2P
SEAWATER
PUMP,
CUSTOMER
SUPPLIED
2
1
2
1
DEUTSCH
DT06-2S
DEUTSCH
DT04-2P
