Seastar Solutions i7700 Installation Manual

3-10
© 2017 SeaStar Solutions i7700 Installation Supplement, Rev. B
NMEA Gateway Connection
Do not use an existing gateway connected to an existing NMEA
2000 network. The CAN2 network is not NMEA 2000 compliant,
and there is a risk that an otherwise minor failure on the NMEA
2000 bus could interfere with the EST operation.
Connect the NMEA 2000 gateway to the engine bus and to a tee
on the CAN2 network as shown in figure 3-9.
3.6.1

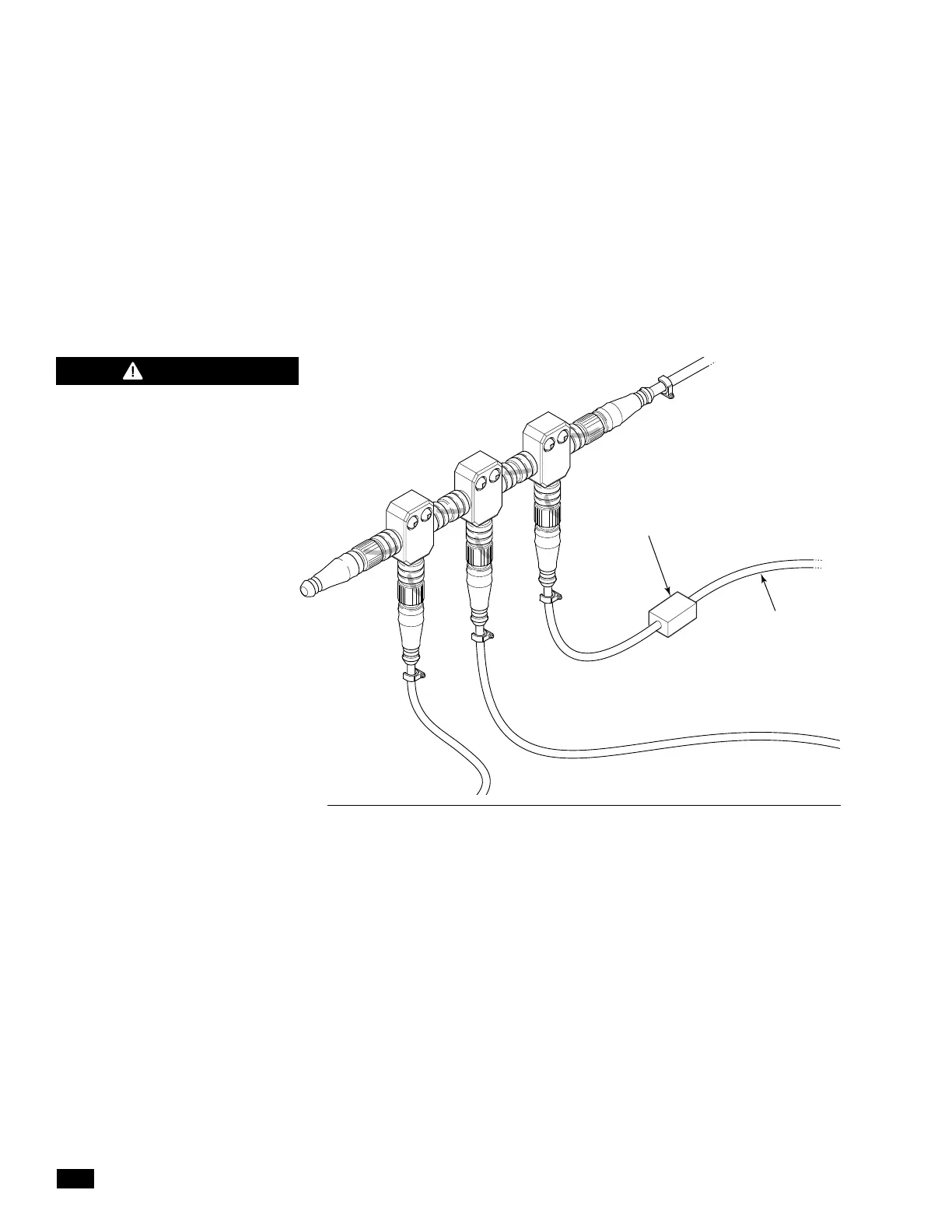

Figure 3-9. NMEA gateway connection.
NMEA 2000 GATEWAY
(NOT INCLUDED IN KIT. SEE ENGINE
RIGGING GUIDE)
TO ENGINE BUS
i6800 CAN2 BUS
WARNING
ALTHOUGH BOTH NETWORKS
USE COMPATIBLE CONNECTORS ,
DO NOT CONNECT THE I7700
NETWORK TO A PUBLIC NMEA
2000 BUS.
