A.1 Control Head – Dual Lever

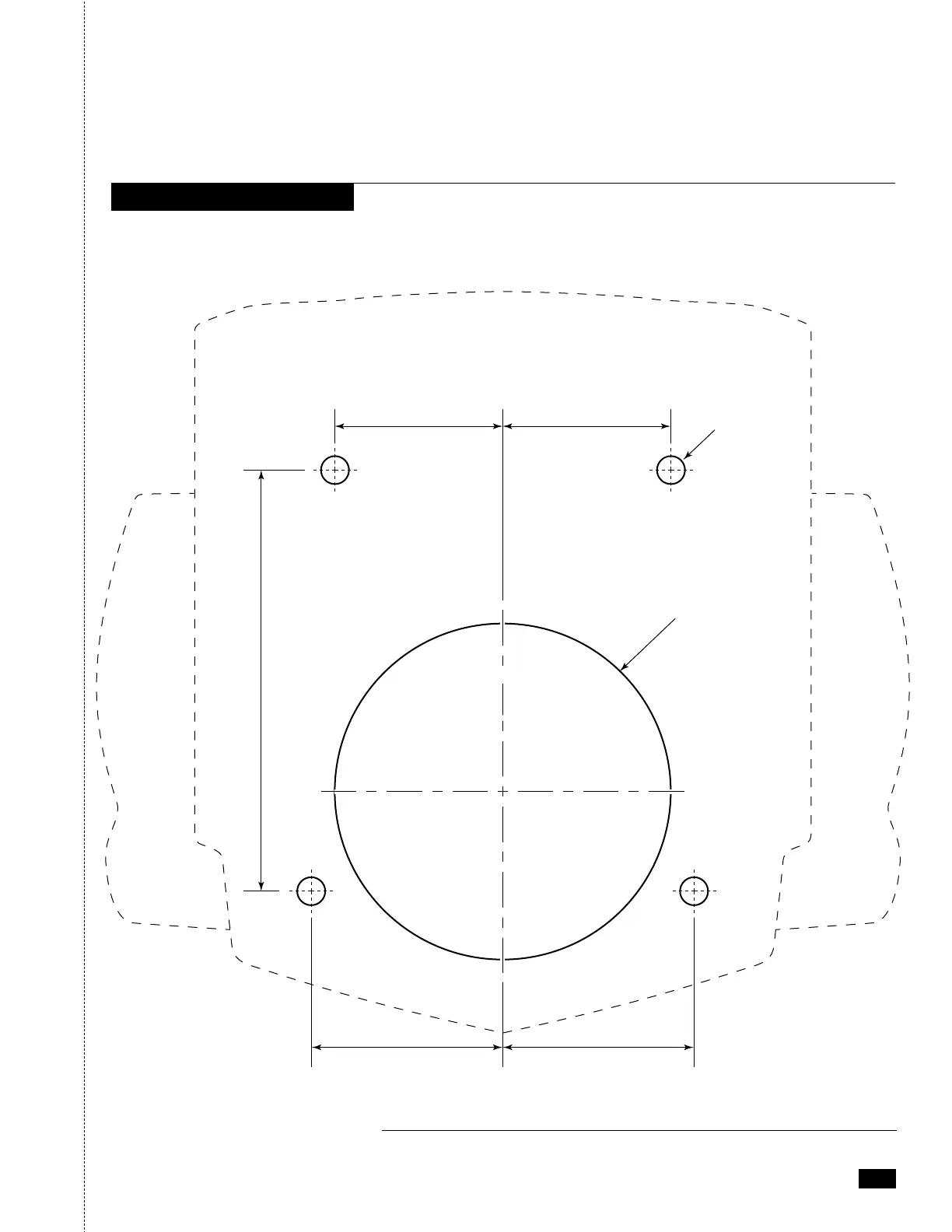

Figure A-1. Control head – Dual lever mounting template.

3.76" (95.5 mm)

3" (76 mm) DIA.

4 x 1/4"

(6.35 mm)

DIA.

1.5"

(38 mm)

1.5"

(38 mm)

1.71"

(43.5 mm)

1.71"

(43.5 mm)

FRONT

If you must photocopy this mounting template for use, check ALL

measurements using a measuring device prior to using as a template.

SCALE = 1:1.

NOTICE

✁

APPENDIX A MOUNTING TEMPLATES
