C-7
© 2017 SeaStar Solutions i7700 Installation Supplement, Rev. B

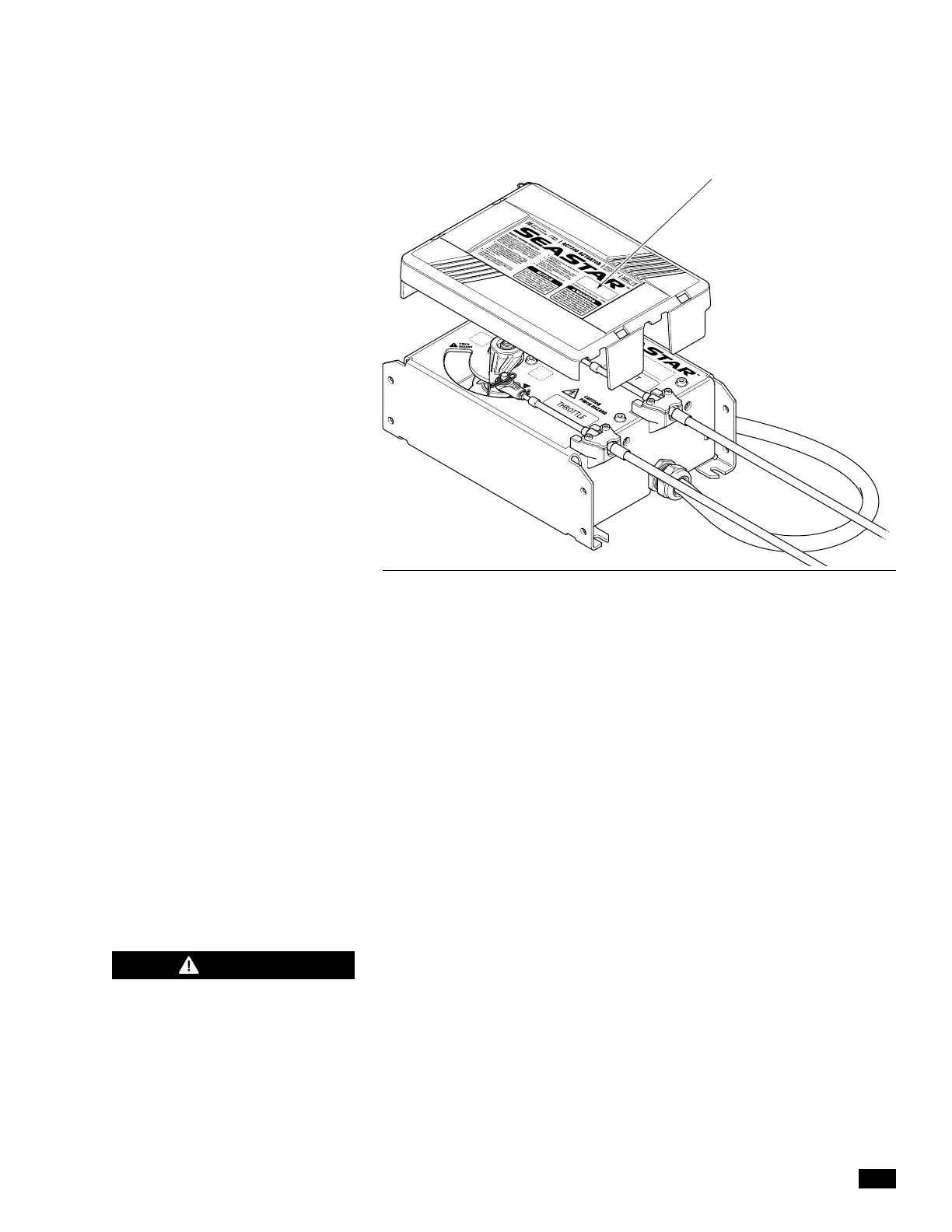

Figure C-5. Actuator cover removal and location of serial number.
SERIAL NUMBER
LOCATION
C.4.2 Step 2 – Cable Installation and Adjustment
Refer to section 4.2.2 for instructions on the mechanical installation
of the cables.
C.4.3 Step 3 – Final Setup and Actuator Adjustment
SHIFT
Successful installation of the shift cables should accomplish the
following goals:
• To have shift cables adjusted so neutral position of actuator
represents neutral position of engine shift linkage.
• To set the stroke length to achieve full engagement of gear yet not
interfere with physical shift linkage limit. (Done in Step 4 below.)
• To have both gears fully disengage when returned to neutral.
Procedure
1. Turn ignition on but do not start engines.
2. Open the port shift actuator in Datalink.
3. With an assistant spinning the prop by hand, put the port engine
into forward gear and verify that the gear engages.
4. Increase the Shift to Forward Throw value 1 mm at a time as
necessary to fully engage the gear. Click Write to save each change.
5. Repeat items 3 and 4 for reverse gear, modifying the Shift to
Reverse Throw value as necessary to fully engage the gear.
DANGER
THIS PROCEDURE REQUIRES
TURNING A PROPELLER BY HAND
WITH THE IGNITION ON. USE
EXTREME CAUTION.
