A-2
© 2017 SeaStar Solutions i7700 Installation Supplement, Rev. B
A.2 Control Head – Single Lever
3" (76 mm) DIA.
3 x 1/4" (6.35 mm) DIA.
1.0"
(25.4 mm)
1.0"
(25.4 mm)
1.6"
(41 mm)
If you must photocopy this mounting template for use, check ALL
measurements using a measuring device prior to using as a template.
SCALE = 1:1.
NOTICE

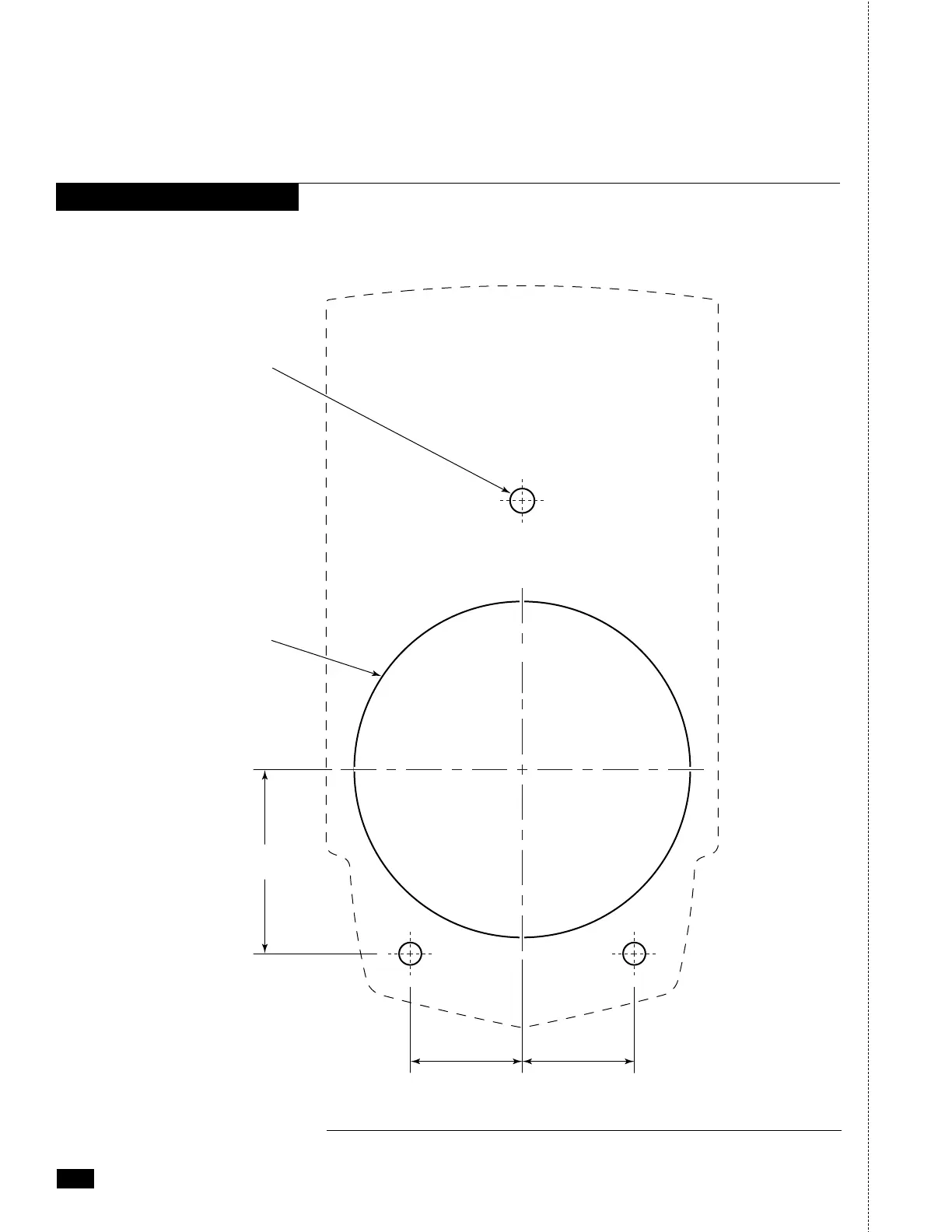

Figure A-2. Control head – Single lever mounting template.
