Seatex DPS 132 Installation Manual, rev. 0 Appendix F – External remote cabinet
73

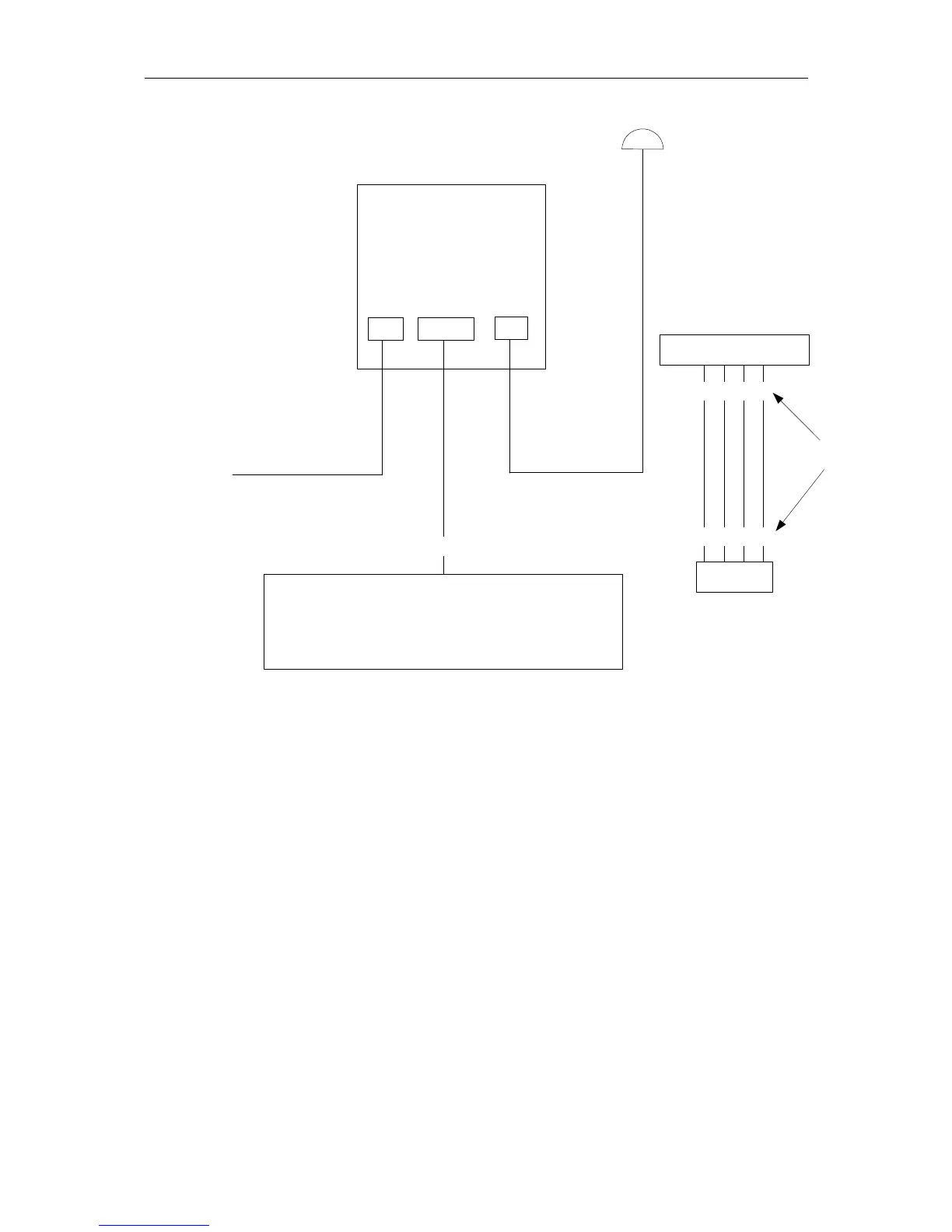

Figure 9 Cabling between DPS and remote cabinet
The data signals from the remote cabinet are connected to the DPS 132 unit via a DB-9
female connector. The panel connectors Com5 through Com10 on the hardware platform may
be used.
Note Since the data from the external remote cabinet is of RS-422 type, a cable with
twisted pairs must be used. TX- and TX+ must be one pair and RX- and RX+
must be one pair.
X2
X2
Com10
8 2 7 3
4 5 6 7
Pin numbers
External remote
cabinet
X1 X2
GPS antenna
DPS
230 V AC
Com10
C3
Power
Data
GPS
