4. COMMISSIONING and start-up
4.1 General description
SYSTEM A2 has a startup procedure to enter all the necessary parameters for basic operation by entering a few
parameter datas about the installation.
Before the startup procedure, the controller must be properly installed, with the correct load cell, correct electrical
and mechanical installation. The scale must be empty, since the empty scale value is recorded during setup.
Start up is entered from the menusystem by pushing frontkey D, and scrolling down to menu
“NEW STARTUP ->”. When the controller is powered up for the first time, it will automatically enter the set up
procedure, if no previous installation parameters are available.
The startup procedure will step through and prompt you for all the necessary data and perform an initial zero and
span adjustment. Enter/Change of parameters is described below:
If a change to a previously entered parameter is required, it may be accessed by stepping back through the
parameters, using the D (Up) key.
When a value is changed, keeping the key pressed will change the value with increasing speed. To reduce the
speed, release the key temporarily. Faster speed is achieved by pressing key A (Esc) simultaneously with D (Up)
or C (Down) key.
18-08-16 S44-H15E 4-1
S-E-G SYSTEM A2-H15 INSTRUCTION

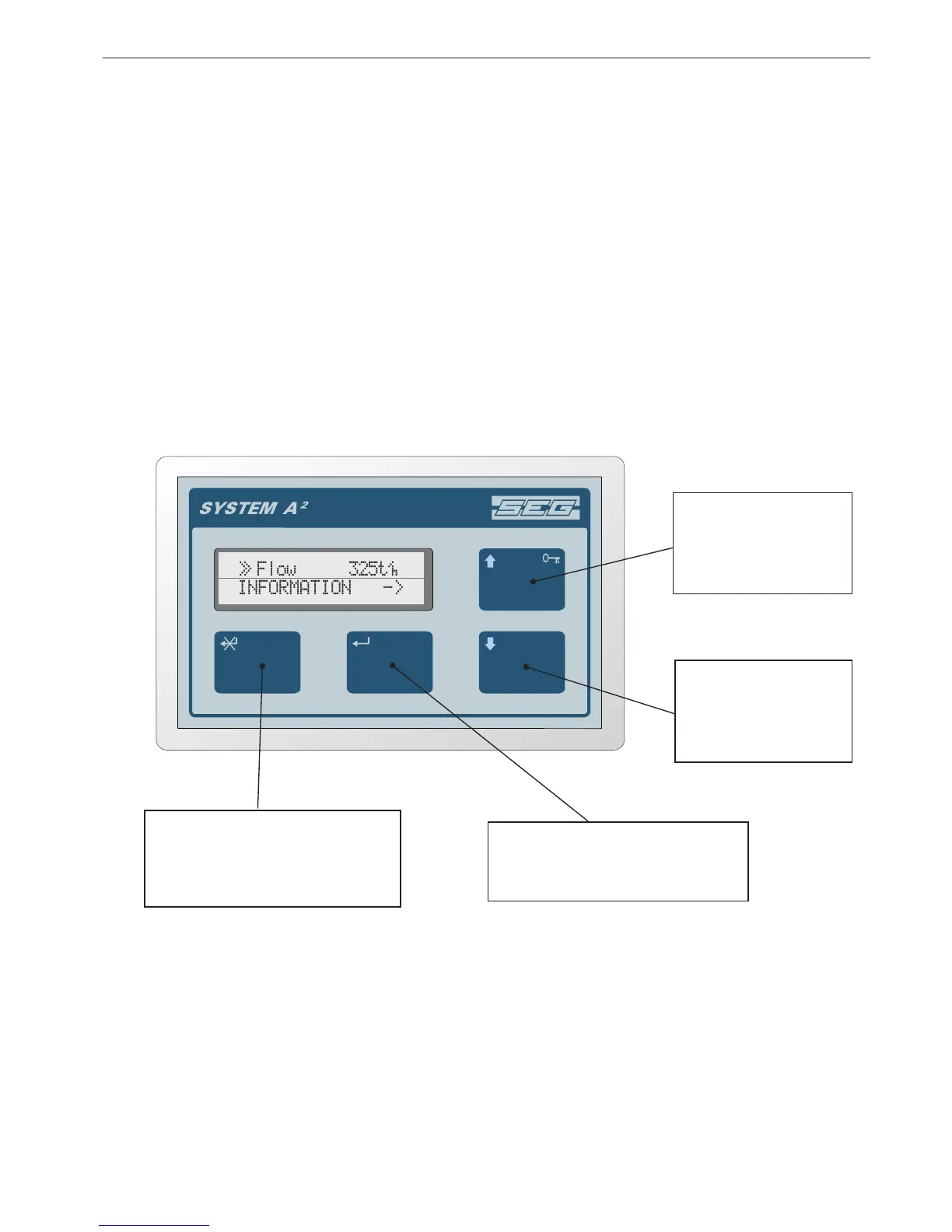

Front panel, menu mode:
C Down
- Scroll trough menus
- Changing values
DUp
- Enter menusystem
- Scroll trough menus
- Changing values
A Esc / Undo
- Undo value changes
- Exit to previous menu
- Faster changing with key C and D
B Enter
- Enter into editing mode.
- Accept values or selections.
