2. MECHANICAL INSTALLATION
2.1 Mechanical installation
When choosing a location for installing the controller, care should be given to avoid an unsuitable environment
even though the enclosure front panel conforms to NEMA 4 (IEC Class IP 65) requirements.
For outdoor installations, protection from weather elements must be provided. The controller is available in water
proof enclosures for this purpose.
The installation place should be situated in a shady area that is never exposed to direct sunlight or rain.
If the mounting surface is damp or wet, spacers (approximately 12 mm thick) should be placed between the
mounting plate and the mounting surface. For dimensions, refer to figure 2.1.
18-08-16 S44-H15E 2-1
S-E-G SYSTEM A2-H15 INSTRUCTION
Panel mount, type -P
weight: 0,5kg
Field enclosure type -W
weight: 3,0kg
Field enclosure type -V
weight: 2,5kg
150
75
190
222
162
B
A
C
D
170
4xØ6
258
85
190
222
270
B
A
C
D
278
4xØ6
B
A
C
D
159
105
29
6xØ3,5
45
45
72 72
136
81
21
CUTOUT:

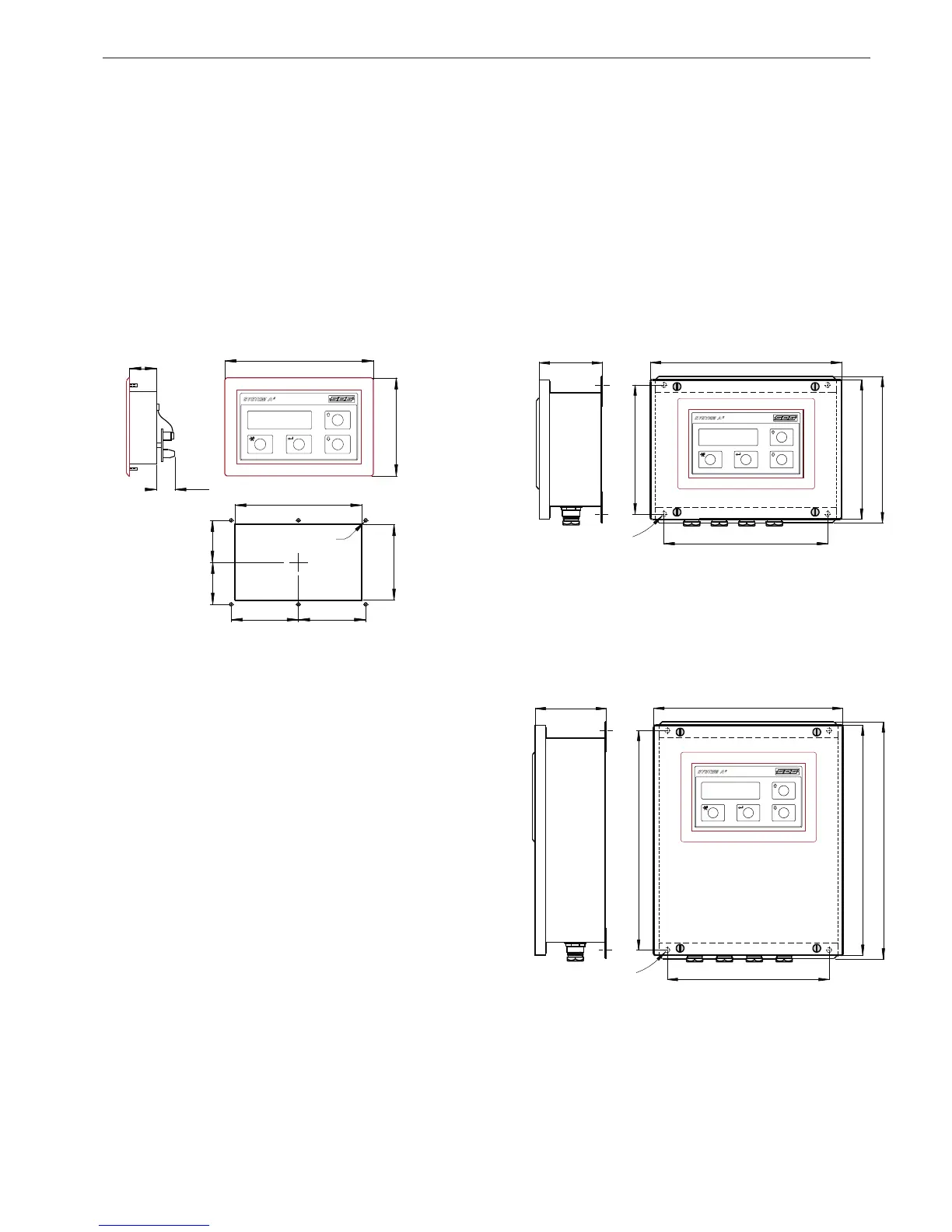

Figure 2.1 Dimensions
