Seg System A2 H15 User Manual

3.2.1 Optional 90 - 230Vac/24Vdc module
An optional power module (PW-24) for 90-230Vac input with 24Vdc output, is available that fits inside all wall
mounting enclosure versions.
With the module installed, connection to a 115/230Vac mains power line is possible.

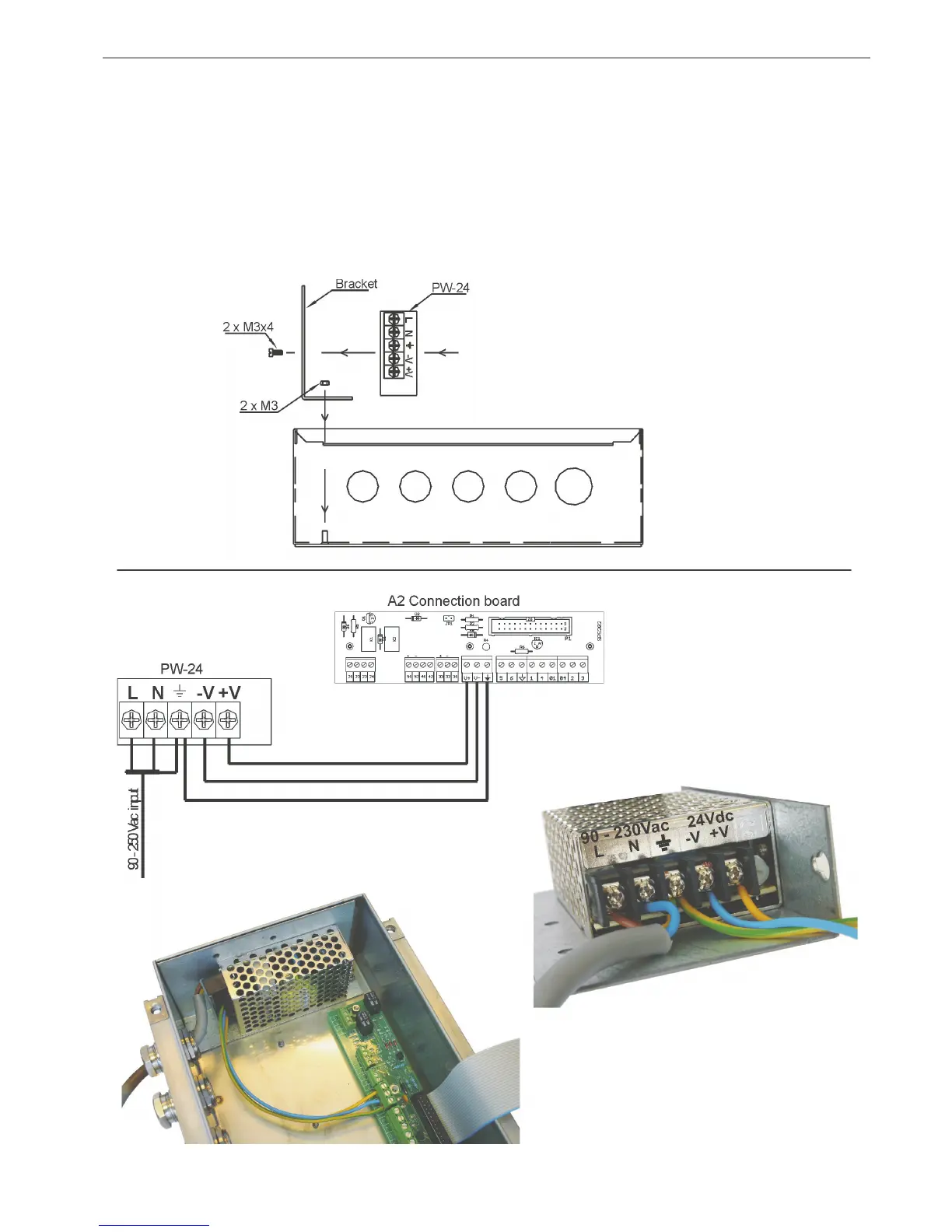

The module is being shipped as a separate item, and installation and connection is shown below.
The power module is attached to the enclosed bracket with 2 pcs M3x4 screws. The electrical connection is
preferably done before installation of the unit into the enclosure, for easier access of the screw terminals.The 2
securing M3 lock nuts may be turned 1/2 a turn on the threded pins before attaching the unit, as the holes are cut
out as "keyholes" to simplify attachment.
18-08-16 S44-H15E 3-2
S-E-G SYSTEM A2-H15 INSTRUCTION
