5.1.2 Display indications, operation mode:
5.2 Error indications
The following error messages may appear on the LCD-display lower row.
To clear the error message if the fault does no longer exist: Push frontkey “C” (Toggle display indication)
> > SIGNAL ERROR< < a) The input load cell signal is negative (-).
Check load cell, wire connections etc.
b) Belt position sensor signal missing for 4 belt revolutions.
Check sensor condition, replace if necessary and enable a new “SysZero”
from the menu system..
> > OVERLOAD < < The input load cell signal exceeds 3mV/V.
Check load cell, wire connections etc.
>CHANGE BATTERY< Exchange backup battery.
Contact your local S-E-G representative for further information.
This message is only indicated once for each power-up, and may be cleared
according to the description above.
18-08-16 S44-H15E 5-2
S-E-G SYSTEM A2-H15 INSTRUCTION
Symbol Description
Ñ Belt stopped, not totalising.
ƒ Belt running, load on belt / flowrate indication, totalising.
¥ Belt running empty, totalising, wait time before empty indication / start of auto tare if selected.
Ÿ Belt running empty, not totalising.
… Belt running empty, not totalising, auto tare out in progress.
¤ Belt running empty, not totalising, auto tare out successfully finished.
‰ System tare out with belt profile recording in progress.

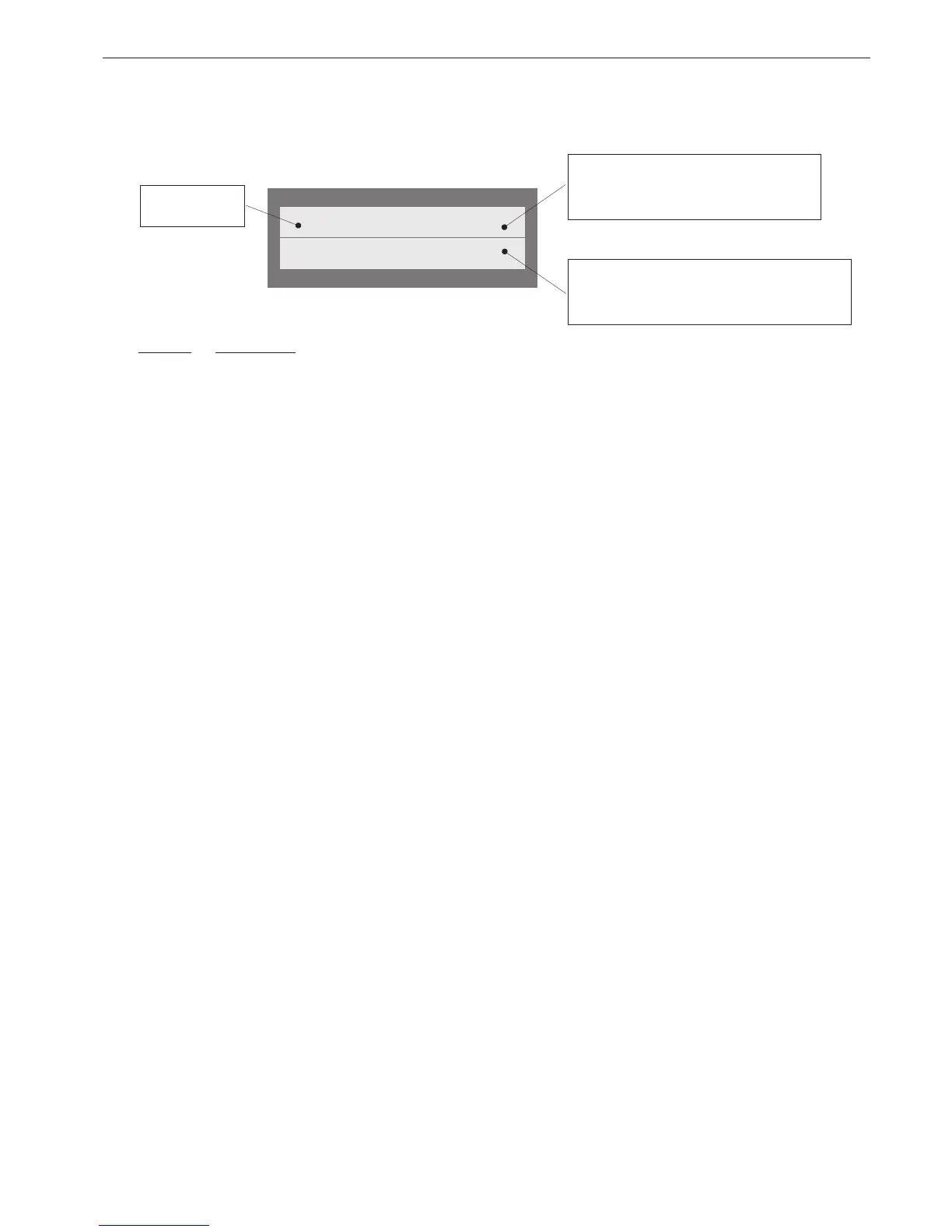

Activity
Symbol
Lower row indication.
Toggles between: Total, Sub1Tot,
Sub2Tot, Flow and “Zero I Print”
Upper row indication.
Selectable between: Total,
Sub1Tot, Sub2Tot and Flowrate
