Sega Future Tone ProjectDIVA Arcade - Switch Unit Components

38

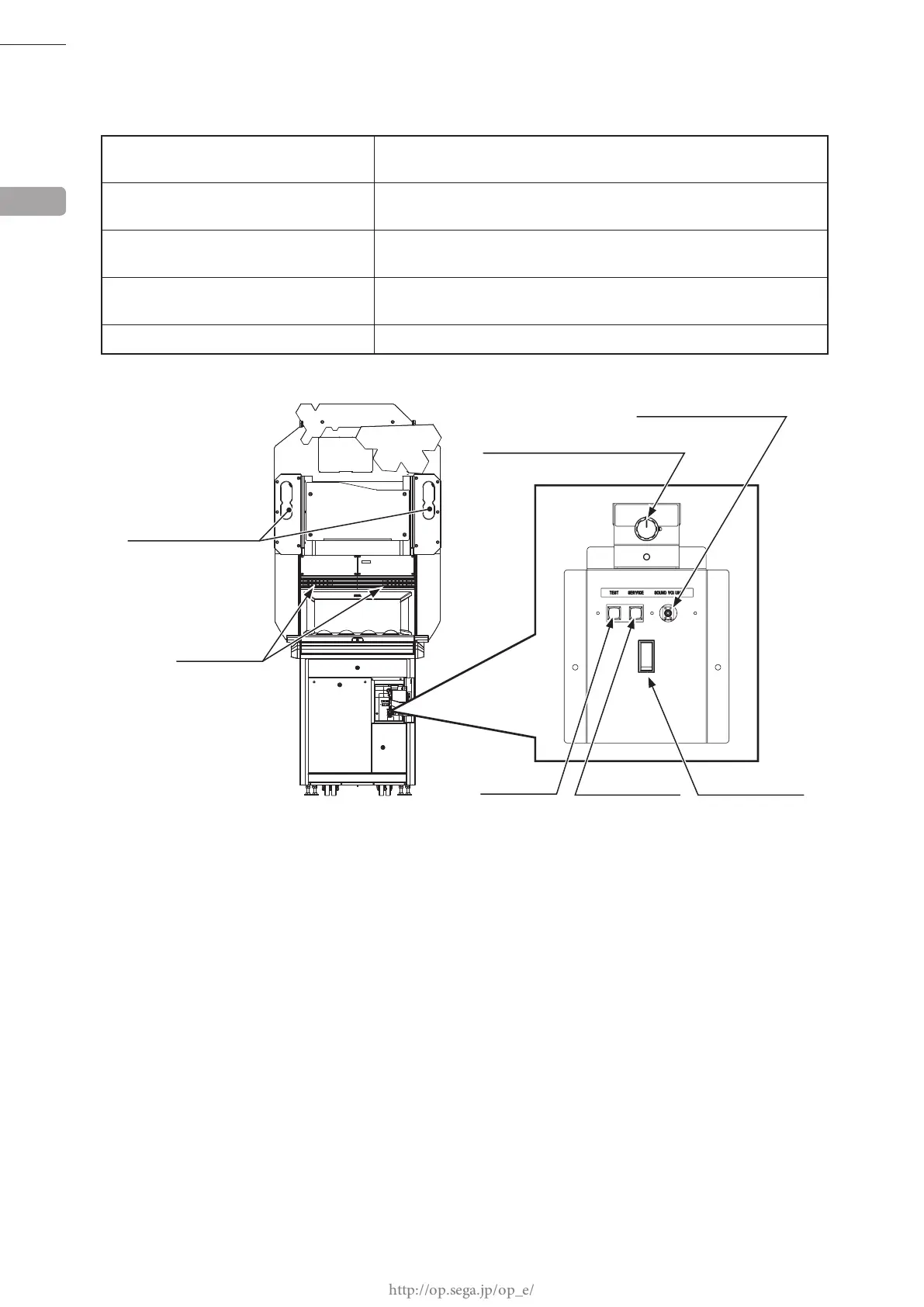

TEST MODE CONTROLS
Open the selector door to nd the switch unit. The buttons function as follows:
TEST Button
(TEST)
Establishes TEST MODE.
Becomes the button to conrm selections in TEST MODE.
SERVICE Button
(SERVICE)
Makes it possible to enter credits for service without increasing the
coin meter. Becomes the button to select items in TEST MODE.
UPPER SPEAKER VOLUME Switch
(UPPER SPEAKER VOLUME)
This is the volume knob for UPPER SPEAKER L/R.
SOUND VOLUME Switch
(SOUND VOLUME)
This is the volume knob for SPEAKER L/R.
Sub-Power Switch Turns the power ON/OFF.
2
UPPER SPEAKER L/R
SPEAKER L/R
UPPER SPEAKER VOLUME Switch
SOUND VOLUME Switch
Sub-Power Switch
TEST Button
SERVICE Button
UPPER SPEAKER L/R
SPEAKER L/R
