GAME TEST MODE
MENU ITEMS
COIN LOCK OUT Normal if coins are returned through the coin return slot when this is set to
OFF, and coins are inserted when set to ON.
LEFT PARTITION LED RED
(GREEN, BLUE)
Normal if side lamp L turns red (green, blue) when set to ON, turns off
when set to OFF.
RIGHT PARTITION LED RED
(GREEN, BLUE)
Normal if side lamp R turns red (green, blue) when set to ON, turns off
when set to OFF.
BUTTON LED TRIANGLE Normal if
△
button lamp turns on when set to ON, turns off when set to
OFF.
BUTTON LED SQUARE Normal if
□
button lamp turns on when set to ON, turns off when set to
OFF.
BUTTON LED CROSS Normal if
×
button lamp turns on when set to ON, turns off when set to
OFF.
BUTTON LED CIRCLE Normal if
○
button lamp turns on when set to ON, turns off when set to
OFF.
TOUCH SLIDER LED RED
(GREEN, BLUE)
Normal if touch slider lamp turns red (green, blue) when set to ON, turns off
when set to OFF.
3
4

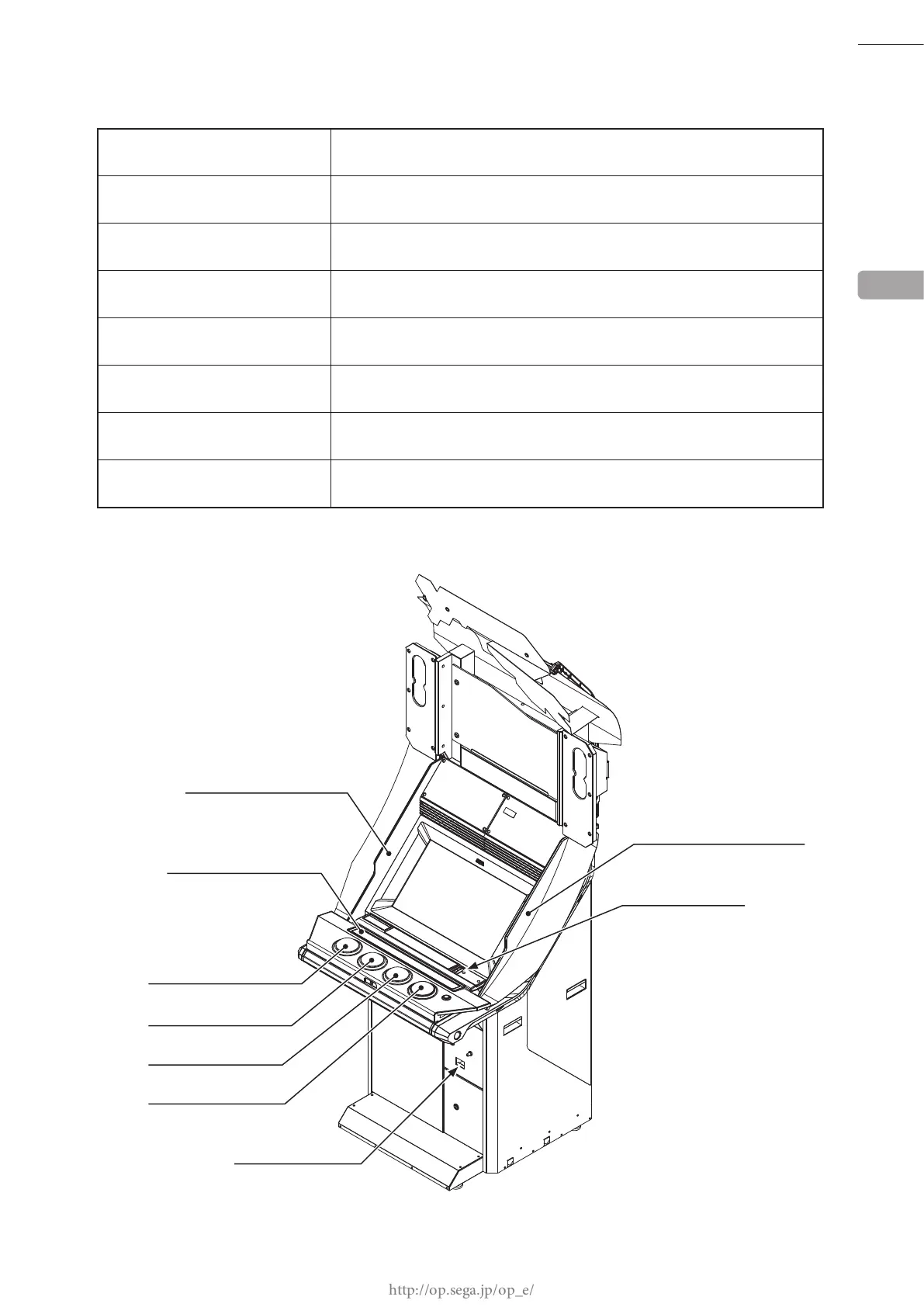

COIN RETURN SLOT
LEFT PARTITION LED RED
(GREEN, BLUE)
TOUCH SLIDER LED RED
(GREEN, BLUE)
RIGHT PARTITION LED RED
(GREEN, BLUE)
COIN INSERT SLOT
BUTTON LED TRIANGLE
BUTTON LED SQUARE
BUTTON LED CROSS
BUTTON LED CIRCLE
