GAME BOARD (LINDBERGH RED EX)
17-1 FIG. 07
17-1 FIG. 08

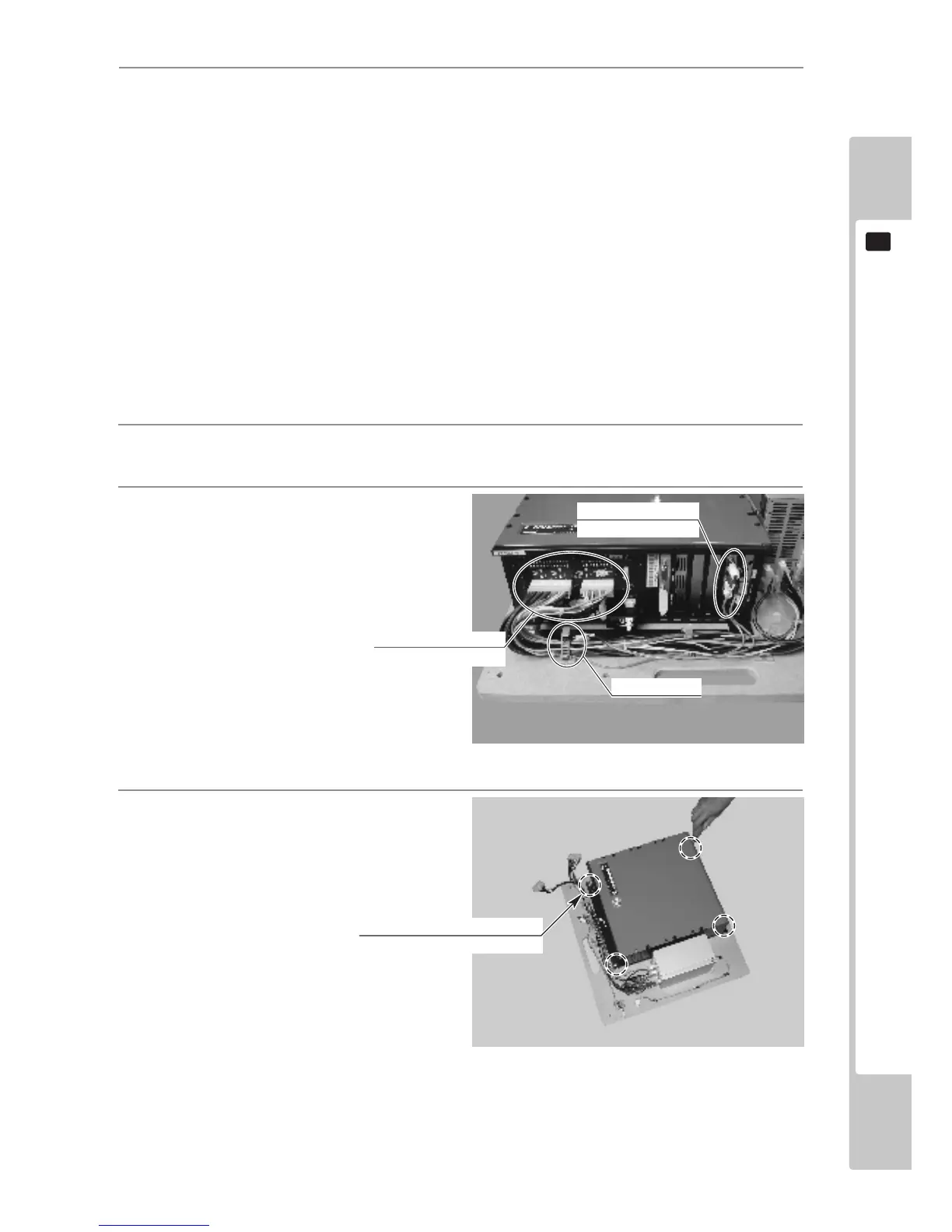

Detach connectors
MOLEX24P, MOLEX18P
Release clamp
SCREW (4)
M4 x 16, w/at & spring washers
5
Pull lindbergh from the base. Make sure you do not damage the wires when doing so.
6
Place the base on a at surface.
Detach connectors
AUDIO L/R
7
Release the cord clamps and detach the 4
connectors.
8
Remove the 4 screws and remove the
LINDBERGH RED EX.
